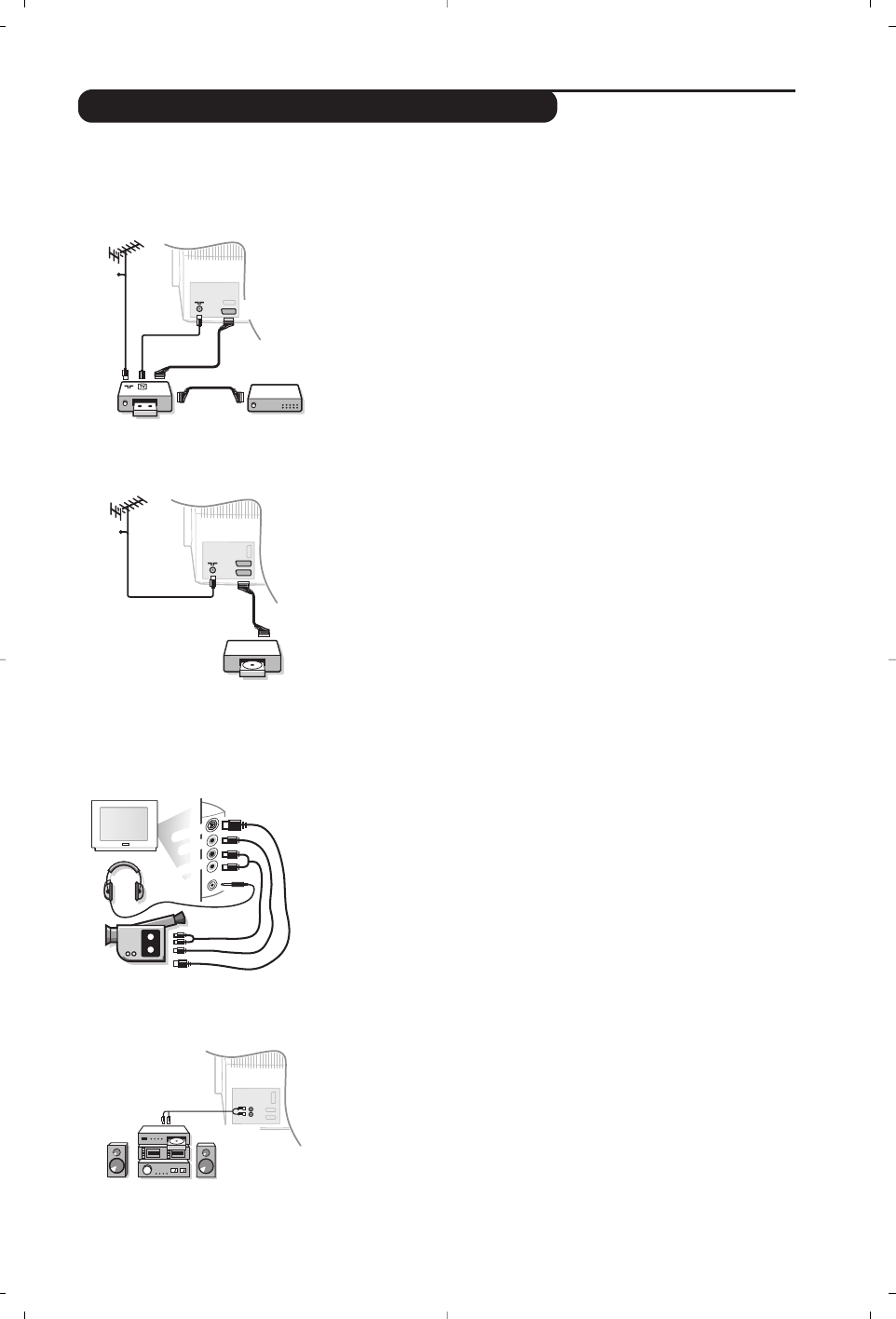

Connecting peripheral equipment
Carry out the connections shown opposite, using a good quality
euroconnector cable.
If your video recorder does not have a euroconnector socket, the only
connection possible is via the aerial cable.You will therefore need to
tune in your video recorder's test signal and assign it programme
number 0 (refer to manual store, p. 5).
To reproduce the video recorder picture, press
0
.
Video recorder with decoder
Connect the decoder to the second euroconnector socket of
the video recorder.You will then be able to record scrambled
transmissions.
The television has 2 external sockets situated at the back of the set (EXT1 and EXT2).
The EXT1 socket has audio, CVBS/RGB inputs and audio, CVBS outputs.
The EXT2 socket has audio, CVBS/S-VHS inputs and audio, CVBS outputs.
Video recorder
Satellite receiver, decoder, CDV, games, etc.
Carry out the connections shown opposite.
To optimise picture quality, connect the equipment which
produces the RGB signals (digital decoder, games, etc.) to EXT1,
and the equipment which produces the S-VHS signals (S-VHS and
Hi-8 video recorders, certain DVD drives) to EXT2 and all other
equipment to either EXT1 or EXT2.
To select connected equipment
Press the
µ
key to select
EXT1
,
EXT2
/
S-VHS2
(S-VHS signals
from the EXT2 socket) and
AV/S-VHS
for connections on the
front panel.
Most equipment (decoder, video recorder) carries out the switching
itself.
Make the connections as shown opposite.
With the
µ
key, select
AV/S-VHS
.
For a monophonic device, connect the audio signal to the
AUDIO L input. Use the
e
key to reproduce the sound on the left
and right speakers of the TV set.
Headphones
When headphones are connected, the sound on the TV set will be
cut.The
@
P
#
keys are used to adjust the volume level.
The headphone impedance must be between 32 and 600 Ohms.
Other equipment
Side connections
Amplifier
(only available on certain versions)
VCR
CABLE
EXT 2
CABLE
AUDIO
To connect to a hi-fi system, use an audio connection cable and
connect the “L” and “R” outputs on the TV set to the “AUDIO
IN” “L” and “R” input on your hi-fi amplifier.
