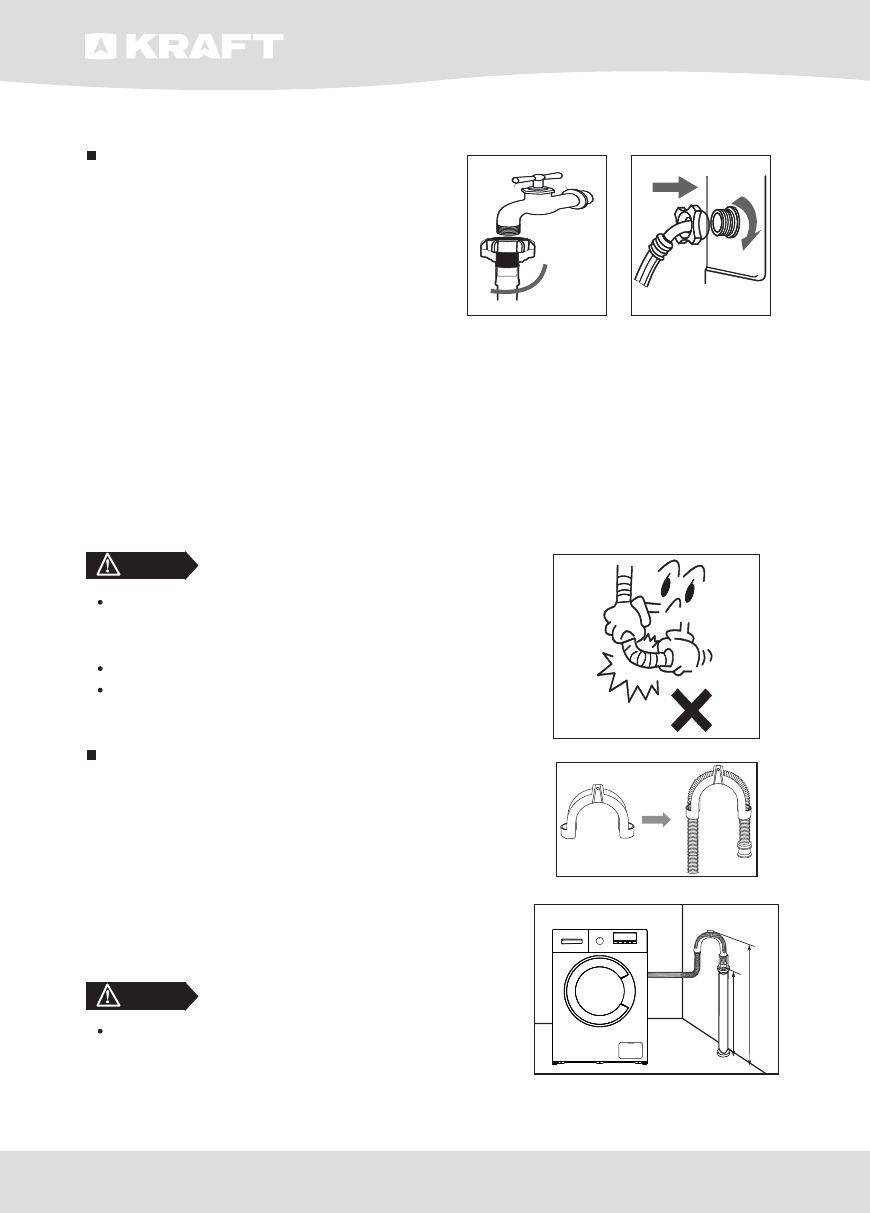

Install Washing Machine

Connect the inlet hose

1.Connect the inlet hose to tap and

   fasten it anticlockwise.

2.Connect the other end of the inlet hose to the inlet valve at the backside

   of the washing machine and fasten the hose tightly clockwise.

   when there is a inlet at the back of the machine,it must be connected to

   a cold water supply.If there are two inlet valve,one is connected to a

   cold water supply and the other is connected to a hot water supply.

   Follow the indication of the picture below to complete the connection.

inlet valve for cold water

inlet hose for cold water

inlet hose for hot  water with a red side

inlet valve for hot  water with a red grid

If there is any leakage with hose after

the connection,then repeat the steps to

connect inlet hose.

Do not bend the hose.

Check for inlet hose connection carefully

before using the washer each time.

Connect the drain hose

The drain hose shall be placed at a

height of 65-100cm above the floor,

otherwise,it can cause poor drainage

You can use the supplied drain hose

support bracket to loop the drain hose

down into the wall,standpipe or laundry

tub.

Take care to ensure all hose connections

are tight.

The end of the drain hose cannot be

immersed in water for the washer to work

properly.

NOTE

NOTE
