Water reservoir, which can be filled with water for one washing cycle, enables the machine washing
of the laundry in the environment without running water from a water supply, or where the water
supply is somehow hindered.
(

Skip the chapter Water inlet connection  - Instructions for Use

).

1. Safety overflow pipe

 (only in models with a water supply valve)

Place the safety overflow pipe, which you have previously assembled, on the tank wall (see figures
1, 2, and 3).
(If this option is not available in your washing machine, skip items 1 and 2.)
Install the safety overflow pipe from the outer side and attach it from the inside of the tank with
screws (figures 3 and 4). Connect the drain hose (A) to the safety overflow pipe (figure 3) (supplied
in the bag). Connect the end of the drain hose (A) to a drain (washbasin, bathtub etc.) which should
be lower than the safety overflow pipe.

2. Water supply valve

 (only in some models)

Install the water supply valve, supplied in the cardboard box, on the tank (figure 5, figure 6, figure
7). The water supply valve will automatically shut off the water supply when the water level required
for one washing cycle is reached in the tank. The valve should be installed vertically onto the tank
wall (figure 8). Attach the supplied gasket with a filter sieve and the 3/8" gasket to the water supply
hose (F) and carefully connect the water hose to the water supply valve (E) from the outer side (see
general instruction manual, section Connecting the Water Supply).
If the washing machine will be out of use for a longer period of time, close the water supply.
Do not feed the washing machine discharge hose into the tank.

The water supply valve will operate in the range from a minimum of 0.1 bar to a maximum of 10

bar.

3. Connection to the water tank

Inlet pump coupling (A) is located in the bottom left corner at the back panel of the washing
machine. Find a rubber connection hose used to couple the machine to the tank in the drum of the
machine. Slip the wide end of the hose onto the pump coupling in such way that it is horizontal
towards the water tank, and fix it with the attached wire bracket (A/1).
Place the water tank adjacent to the washing machine, and insert the free end of the hose into the
tank opening (B), so that the metal part fits into the groove at the end of the hose (B/1).

Insert the attached plastic filter into the opening of the hose from the inside of the reservoir. (B/1).

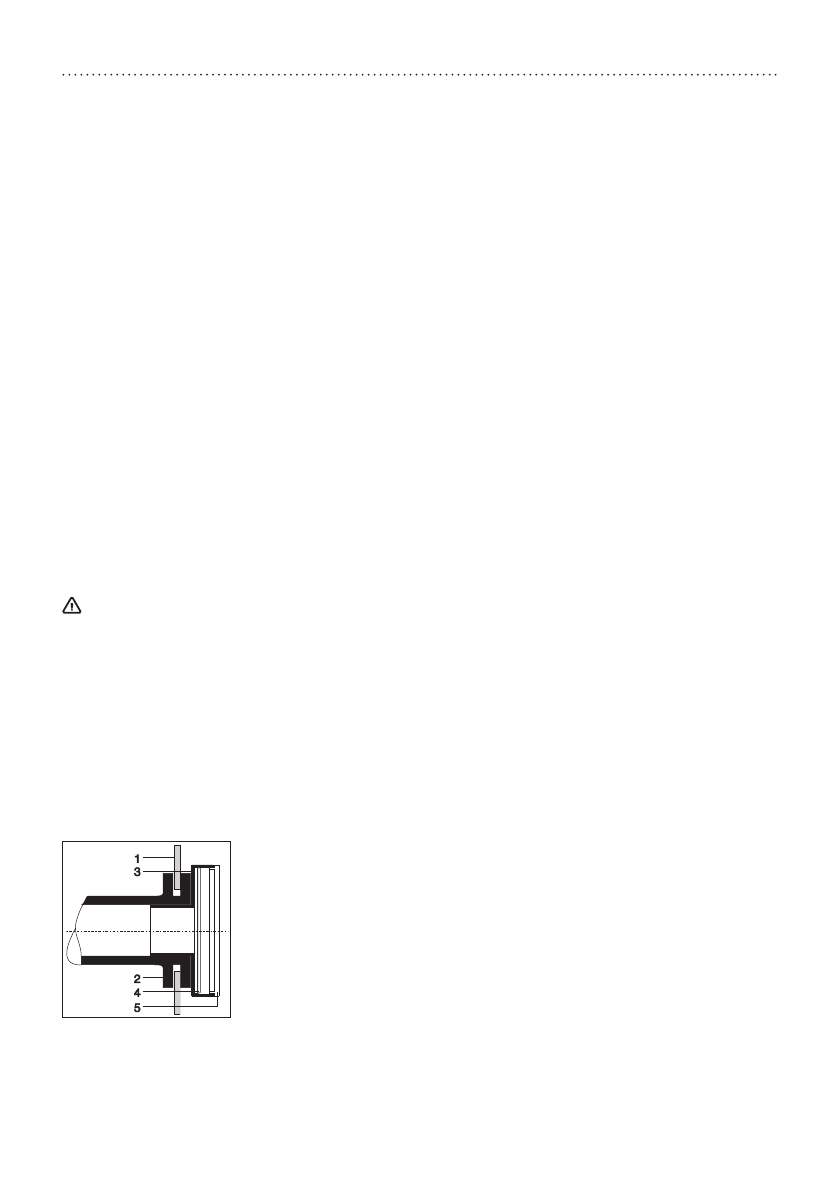

B/1

1. Water reservoir

2. Rubber hose

3. Filter cabinet

4. Filter strainer

5. Filter cover

The filer prevents hard particles from water (e.g. sand) to enter the machine and damage it. When
fitting the hose pay attention so that it does not fall out from the opening of the reservoir.
