User Guide
E

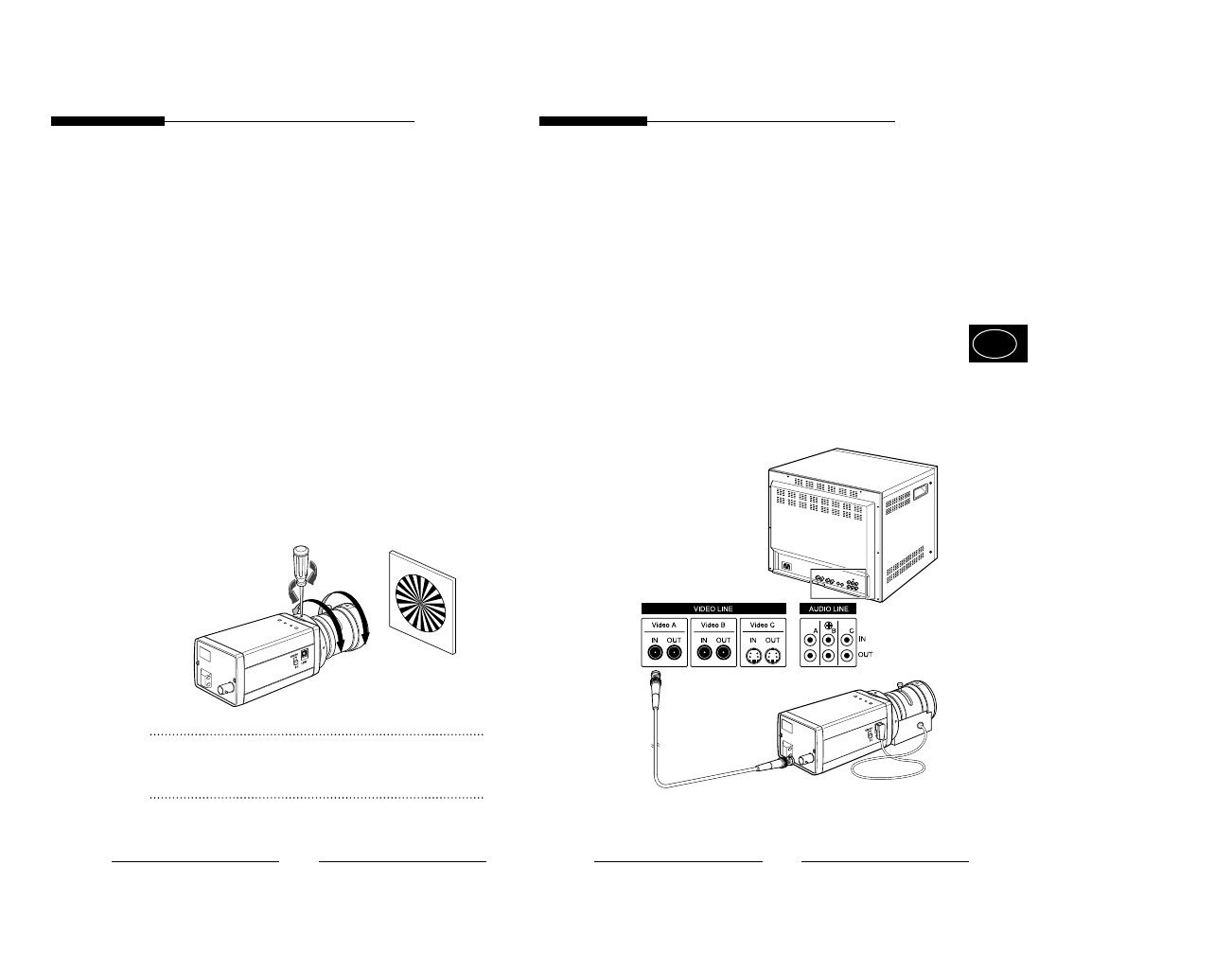

Connecting Cable
After mounting the lens and setting the Lens Selection
Switch, connect the prepared cable to each terminal of the
camera.
First, connect one end of the BNC cable to the Video
Output Terminal (VIDEO OUT) of the camera.
Then connect the other end of the BNC cable to the
Video Input Terminal of the monitor.
Video In Terminal on the rear of the monitor
BNC Cable
Video Out Terminal
(VIDEO OUT)
User Guide
10
The following describes how to adjust the Back Focus when
using a Zoom lens.
Lightly loosen the screw fixing the Back Focus
Adjustment Ring using a screwdriver.
Image a vivid subject (with check patterns) at a distance
of 3~5m away and adjust the zoom of the lens to TELE
as far as it goes. Then adjust the Focus Ring of the
lens to obtain the clearest image of the subject.
Adjust the zoom of the lens to WIDE as far as it goes.
Then turn the Back Focus Ring of the camera to obtain
the clearest image of the subject.
Repeat no.
&
2~3 times to exactly coincide the
zoom focus from TELE and with that from WIDE.
Fasten the screw fixing the Back Focus Adjustment
Ring.
Note:
Turning the Back Focus Adjustment Ring to the "C" direction
beyond the adjustable range makes a sound at the limit.
