6

RODCRAFT PNEUMATIC TOOLS

EN

Dear customer!

Rodcraft Pneumatic Tools thanks you for the purchase of one of our products and invites you to reading this user manual.

All necessary information for an adequate use of the purchased equipment is contained herein: it is advisable to read everything from cover to cover and to

observe the references.

Please keep the user manual in good order. The contents of this manual may change without prior notice and without further obligations, so that changes

and improvements can be inserted into already distributed copies.

It is our aim to manufacture products, with which you can work as safe and efficient as possible. Most important for your safety are your caution and

judgment in handling this product and other tools. These safety precautions contain some of the important sources of danger; however, they cannot cover all

possible risks.

Without prior written permission of the manufacturer copying or translation of any part of this manual is prohibited.

1. Technical Data

2. Application and Function

• Power tool equipped with 3/8“ or 1/2” chuck for use with various drill bits for drilling holes. No other use permitted. For professional use only.
• Please read the product safety information carefully!

max pressure 6.3 bar (90 psi)

a

hd

:Vibration level,

k

 Uncertainty ;

L

pA

Sound pressure level dB(A),

K

pA

=

K

WA

= 3 dB Uncertainty.

Declaration of noise

(ISO 15744)

 and vibration emission

(ISO 28927-9)

All values are current as of the date of this publication. For the latest information please visit rodcraft.com.

These declared values were obtained by laboratory type testing in accordance with the stated standards and are suitable for comparison with the declared

values of other tools tested in accordance with the same standards. These declared values are not adequate for use in risk assessments and values measured

in individual work places may be higher. The actual exposure values and risk of harm experienced by an individual user are unique and depend upon the way

the user works, the workpiece and the workstation design, as well upon the exposure time and the physical condition of the user.

We,

RODCRAFT PNEUMATIC TOOLS , cannot be held liable for the consequences of using the declared values, instead of values reflecting the actual expo

-

sure, in an individual risk assessment in a work place situation over which we have no control.

This tool may cause hand-arm vibration syndrome if its use is not adequately managed. An EU guide to managing hand-arm vibration can be found at www.

pneurop.eu/uploads/documents/pdf/PN3-02-NV_Declaration_info_sheet_0111.pdf

We recommend a programme of health surveillance to detect early symptoms which may relate to noise or vibration exposure, so that management procedures

can be modified to help prevent future impairment.

Model

Collet

Power

Speed

Weight

Inner Hose

Dia.

Dimension

axb

Air Consumtion

Average – con-

tinuous

Air Inlet

Soundpres-

sure

Vibrations

[mm]

[mm]

[min-1]

[kg]

[mm]

[mm]

[l/min]

[inch]

dB(A)

a

hd

[

m/s²

]

  k [

m/s²

]

RC4107

1-10

380

2200

0.9

8

220x100x50

480

650

1/4“ FT

81.3

2.16

1.24

RC4207

1.5-13

380

2200

0.9

8

225x100x50

480

650

1/4“ FT

81.3

2.16

1.24

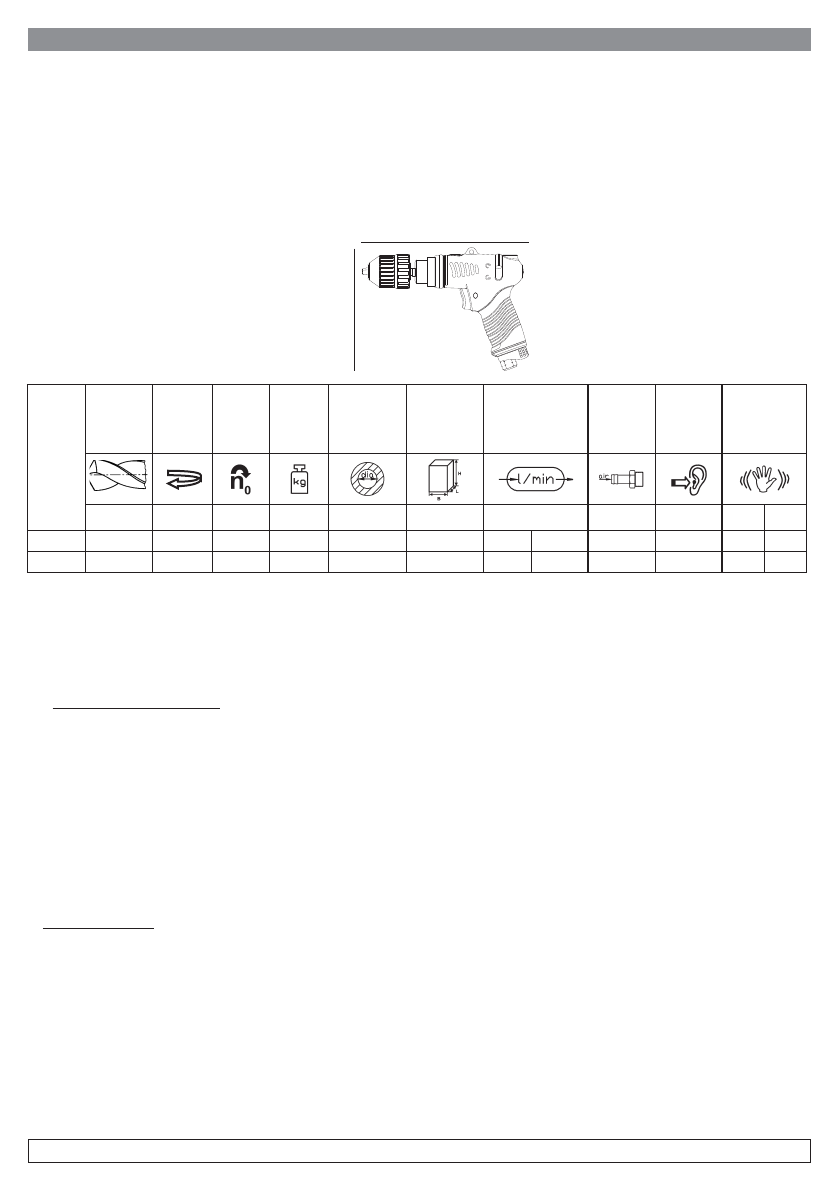

1.

Technical Data

a

b

3. Implementation and Operation

Generally the safety guidelines are to be observed when working with the equipment.

General Information:

•

Connect device as shown in Fig.01.

•

Fix the accessories properly to the tool.

•

To operate in forward rotation, push the reverse pin (2). To operate in reverse, push the reverse pin (2).

•

To start the machine, simply push the trigger (1). Machine speed is increase by increasing pressure on the trigger. Release the main switch to stop.

•

Use the speed switch (2) only when the drive spindle comes to a complete stop. Changing the speed before the drive spindle stops may damage the

machine.

Original Instructions
