9 ENGLISH

Procedure 2

In addition to

Procedure 1

, insert the bit-piece into the

sleeve with its pointed end facing in.

►

Fig.13:

1.

 Driver bit

2.

 Bit-piece

3.

 Sleeve

To remove the driver bit, pull the sleeve in the direction

of the arrow and pull the driver bit out.

NOTE:

 If the driver bit is not inserted deep enough

into the sleeve, the sleeve will not return to its original

position and the driver bit will not be secured. In this

case, try re-inserting the bit according to the instruc-

tions above.

NOTE:

 When it is difficult to insert the driver bit, pull

the sleeve and insert it into the sleeve as far as it will

go.

NOTE:

 After inserting the driver bit, make sure that it

is firmly secured. If it comes out, do not use it.

Installing hook

►

Fig.14:

1.

 Groove

2.

 Hook

3.

 Screw

The hook is convenient for temporarily hanging the tool.

This can be installed on either side of the tool. To install

the hook, insert it into a groove in the tool housing on

either side and then secure it with a screw. To remove,

loosen the screw and then take it out.

OPERATION

►

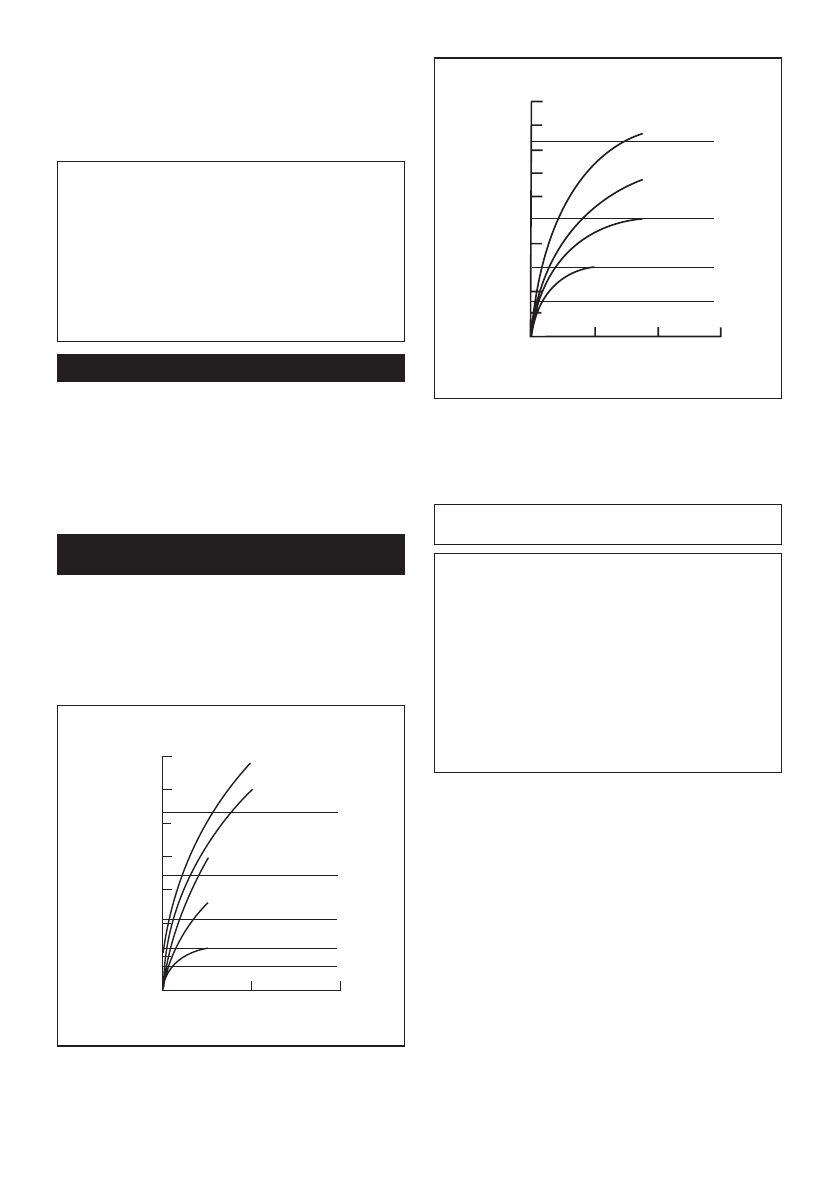

Fig.15

The proper fastening torque may differ depending upon

the kind or size of the screw/bolt, the material of the

workpiece to be fastened, etc. The relation between fas-

tening torque and fastening time is shown in the figures.

Proper fastening torque for standard bolt

N•

m

(kgf•cm)

M14

M12

M10

M8

M16

M14

M12
M10
M8

M16

140

(1428)

(1224)

(1020)

(816)

(612)

(408)

(204)

120

100

80

60

40

20

0

1

2

1

2

1.

 Fastening time (second)

2.

 Fastening torque

Proper fastening torque for high tensile bolt

2

1

M14

M12

M14

M12

M10

M8

M10

M8

200

180

160

140

120

100

80

60

40

20

0

1

2

3

(2040)

(1836)

(1632)

(1428)

(1224)

(1020)

(816)

(612)

(408)

(204)

N•

m

(kgf•cm)

1.

 Fastening time (second)

2.

 Fastening torque

Hold the tool firmly and place the point of the driver bit

in the screw head. Apply forward pressure to the tool to

the extent that the bit will not slip off the screw and turn

the tool on to start operation.

NOTICE:

If you use a spare battery to continue

the operation, rest the tool at least 15 min.

NOTE:

 Use the proper bit for the head of the screw/

bolt that you wish to use.

NOTE:

 When fastening M8 or smaller screw, carefully

adjust pressure on the switch trigger so that the screw

is not damaged.

NOTE:

 Hold the tool pointed straight at the screw.

NOTE:

 If the impact force is too strong or you tighten

the screw for a time longer than shown in the figures,

the screw or the point of the driver bit may be over-

stressed, stripped, damaged, etc. Before starting your

job, always perform a test operation to determine the

proper fastening time for your screw.

The fastening torque is affected by a wide variety of

factors including the following. After fastening, always

check the torque with a torque wrench.

1.  When the battery cartridge is discharged almost

completely, voltage will drop and the fastening

torque will be reduced.

2.

Driver bit or socket bit

Failure to use the correct size driver bit or socket

bit will cause a reduction in the fastening torque.

3. Bolt

•

Even though the torque coefficient and the

class of bolt are the same, the proper fasten-

ing torque will differ according to the diame-

ter of bolt.

•

Even though the diameters of bolts are the

same, the proper fastening torque will differ

according to the torque coefficient, the class

of bolt and the bolt length.

4.

The manner of holding the tool or the material

of driving position to be fastened will affect the

torque.
