13
* MX 1200/2 E EF / ** MX 1600/2 E EF
1st speed
2nd speed
150 – 360 rpm *
320 – 780 rpm *
150 – 300 rpm **
320 – 650 rpm **
The gears can be switched when the machine is
running down, however not under full load.
6.5
ErgoFix
interface
Height setting
The working height of the machine can be indi-
vidually adjusted to achieve an upright working
position.
Push the casing of the ErgoFix adapter
[1-7]
in the direction of the machine to move it as far
as it goes
[1-7]
and hold it tight.
By pulling on the stirrer rod, you can pull
the ErgoFix adaptor
[1-8]
out of the machine
spindle. In this way, you can adjust fi ve different
working heights. One step is 2 cm. The maxi-
mum adjustment movement is 8 cm.
Then release the clamping ring of the ErgoFix
adapter
[1-7]
and check that the adapter
[1-8]
is seated securely in the machine spindle.
Quick change function
NOTE
Ensure that the adapter
[1-8]
remains clean.
Do not lubricate the adaptor
[1-8]
.
Only press the ErgoFix casing
[1-7]
when the
machine is not in operation.
The ErgoFix interface enables you to easily and
quickly remove the stirrer rod from the machine.
Push the clamping ring of the ErgoFix adapter
[1-7]
in the direction of the machine to move it
as far as it goes and hold it tight.
By pulling on the stirrer rod, you can pull
the ErgoFix adaptor
[1-8]
completely out of
the machine spindle.
Changing the stirrer
Adapter ErgoFix
[2-1]
after worn-out of stirrer
rod can be reused.
Set the wrench
[2-2]
on the hexagon of the stir-
rer endpiece
[2-3]
and turn to the left to screw
the stirrer rod out of the ErgoFix adapter
[2-
1]
.

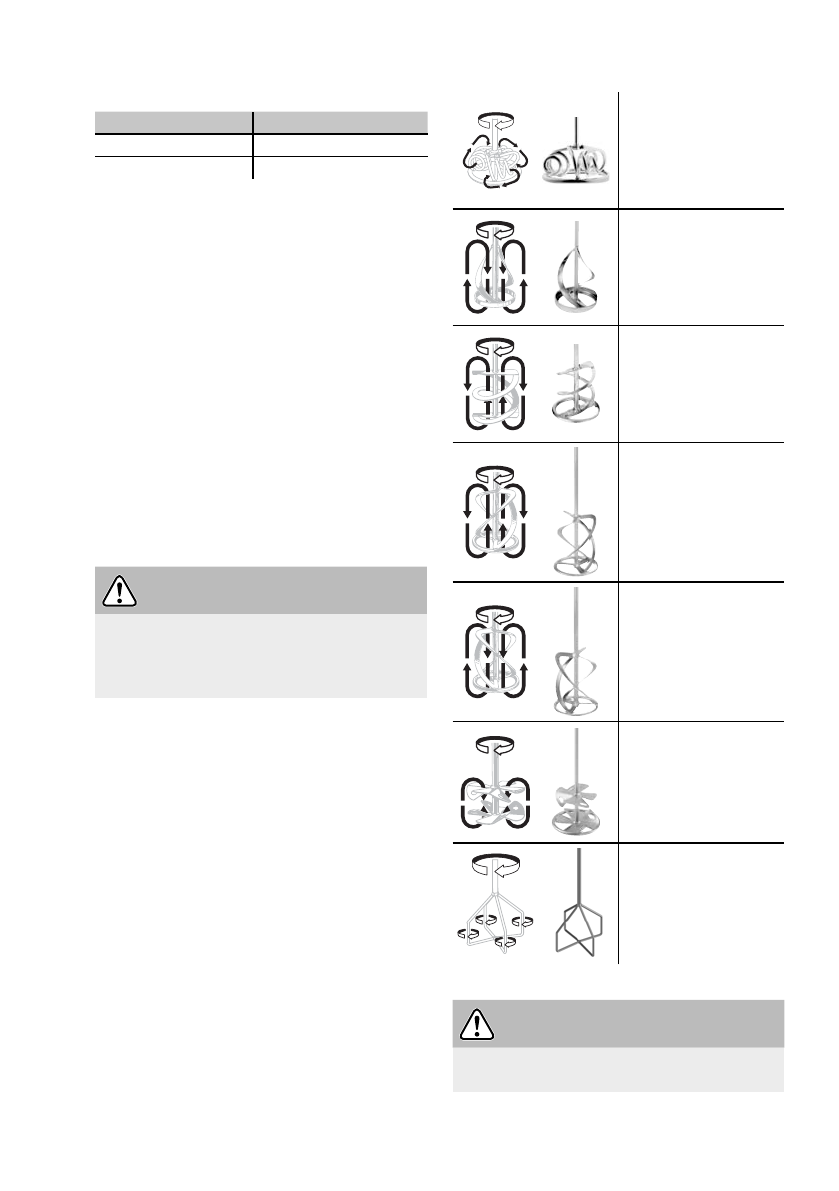

6.6 Stirrer
To mix different material mixtures together, use
different Festool stirrers: see the catalogue
PJ Uni
For wall paints,
emulsion paints,
ready-made fi ller,
ready-mix plaster,
varnishes/glazes
RS
For wall paints,
emulsion paints,
pastes, varnishes
casting compounds,
bitumen, sludges
HS2
For tile adhesives,
joint sealant, adhesive
mortar, ready-mix
plaster, screed, fi llers,
levelling compounds
HS3R
For mortar, concrete,
cement and lime
plaster adhesive fi ller,
screed, quartz-fi lled
epoxy resin, thick
bitumen coating
HS3L
For gypsum plaster,
emulsion paints,
varnishes wall paints,
casting compounds
WS
For paints, varnishes,
wall paints, emul-
sion paints, plasters,
glues, tile adhesives
CS
For balancing weights,
fi llers, sealants,
adhesives
6.7 Mains
connection
WARNING
There is a risk of accidents occurring if you do
not use the correct power supply.
