16

 | English

1 609 92A 34L | (15.9.16)

Bosch Power Tools

Identify additional safety measures to protect the operator
from the effects of vibration such as: maintain the tool and the
accessories, keep the hands warm, organisation of work pat-
terns.

Assembly

Battery Charging

Note:

The battery supplied is partially charged. To ensure full

capacity of the battery, completely charge the battery in the
battery charger before using your power tool for the first time.

The lithium-ion battery can be charged at any time without re-
ducing its service life. Interrupting the charging procedure
does not damage the battery.

The lithium-ion battery is protected against deep discharging
by the “Electronic Cell Protection (ECP)”. When the battery is
empty, the machine is switched off by means of a protective
circuit: The inserted tool no longer rotates.



Do not continue to press the On/Off switch after the
machine has been automatically switched off.

The bat-

tery can be damaged.

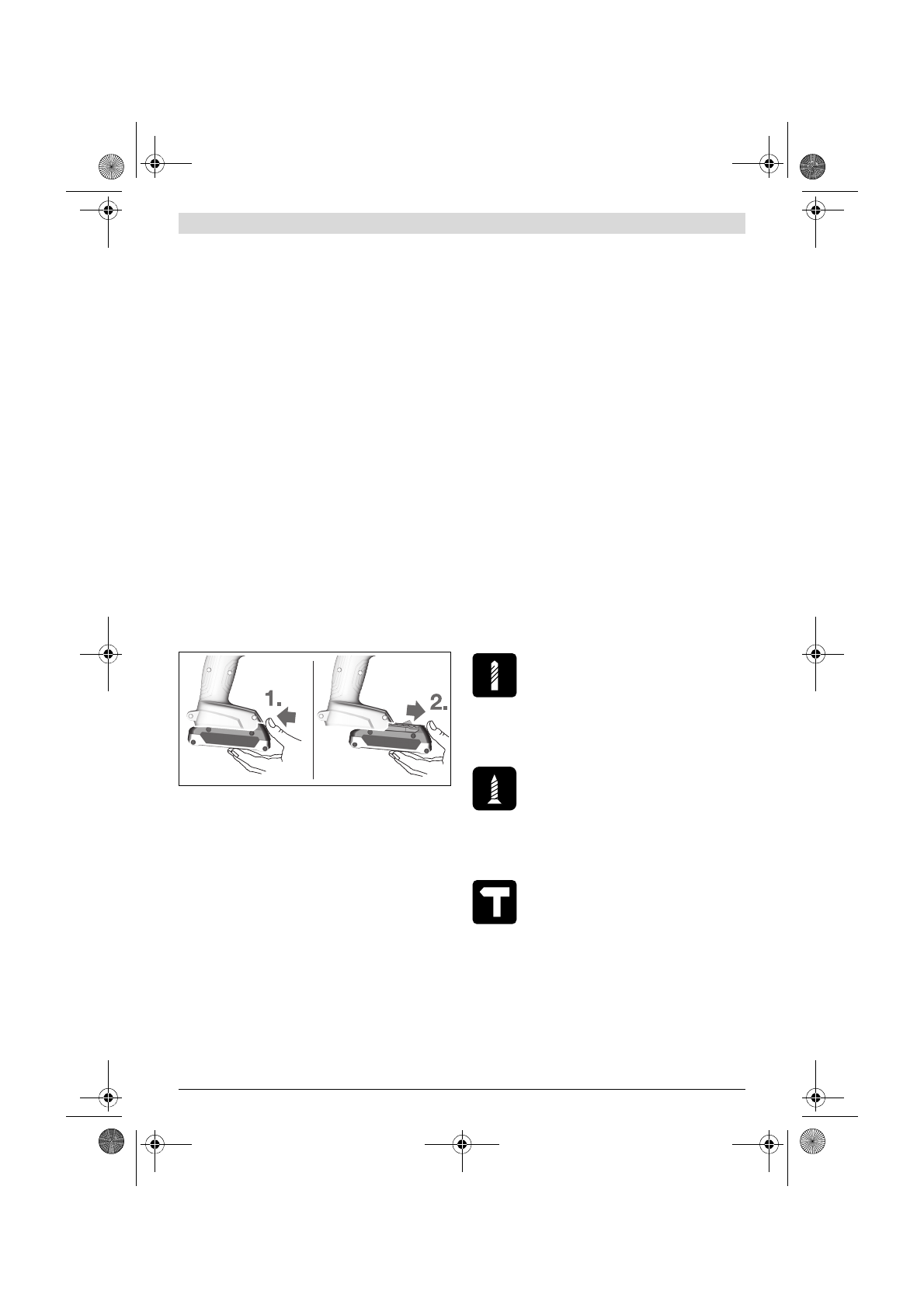

Removing the battery

The battery

7

 is equipped with two locking levels that should

prevent the battery from falling out when pushing the battery
unlocking button

8

 unintentionally. As long as the battery is

inserted in the power tool, it is held in position by means of a
spring.

To remove the battery

7

, press the unlocking button

8

 and

pull out the battery toward the front.

Do not exert any force.

Changing the Tool (see figure A)



Before any work on the machine itself (e. g. mainte-
nance, tool change, etc.) as well as during transport
and storage, remove the battery from the power tool.

There is danger of injury when unintentionally actuating
the On/Off switch.

Open the keyless chuck

2

 by turning in rotation direction



,

until the tool can be inserted. Insert the tool.

Firmly tighten the collar of the keyless chuck

2

 by hand in ro-

tation direction



. This automatically locks the drill chuck.

Dust/Chip Extraction



Dust from materials such as lead-containing coatings,
some wood types, minerals and metal can be harmful to
one’s health and cause allergic reactions, lead to res-
piratory infections and/or cancer.

 Materials containing

asbestos may only be worked by specialists.

–

Provide for good ventilation of the working place.

–

It is recommended to wear a P2 filter-class respirator.

Observe the relevant regulations in your country for the
materials to be worked.



Prevent dust accumulation at the workplace.

Dust can

easily ignite.

Operation

Starting Operation

Inserting the battery
Note:

Use of batteries not suitable for the machine can lead to

malfunctions of or cause damage to the power tool.

Set the rotational direction switch

10

 to the centre position in

order to avoid unintentional starting. Insert the charged bat-
tery

7

 into the handle so that it can be felt to engage and faces

flush against the handle.

Reversing the rotational direction (see figure B)

The rotational direction switch

10

 is used to reverse the rota-

tional direction of the machine. However, this is not possible
with the On/Off switch

11

 actuated.

Right Rotation:

 For drilling and driving in screws, push the

rotational direction switch

10

 left to the stop.

Left Rotation:

 For loosening or unscrewing screws, push the

rotational direction switch

10

 right to the stop.

Setting the operating mode

Drilling
GSR 140-LI, GSR 180-LI:

Set the torque selector setting ring

3

 to the re-

quired torque.

GSB 140-LI, GSB 180-LI:

Set the operating mode selector switch

4

 to the

“drilling” symbol.

Screwdriving
GSR 140-LI, GSR 180-LI:

Set the torque selector setting ring

3

 to the

“screwdriving” symbol.

GSB 140-LI, GSB 180-LI:

Set the operating mode selector switch

4

 to the

“screwdriving” symbol.

Impact drilling(GSB 140-LI, GSB 180-LI)

Set the operating mode selector switch

4

 to the

“impact drilling” symbol.

Switching On and Off

To

start

 the machine, press the On/Off switch

11

 and keep it

pressed.

The LED

9

 lights up when the On/Off switch

11

 is halfway or

fully pressed, and enables illumination of the screwing loca-
tion in unfavourable light conditions.

To save energy, only switch the power tool on when using it.
