10

 | English

1 609 92A 0BU | (19.6.13)

Bosch Power Tools

Symbols

The following symbols are important for reading and un

der-

standing the operating instructions. Please take note of the
symbols and their meaning. The correct interpretation of the
symbols will help you to use the machine in a better and safer
manner.

Delivery Scope

Cordless screwdriver / Combination cordless drill.
Battery, application tools and other accessories shown or de-

scribed are not part of the standard delivery scope.
A complete overview of accessories can be found in our ac-
cessories program.

Intended Use

The machine is intended for driving in and loosening screws

as well as for drilling in wood, metal, ceramics and plastic.

GSB machines are additionally intended for impact drilling in
bricks, brickwork and masonry.
The light of this power tool is intended to illuminate the power
tool’s direct area of working operation and is not suitable for
household room illumination.

Technical Data

The technical data of the machine are listed in the table on

page 152.
Please observe the article number on the type plate of your

machine. The trade names of the individual machines may

vary.

Declaration of Conformity

We declare under our sole responsibility that the product de-

scribed under “Technical Data” is in conformity with the fol-

lowing standards or standardisation documents: EN 60745

according to the provisions of the directives 2009/125/EC

(Regulation 1194/2012), 2011/65/EU, 2004/108/EC,

2006/42/EC.

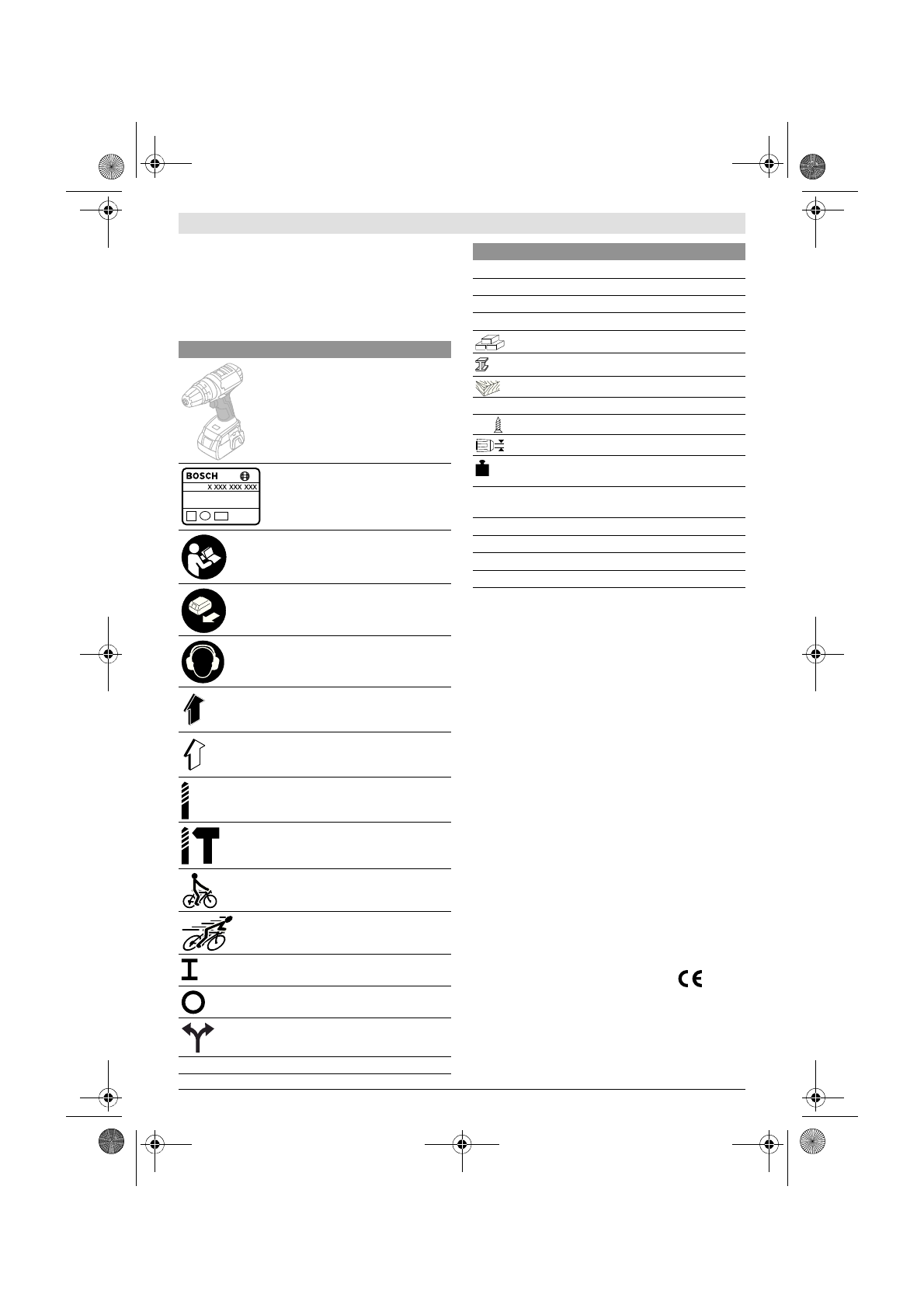

Symbol

Meaning

GSR 14,4 V-LI / GSR 18 V-LI /

GSB 14,4 V-LI / GSB 18 V-LI:

Cordless screwdriver / Combination

cordless drill
Grey-marked area: Handle (insulated
gripping surface)

Article number

Read all safety warnings and all instruc-

tions

Before any work on the machine itself,

remove the battery

Always wear ear protection.

Movement direction

Reaction direction

Drilling and screwdriving

Impact drilling

Low speed

High speed

Switching On

Switching Off

Right/left rotation

U

Rated voltage

n

S

Impact rate

n

0

 1

No-load speed (1. gear)

n

0

 2

No-load speed (2. gear)

M

Maximum torque according to ISO 5393
Brickwork

Metal

Wood

Ø

Drilling diameter, max.

Ø

Max. screw dia.
Chuck clamping range
Weight according to EPTA-Procedure

01/2003

*

Value dependent of the battery pack be-

ing used

L

wA

Sound power level

L

pA

Sound pressure level

K

Uncertainty

a

h

Vibration total value

Symbol

Meaning
