18

19

BS 18C

BSB 18C

............................. 4284 11 03...    .......................4284 31 03...

.............................................................................4413 34 03...

   ...000001-999999

   ...000001-999999

...................................13 mm ................................... 13 mm

...................................45 mm ................................... 45 mm

......................................-  ......................................... 14 mm

.....................................8 mm ..................................... 8 mm

..............................0-450 min

-1

 ............................. 0-450 min

-1

............................0-1650 min

-1

 ........................... 0-1650 min

-1

......................................-  ................................... 21450 min

-1

...................................51 Nm .................................... 51 Nm

...................................60 Nm .................................... 60 Nm

...................................60 Nm .................................... 60 Nm

...................................70 Nm .................................... 70 Nm

...................................18 V ....................................... 18 V

.............................1,5-13 mm ............................. 1,5-13 mm

..................................1,7 kg ..................................... 1,9 kg

..................................2,0 kg ..................................... 2,2 kg

...................................72 dB (A) ............................... 84 dB (A)

...................................83 dB (A) ............................... 95 dB (A)

......................................-  ........................................ 9,8 m/s

2

......................................-  ........................................ 1,5 m/s

2

..................................1,2 m/s

2

.................................. 1,7 m/s

2

..................................1,5 m/s

2

.................................. 1,5 m/s

2

..................................1,1 m/s

2

.................................. 0,7 m/s

2

..................................1,5 m/s

2

.................................. 1,5 m/s

2

ENGLISH

TECHNICAL DATA  CORDLESS PERCUSSION DRILL/DRIVER

Production code...............................................................................................

   .....................................................................................................................

Drilling capacity in steel ...................................................................................

Drilling capacity in wood ..................................................................................

Drilling capacity in brick and tile ......................................................................

Wood screws (without pre-drilling) ..................................................................

No-load speed 1st gear ...................................................................................

No-load speed 2nd gear ..................................................................................

Rate of percussion under load max. ................................................................

Torque with battery (1.5 Ah) *1  .......................................................................

Torque with battery (2.0 Ah) *1  .......................................................................

Torque with battery (3.0 Ah) *1  .......................................................................

Torque with battery (4.0 Ah) *1  .......................................................................

Battery voltage.................................................................................................

Drill chuck range ..............................................................................................

Weight according EPTA-Procedure 01/2003 (1.5 Ah) .....................................

Weight according EPTA-Procedure 01/2003 (3.0 Ah) .....................................

Noise/vibration information

Measured values determined according to EN 60 745.

Typically, the A-weighted noise levels of the tool are:

  Sound pressure level (Uncertainty K=3dB(A)) .............................................

  Sound power level (Uncertainty K=3dB(A)) .................................................

Wear ear protectors!

Total vibration values (vector sum in the three axes) determined according to

EN 60745.

Vibration emission value a

h

  Impact drilling into concrete .........................................................................

  Uncertainty K= .............................................................................................

  Drilling into metal .........................................................................................

  Uncertainty K= .............................................................................................

  Screwing ......................................................................................................

  Uncertainty K= .............................................................................................

*1 Measured according to AEG Standard N 877318

 WARNING! Read all safety warnings and all instructions.

Failure to

follow the warnings and instructions may result in electric shock, fi re and/or

serious injury.

Save all warnings and instructions for future reference.

DRILL SAFETY WARNINGS

Wear ear protectors when impact drilling.

Exposure to noise can cause

hearing loss.

Use auxiliary handle(s), if supplied with the tool.

 Loss of control can

cause personal injury.

Hold power tool by insulated gripping surfaces, when performing an

operation where the cutting accessory may contact hidden wiring.

Cutting accessory contacting a „live“ wire may make exposed metal parts

of the power tool „live“ and could give the operator an electric shock.

SCREWDRIVER SAFETY WARNINGS

Hold power tool by insulated gripping surfaces, when performing an

operation where the fastener may contact hidden wiring.

Fasteners

contacting a "live" wire may make exposed metal parts of the power tool

"live" and could give the operator an electric shock.

ADDITIONAL SAFETY AND WORKING INSTRUCTIONS

Use protective equipment. Always wear safety glasses when working with

the machine. The use of protective clothing is recommended, such as dust

mask, protective gloves, sturdy non-slip footwear, helmet and ear

defenders.
The dust produced when using this tool may be harmful to health. Do not

inhale the dust. Wear a suitable dust protection mask.
Do not machine any materials that present a danger to health (e.g.

asbestos).
Switch the device off  immediately if the insertion tool stalls! Do not switch

the device on again while the insertion tool is stalled, as doing so could

trigger a sudden recoil with a high reactive force. Determine why the

insertion tool stalled and rectify this, paying heed to the safety instructions.
The possible causes may be:

•  it is tilted in the workpiece to be machined

•  it has pierced through the material to be machined

•  the power tool is overloaded
Do not reach into the machine while it is running.
The insertion tool may become hot during use.

•  when changing tools

•  when setting the device down
Sawdust and splinters must not be removed while the machine is running.

WARNING

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to

compare one tool with another. It may be used for a preliminary assessment of exposure.
The declared vibration emission level represents the main applications of the tool. However if the tool is used for diff erent applications, with diff erent

accessories or poorly maintained, the vibration emission may diff er. This may signifi cantly increase the exposure level over the total working period.
An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off  or when it is running but not actually

doing the job. This may signifi cantly reduce the exposure level over the total working period.
Identify additional safety measures to protect the operator from the eff ects of vibration such as: maintain the tool and the accessories, keep the hands warm,

organisation of work patterns.

ENGLISH

When working in walls ceiling, or fl oor, take care to avoid electric cables

and gas or waterpipes.
Clamp your workpiece with a clamping device. Unclamped workpieces can

cause severe injury and damage.
Remove the battery pack before starting any work on the machine.
Do not dispose of used battery packs in the household refuse or by burning

them. AEG Distributors off er to retrieve old batteries to protect our

environment.
Do not store the battery pack together with metal objects (short circuit risk).
Use only System PCLS chargers for charging System PCLS battery packs.

Do not use battery packs from other systems.
Never break open battery packs and chargers and store only in dry rooms.

Keep dry at all times.
Battery acid may leak from damaged batteries under extreme load or

extreme temperatures. In case of contact with battery acid wash it off

immediately with soap and water. In case of eye contact rinse thoroughly

for at least 10 minutes and immediately seek medical attention.

Warning!

To reduce the risk of fi re, personal injury, and product damage

due to a short circuit, never immerse your tool, battery pack or charger in

fl uid or al-low a fl uid to fl ow inside them. Corrosive or conductive fl uids,

such as seawater, certain industrial chemicals, and bleach or bleach

containing products, etc., Can cause a short circuit.

SPECIFIED CONDITIONS OF USE

The cordless impact wrench can be used to tighten and loosen nuts and

bolts wherever no mains connection is available.
Do not use this product in any other way as stated for normal use.

EC-DECLARATION OF CONFORMITY

We declare under our sole responsibility that the product  described under

“Technical Data” fulfi lls all the relevant provisions of the directives 2011/65/

EU (RoHs), 2014/30/EU, 2006/42/EC and the following harmonized

standards have been used:
EN 60745-1:2009 + A11:2010

EN 60745-2-1:2010

EN 60745-2-2:2010

EN 55014-1:2006 + A1:2009 + A2:2011

EN 55014-2:2015

EN 50581:2012

Winnenden, 2017-09-25

Alexander Krug

Managing Director
Authorized to compile the technical fi le.
Techtronic Industries GmbH

Max-Eyth-Straße 10

71364 Winnenden

Germany

BATTERIES

Battery packs which have not been used for some time should be

recharged before use.
Temperatures in excess of 50°C (122°F) reduce the performance of the

battery pack. Avoid extended exposure to heat or sunshine (risk of

overheating).
The contacts of chargers and battery packs must be kept clean.
For an optimum life-time, the battery packs have to be fully charged, after

used.
To obtain the longest possible battery life remove the battery pack from the

charger once it is fully charged.
For battery pack storage longer than 30 days:

Store the battery pack where the temperature is below 27°C and away from

moisture

Store the battery packs in a 30% - 50% charged condition

Every six months of storage, charge the pack as normal.

BATTERY PACK PROTECTION LI-ION BATTERY

The battery pack has overload protection that protects it from being

overloaded and helps to ensure long life.

Under extreme stress the battery electronics switch off  the machine

automatically. To restart, switch the machine off  and then on again. If the

machine does not start up again, the battery pack may have discharged

completely. In this case it must be recharged in the battery charger.

TRANSPORTING LITHIUM BATTERIES

Lithium-ion batteries are subject to the Dangerous Goods Legislation

requirements.
Transportation of those batteries has to be done in accordance with local,

national and international provisions and regulations.
•  The user can transport the batteries by road without further

requirements.

•  Commercial transport of Lithium-Ion batteries by third parties is subject to

Dangerous Goods regulations. Transport preparation and transport are

exclusively to be carried out by appropriately trained persons and the

process has to be accompanied by corresponding experts.

When transporting batteries:
•  Ensure that battery contact terminals are protected and insulated to

prevent short circuit.

•  Ensure that battery pack is secured against movement within packaging.

•  Do not transport batteries that are cracked or leak.
Check with forwarding company for further advice

MAINTENANCE

Use only AEG accessories and spare parts. Should components need to be

replaced which have not been described, please contact one of our AEG

service agents (see our list of guarantee/service addresses).
If needed, an exploded view of the tool can be ordered. Please state the

machine type printed as well as the six-digit No. on the label and order the

drawing at your local service agents or directly at: Techtronic Industries

GmbH, Max-Eyth-Straße 10, 71364 Winnenden, Germany.

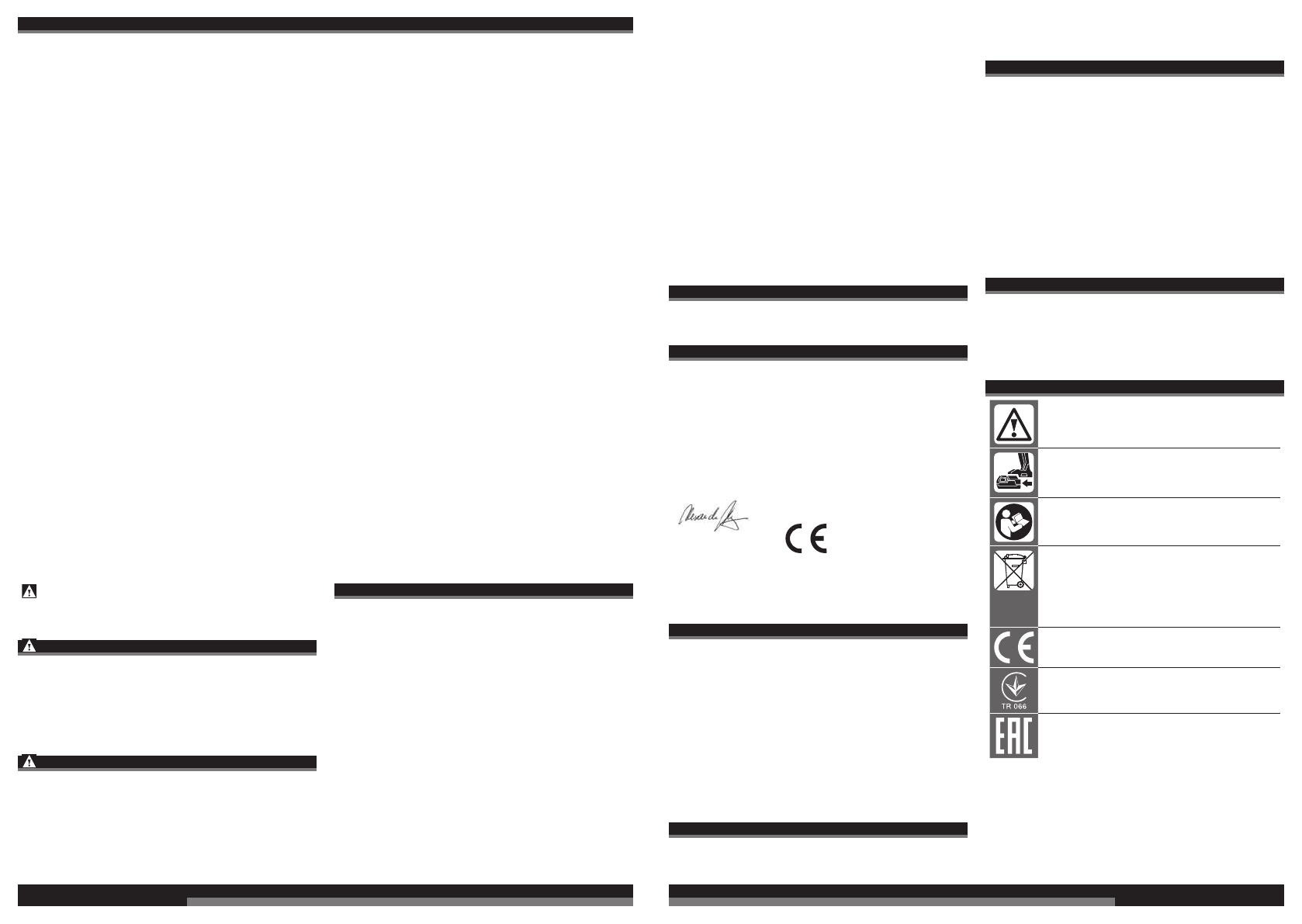

SYMBOLS

CAUTION! WARNING! DANGER!

Remove the battery pack before starting any work on the

machine.

Please read the instructions carefully before starting the

machine.

Do not dispose electric tools, batteries/rechargeable batteries

together with household waste material.

Electric tools and batteries that have reached the end of their

life must be collected separately and returned to an

environmentally compatible recycling facility.

Check with your local authority or retailer for recycling advice

and collection point.
European Conformity Mark

National mark of conformity Ukraine

EurAsian Conformity Mark.
