Automatic speed change function (Fig. 4)

015098

This tool has “high speed mode” and “high torque mode”.
It automatically changes operation mode depending on
the work load. When mode indicator lights up during
operation, the tool is in high torque mode.

Tool/battery protection system

The tool is equipped with a tool/battery protection system.
This system automatically cuts off power to the motor to
extend tool and battery life.
The tool will automatically stop during operation if the tool
or battery is placed under one of the following conditions.
In some conditions, the indicator lights up.

Overload protection

When the tool is operated in a manner that causes it to
draw an abnormally high current, the tool automatically
stops without any indications. In this situation, turn the tool
off and stop the application that caused the tool to
become overloaded. Then turn the tool on to restart.

Overheat protection for tool

When the tool is overheated, the tool stops automatically
and the battery indicator shows following state. In this
situation, let the tool cool before turning the tool on again.

015140

Releasing protection lock

When the protection system works repeatedly, the tool is
locked and the battery indicator shows the following state.

015200

In this situation, the tool does not start even if turning the
tool off and on. To release the protection lock, remove the
battery, set it to the battery charger and wait until the
charging finishes.

Shaft lock

 CAUTION:

• Never actuate the shaft lock when the spindle is

moving. The tool may be damaged.

Press the shaft lock to prevent spindle rotation when
installing or removing accessories.

 (Fig. 5)

ASSEMBLY

 CAUTION:

• Always be sure that the tool is switched off and the

battery cartridge is removed before carrying out any
work on the tool.

Installing side grip (handle)

 CAUTION:

• Always be sure that the side grip is installed securely

before operation.

Screw the side grip securely on the position of the tool as
shown in the figure.

 (Fig. 6)

Installing or removing wheel guard (For
depressed center wheel, multi disc/
abrasive cut-off wheel, diamond wheel)

 WARNING:

• When using a depressed center grinding wheel/Multi-

disc, flex wheel, wire wheel brush, cut-off wheel or
diamond wheel, the wheel guard must be fitted on the
tool so that the closed side of the guard always points
toward the operator.

• When using an abrasive cut-off/diamond wheel, be

sure to use only the special wheel guard designed for
use with cut-off wheels. (In some European countries,
when using a diamond wheel, the ordinary guard can
be used. Follow the regulations in your country.)

For tool with clamp lever type wheel guard

Loosen the lever on the wheel guard after loosening the
screw. Mount the wheel guard with the protrusion on the
wheel guard band aligned with the notch on the bearing
box. Then rotate the wheel guard to such an angle that it
can protect the operator according to work.

 (Fig. 7)

Tighten the lever to fasten the wheel guard. If the lever is
too tight or too loose to fasten the wheel guard, loosen or
tighten the screw to adjust the tightening of the wheel
guard band.

 (Fig. 8)

To remove wheel guard, follow the installation procedure
in reverse.

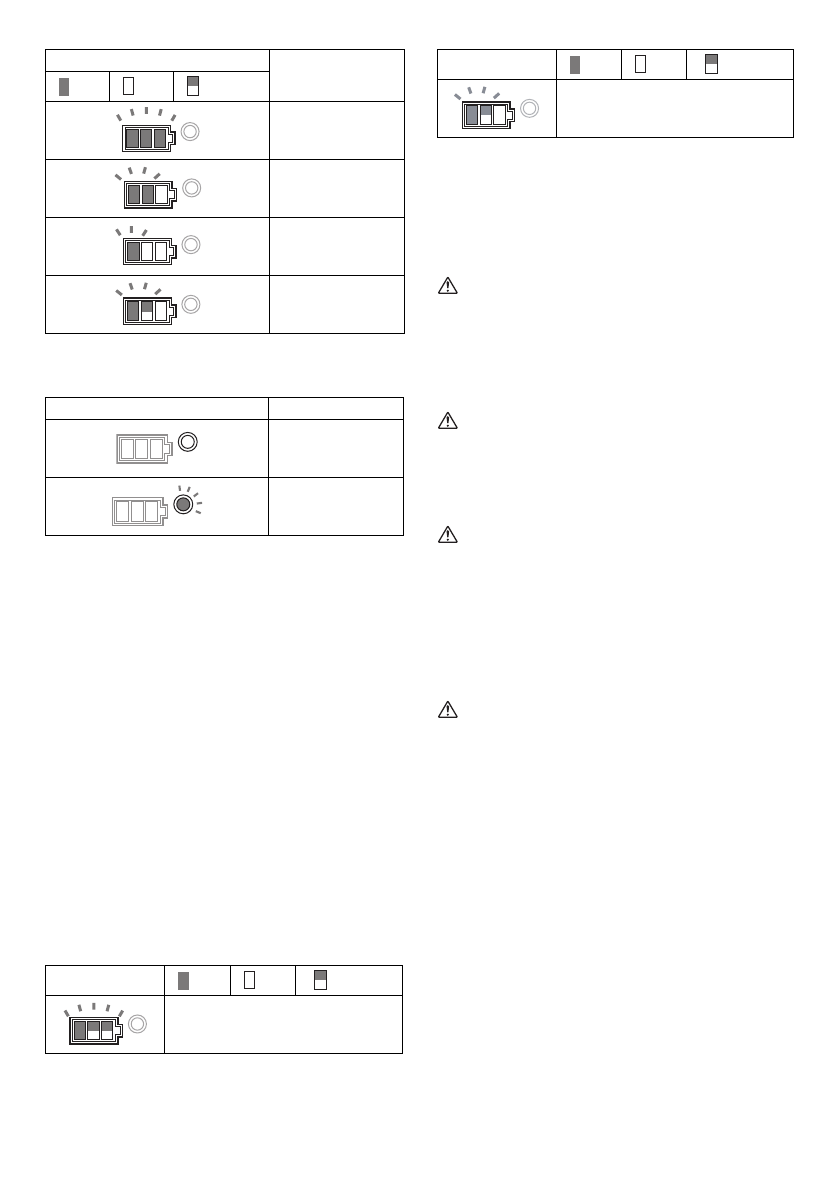

Battery indicator status

Remaining battery

capacity

: On

: Off

: Blinking

50% - 100%

20% - 50%

0% - 20%

Charge the battery

Mode indicator status

Operation mode

High speed mode

High torque mode

Battery indicator

: On

: Off

: Blinking

Tool is overheated

Battery indicator

: On

: Off

: Blinking

Protection lock works
