Removal of the lower and upper burner and installation of the injector to the

gas oven

Removal of the upper burner:

With the help of a screw driver, remove the screw as shown in figure 8.

As shown in figure 8.1, remove the injector in the bearing with a socket

wrench. In order to re-place the burner, apply the removal process
reversely.

Removal of the lower burner:

The  lower  burner  door  has  been  fixed  with  two  screws.  As  shown  in

figure 9, remove it with the help of a screw driver. As shown in figure 9.1,

remove the injector in the bearing with a socket wrench. In order to
re-place the burner, apply the removal process reversely.

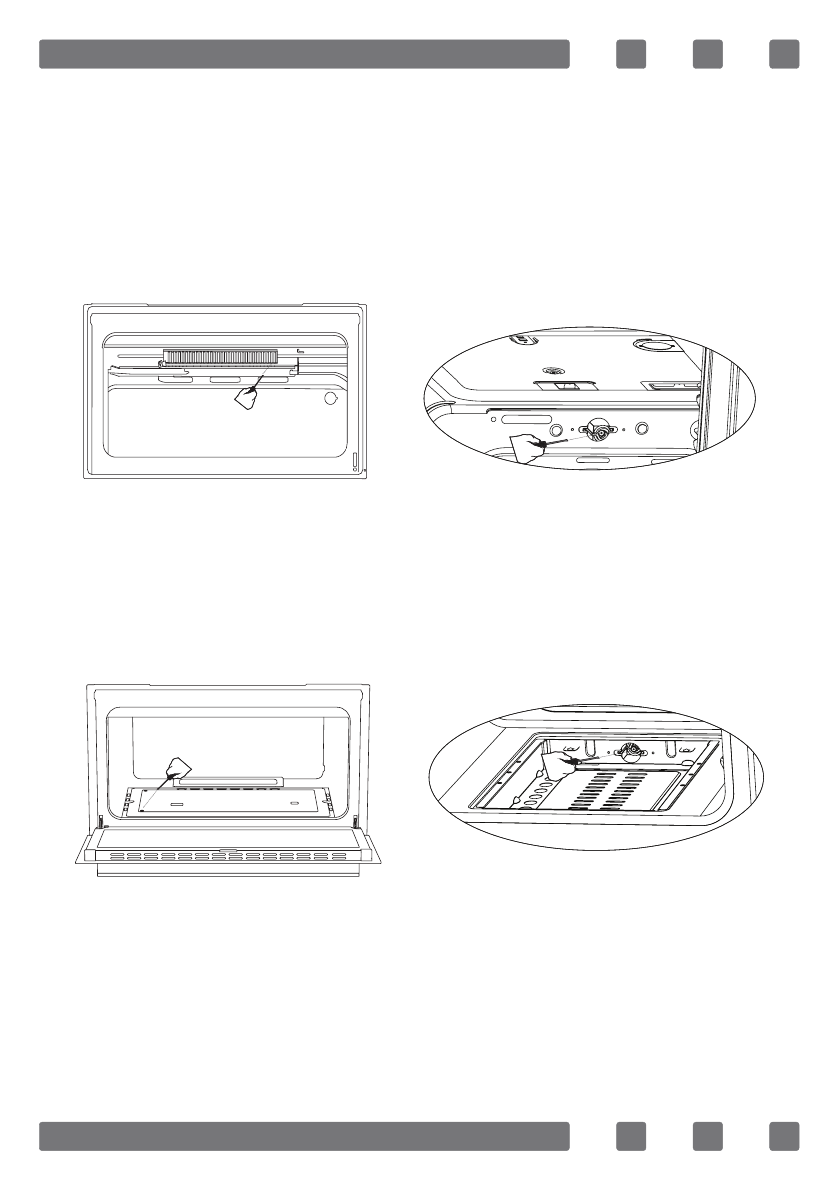

Figure 8

Figure 8.1

Figure 9

Figure 9.1
