– Cut off the mains cable where it connects with the

appliance and discard it.

– Flat the external gas pipes if there are fitted.

– Speak to your local authorised facilities for disposal

of your appliance.

Installation

Warning!  The following instructions about
installation, connection and maintenance must be

carried out by qualified personnel in compliance with
standards and local regulations in force.

Gas Connection

Choose fixed connections or use a flexible pipe in stain-
less steel in compliance with the regulation in force. If you
use flexible metallic pipes, be careful they do not come
in touch with mobile parts or they are not squeezed. Also
be careful when the hob is put together with an oven.

Important!  Make sure that the gas supply pressure of the
appliance obeys the recommended values. The adjustable
connection is fixed to the comprehensive ramp by means
of a threaded nut G 1/2". Screw the parts without force,
adjust the connection in the necessary direction and
tighten everything.

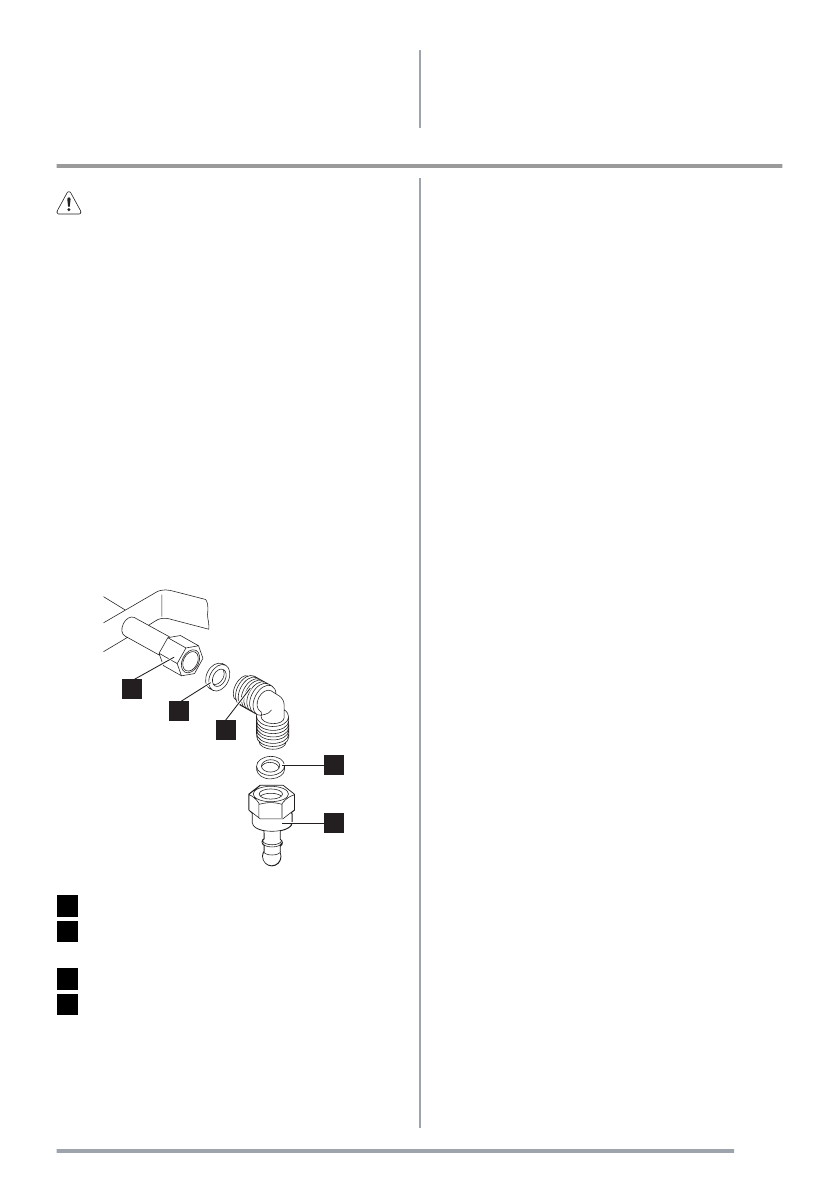

1

2

2

3

4

1

End of shaft with nut

2

Washer (additional washer is only for Slovenia and
Turkey)

3

Elbow

4

Rubber pipe holder for liquid gas (only for Slovenia
and Turkey)

Rigid connection:

Carry out connection by using metal rigid pipes (copper
with mechanical end).

"Flexible" connection with mechanical end:

– Natural gas : connection carry out with a flexible pipe

with mechanical end which is screwed directly on the
elbow finishing the slope of the appliance.

– Butane / Propane : use a flexible tube, equipped with

it's collars if it is worth visiting over all it's length and
if the appliance runs only on butane. If the appliance
runs on Propane, use a flexible pipe with suitable metal
end.

Flexible nonmetal pipes connection:

If it is possible to easily control the connection in its full
area, you can use a flexible pipe. Tightly attach the flexible
pipe by clamps.

Liquid gas : use the rubber pipe holder. Always engage
the gasket. Then continue with the gas connection. The
flexible pipe is prepared for apply when:

– it can not get hot more than room temperature, higher

than 30°C;

– it is no longer than 1500 mm;
– it shows no throttles;
– it is not subject to traction or torsion;
– it does not get in touch with cutting edges or corners;
– it can be easily examined in order to check its condi-

tion.

The control of preservation of the flexible pipe consists
in checking that:
– it does not show cracks, cuts, marks of burnings on

the two ends and on its full length;

– the material is not hardened, but shows its correct

elasticity;

– the fastening clamps are not rusted;
– expired term is not due.
If one or more defects are visible, do not repair the pipe,
but replace it.

Important!  When installation is complete, make sure that
the seal of each pipe fitting is correct. Use a soapy
solution, not a flame !
