DESCRIPTION

SPECIFICATIONS

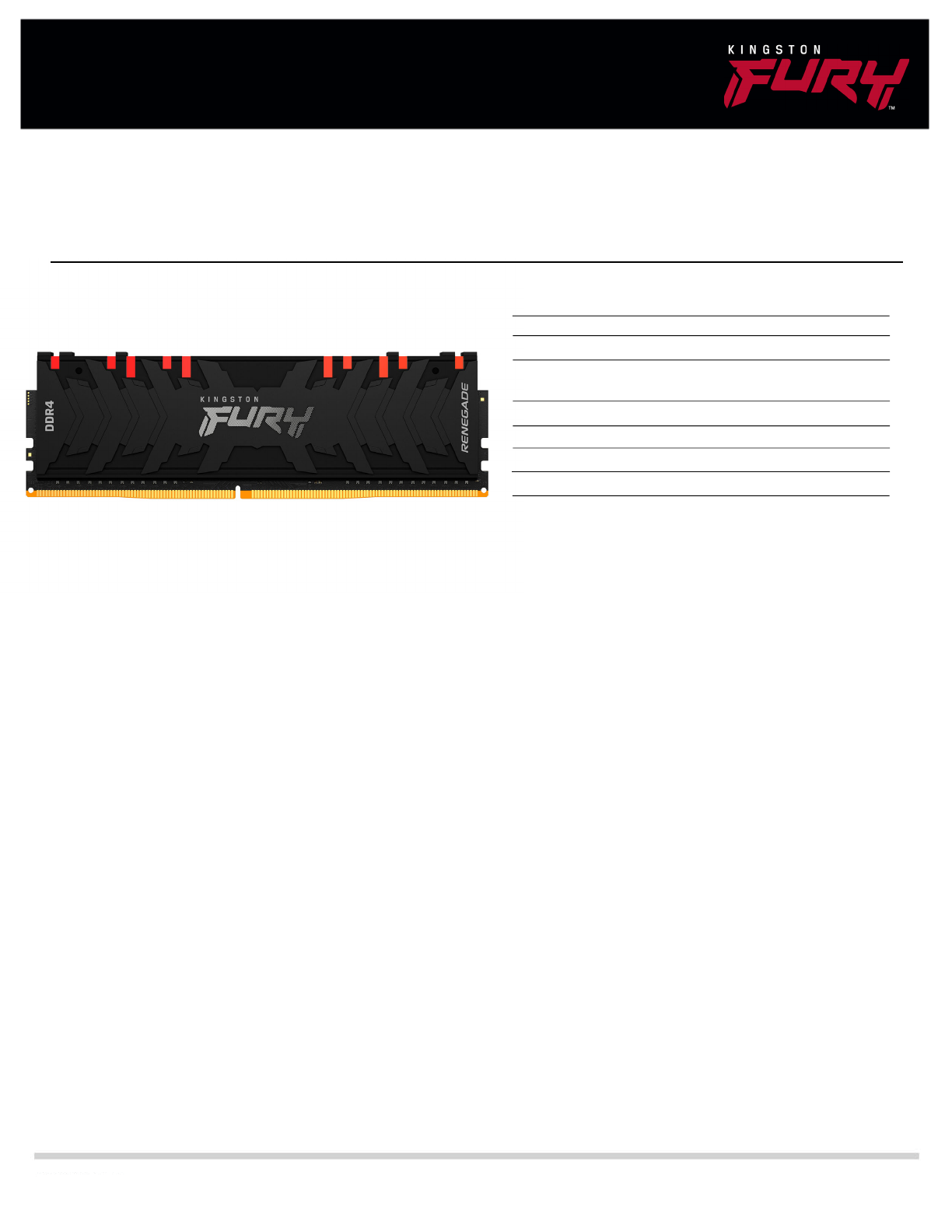

KF436C16RB1A/16

16GB 2G x 64-Bit
DDR4-3600 CL16 288-Pin DIMM

Continued >>

FEATURES

FURY KF436C16RB1A/16 is a 2G x 64-bit (16GB) DDR4-3600
CL16 SDRAM (Synchronous DRAM) 2Rx8, memory module, based
on sixteen 1G x 8-bit FBGA components per module.  Each module
kit supports Intel® Extreme Memory Profiles (Intel® XMP)
2.0.  Each module has been tested to run at DDR4-3600 at a low
latency timing of 16-20-20 at 1.35V.  The SPDs are programmed
to JEDEC standard latency DDR4-2400 timing of 17-17-17 at
1.2V.  Each 288-pin DIMM uses gold contact fingers.  The
JEDEC standard electrical and mechanical specifications are
as follows:

CL(IDD)
Row Cycle Time (tRCmin)
Refresh to Active/Refresh
Command Time (tRFCmin)
Row Active Time (tRASmin)
UL Rating
Operating Temperature
Storage Temperature

17 cycles
45.75ns(min.)
350ns(min.)

32ns(min.)
94 V - 0
0

o

 C to +85

o

 C

-55

o

 C to +100

o

 C

FACTORY TIMING PARAMETERS

•

Default (JEDEC):

DDR4-2400 CL17-17-17 @1.2V

•

XMP Profile #1:

DDR4-3600 CL16-20-20 @1.35V

•

XMP Profile #2:

DDR4-3000 CL15-17-17 @1.35V

• Power Supply: VDD = 1.2V Typical

• VDDQ = 1.2V Typical

• VPP = 2.5V Typical

• VDDSPD = 2.2V to 3.6V

• On-Die termination (ODT)

• 16 internal banks; 4 groups of 4 banks each

• Bi-Directional Differential Data Strobe

• 8 bit pre-fetch

• Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)

• Height 1.66” (42.2mm), w/heatsink

Document No. 4810088A     07/08/21     Page 1
