 English |

13

Bosch Power Tools

1 609 92A 0FC | (10.12.13)

Dust/Chip Extraction



Dusts from materials such as lead-containing coatings,
some wood types, minerals and metal can be harmful to
one’s health. Touching or breathing-in the dusts can cause
allergic reactions and/or lead to respiratory infections of
the user or bystanders.
Certain dusts, such as oak or beech dust, are considered
as carcinogenic, especially in connection with wood-treat-
ment additives (chromate, wood preservative). Materials
containing asbestos may only be worked by specialists.

– Provide for good ventilation of the working place.
– It is recommended to wear a P2 filter-class respirator.

Observe the relevant regulations in your country for the
materials to be worked.

Operation

Starting Operation



Observe correct mains voltage! The voltage of the pow-
er source must agree with the voltage specified on the
nameplate of the machine. Power tools marked with
230 V can also be operated with 220 V.

Switching On and Off

– To

start

 the machine, push the On/Off switch

2

 to the “

I

”

position.

– To

switch off

 the machine, push the On/Off switch

2

 to the

“

0

” position.

For low temperatures, the machine reaches the full impact
rate only after a certain time.
This start-up time can be shortened by striking the chisel in
the machine against the floor one time.

To save energy, only switch the power tool on when using it.

Working Advice (see figure G)



Before any work on the machine itself, pull the mains
plug.

While working, hold the power tool with both hands by the
handle

1

. The handle

1

 can move upward and downward

around its axis by approx. 30 mm. This has a damping effect
against vibrations.

For the highest possible impact damping, work only with
moderate pressure.

Sharpening Chisels

Good results are only achieved with sharp chisels; therefore,
sharpen the chiselling tools in good time. This ensures a long
service life of the tools and good working performance.

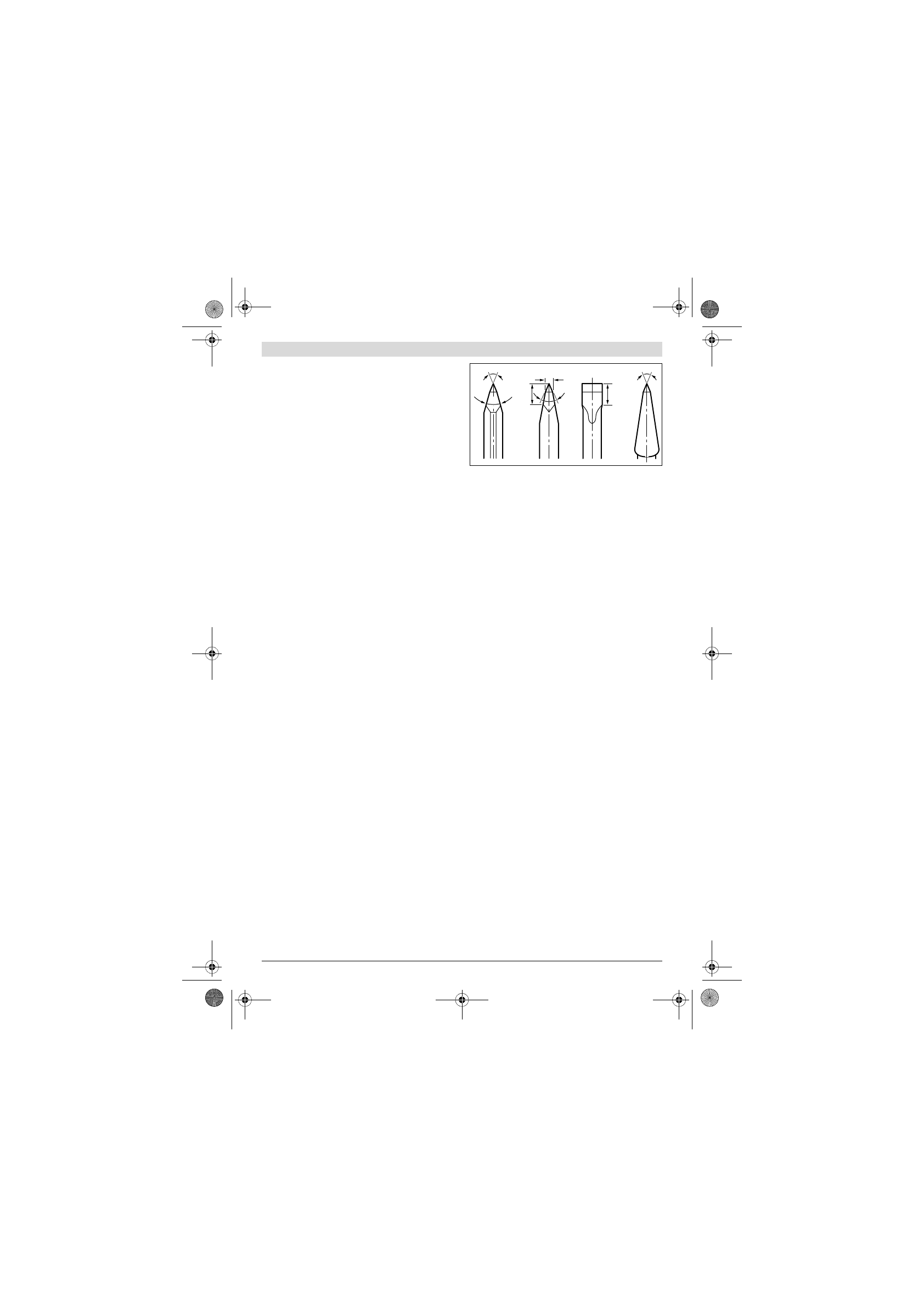

Re-sharpening

Sharpen chiselling tools using grinding wheels (e. g. ceramic
bonded corundum wheel) with a steady supply of water. Ref-
erence values are shown in the figure. Take care that no an-
nealing coloration appears on the cutting edges; this impairs
the hardness of the chiselling tools.

For

forging

, heat the chisel to between 850 and 1050 ° C

(bright red to yellow).

For

hardening

, heat the chisel to approx. 900 ° C and quench

in oil. Then anneal in an oven for approx. one hour at 320 ° C
(annealing colour = light blue).

Maintenance and Service

Maintenance and Cleaning



Before any work on the machine itself, pull the mains
plug.



For safe and proper working, always keep the machine
and ventilation slots clean.

If the replacement of the supply cord is necessary, this has to
be done by Bosch or an authorized Bosch service agent in or-
der to avoid a safety hazard.

When the carbon brushes wear below acceptable service tol-
erances, the machine will automatically cut out. The machine
must be sent to customer service for maintenance (for ad-
dress, see the “After-sales Service and Application Service”
section.

After-sales Service and Application Service

In all correspondence and spare parts order, please always in-
clude the 10-digit article number given on the type plate of
the machine.

Our after-sales service responds to your questions concern-
ing maintenance and repair of your product as well as spare
parts. Exploded views and information on spare parts can al-
so be found under:

www.bosch-pt.com

Bosch’s application service team will gladly answer questions
concerning our products and their accessories.

Great Britain

Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham
Uxbridge
UB 9 5HJ
At www.bosch-pt.co.uk you can order spare parts or arrange
the collection of a product in need of servicing or repair.
Tel. Service: (0844) 7360109
E-Mail: boschservicecentre@bosch.com

4

60

ca.60

ca.40

60

60

20
