www.timberk.com • electric oil filled radiator

4

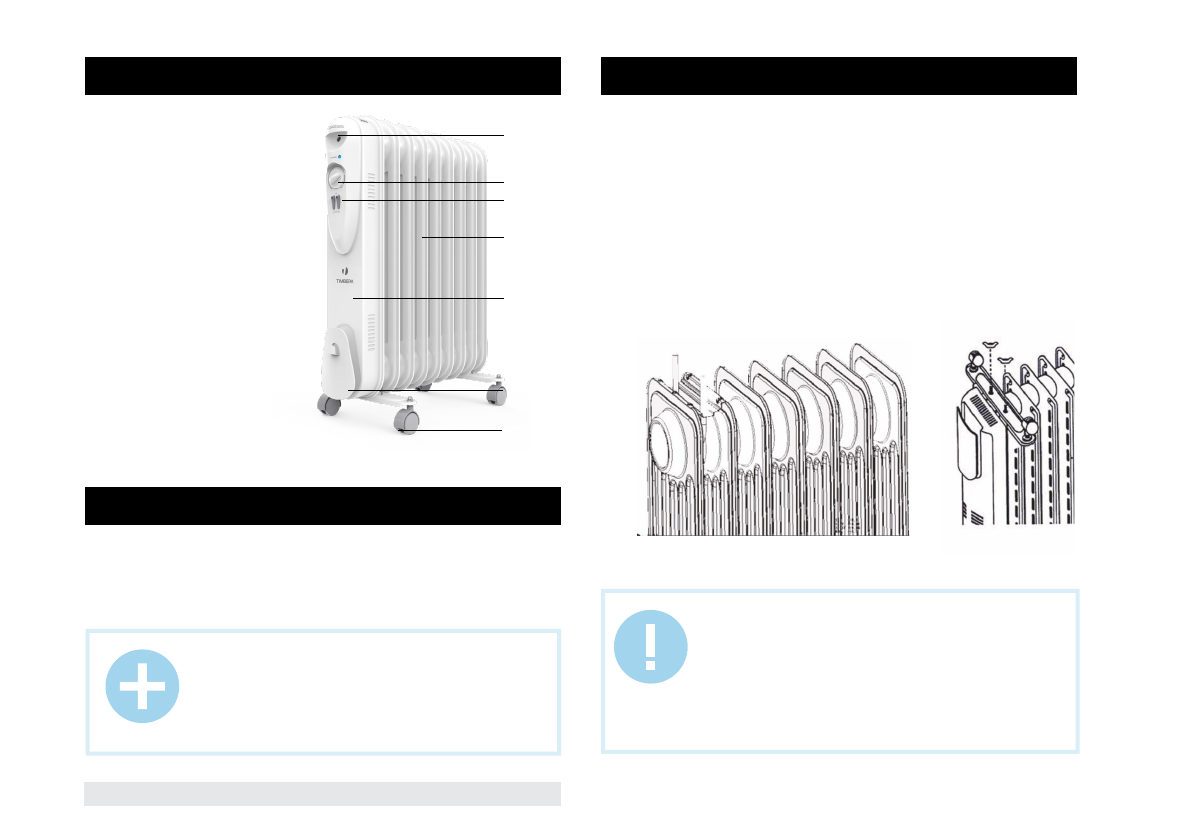

1. Handle for moving
2. Heading indicator
3. Power mode switcher
4. Radiator sections
5. Front cover
6. Cord holder
7. Wheel

4. RADIATOR DESCRIPTION

1. Oil-filled radiator - 1 pc
2. Roller wheels, assembled - 2 pcs
3. Finger nut - 1 set

4. User manual - 1 pcs
5. Guarantee slip - 1 pcs
6. Packing - 1 pcs

Fig. 1

5. DELIVERY SET

1. Unpack the radiator and roller wheels and remove all the packaging

material.
2. Overturn the radiator on a mat or no soft surface, to avoid damage to

lacquer coating.
3. Install wheel plates on the lower part of radiator sections, into two fixed

supports.
4. Draw up two finger nuts on one side and two finger nuts on the other - in

clamp extensions passed through the wheel plate supports, after making

sure that 2 openings in the wheel plate match together with the clamp

extensions (see Figure 3).
5. Turn the radiator back and tip it up.

6. ASSEMBLY AND INSTALLATION

NOTE:

Design and technical characteristics of the convector

heater, as well as its complete set may be changed by

the manufacturer without prior notification, when it is

needed to improve its quality.

Fig. 2

Fig. 3

IMPORTANT!

1. Switch on and operate the radiator only when upright (with

wheels below and control elements above). Any other position

may cause a dangerous situation and result in failure of the oil-

filled radiator or damage of property and the manufacturer will

consider this as a non-warranty case.
2. Do not switch the radiator on, if roller wheels are not installed.

5

6

4

7

2

1

3
