4. Draw up two finger nuts on one side and two finger nuts on the other - in
clamp extensions passed through the wheel plate supports, after making
sure that 2 openings in the wheel plate match together with the clamp
extensions (see Figure 3).
5. Turn the radiator back and tip it up.
1.
Slowly unscrew the check valve of the gas cylinder.
2.
Press and slowly turn the gas control knob on the control panel to
position (Fig.2). Keep the gas control knob pressed for 20-30 seconds. At
the same time, press the piezo-ignition button several times, until the pilot
lights up. Every time you press the piezo-ignition button, you can hear a
loud click and see a spark on the piezo-ignition electrode. Continue
keeping the gas control knob pressed for 10-15 seconds after ignition of
the pilot flame in order to activate the flame detector.
3.
Leave the gas control knob in this position at least for 5 minutes for
stable ignition of the 1st heating stage. The pilot and central element of
the ceramic burner should be alight. This position corresponds to the heat
power of 1.4 kW.
4.
To change the heating stage, slightly press the gas control knob and
slowly turn it anticlockwise until locking in or position, which
corresponds to the heat power of 2.8 kW and 4.2 kW.
5.
Do not leave the gas control knob in an intermediate position between
the fixed positions , and .
Start
Shutdown
1.
Press the gas control knob and turn it to position. The pilot and
central element of the ceramic burner should be alight.
2.
Screw the check valve on the gas cylinder clockwise up to the stop.
3.
If you do not plan to use the heater in the nearest time, disconnect the
gas cylinder from the reducer. Remove the gas cylinder to the storage
place according to the recommendations and requirements described in
the Manual.
Gas cylinder replacement
1.
Make sure that the heater is switched off.
2.
If it is necessary to replace an empty gas cylinder, shut gas screwing the
gas check valve on the cylinder clockwise up to the stop.
3.
Remove the cylinder clamp and take the cylinder out of the heater body.
4.
Remove the gas pressure reducer from the cylinder unscrewing its cap
nut.
5.
Connect and install a full gas cylinder as indicated in Section 6.
Preparation for work.
ATTENTION
!
Do not smoke during replacement of the cylinder.
Do not replace the cylinder, if there is an open flame source nearby.
Keep gas cylinders in a separate well-ventilated room far from
combustible materials. It is prohibited to store and operate gas
cylinders in flats of high-rise buildings, cellars, garrets.
Heating using integrated quartz electric heating element
(for TGH 4200
O
2 model)
1.
Before switching the quartz heating elements on, make sure that the
mains voltage meets the voltage indicated on the appliance nameplate.
The socket should have a grounding contact and the mains should be
reliably earthed.
2.
To select the first heating stage (440 W
- Econom
), put the left key on the
electric heating switch located near the control panel in the upper part of
the appliance body to I position (Fig.3).
3.
To select the second heating stage (880 W
- Normal
), put the right key on
the electric heating switch located near the control panel in the upper part
of the appliance body to II position.
4.
To select the maximum heating power (1320 W
- Express Heat
), put both
keys in I+II position.

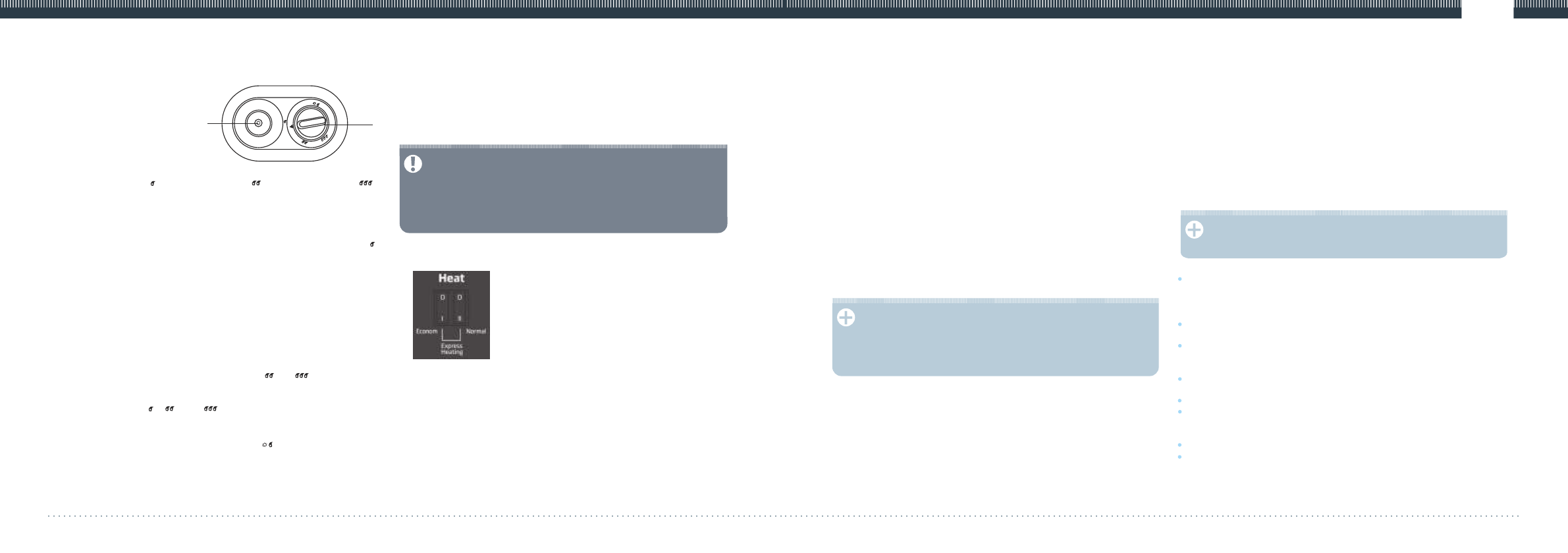

Fig
.3
Fig. 2
2
1
ontrol panel
(fig. 2)
1.
Handle of gas regulation
This handle uses for gas supply to gas burner, also for power modes choice:
1-st mode (position ), 2-nd mode (position ), 3-rd mode (position )
2.Piezo ignition knob
It's used to ignite the burner(s)
11
www.timberk.com
6
www.timberk.com
g
as heater
2
2
2
1
1
1
3
3
3
6.
1.
.
2.
,
,
(
TGH 4200
O
2)
.
3.
,
,
,
.
,
1.
2.
3.
(
TGH 4200
O
2
)
4.
(
TGH 4200
O
2
)
5.
6.
7.
8.
9.
*
10.
11.
(
)
12.
13.
*
14.
*
.
5.
1.
- 1 .
2.
(
) - 1 .
3.
60 - 1 .
4.
- 2 .
5.
- 1 .
6.
- 1 .
7.
- 1 .
:
,
,
.
(
).
.
4.
/
,
,
(
,
).
.
5.
(
),
.
:
-
.
.
-
.
.
6.
.
7.
,
.2
.
8.
.
!
,
.
,
.
.
,
,
,
.
,
.
,
,
.
.
,
-
.
,
.
,
.
,
/
.
:
,
.3
.
