ASSEMBLY AND INSTALLATION
Wall installation of the device
1. Open the packaging and carefully remove the appliance and wall-mounting kit
from it.
2. Remove any foam seals on the edges of the device and release it from plastic
bag.

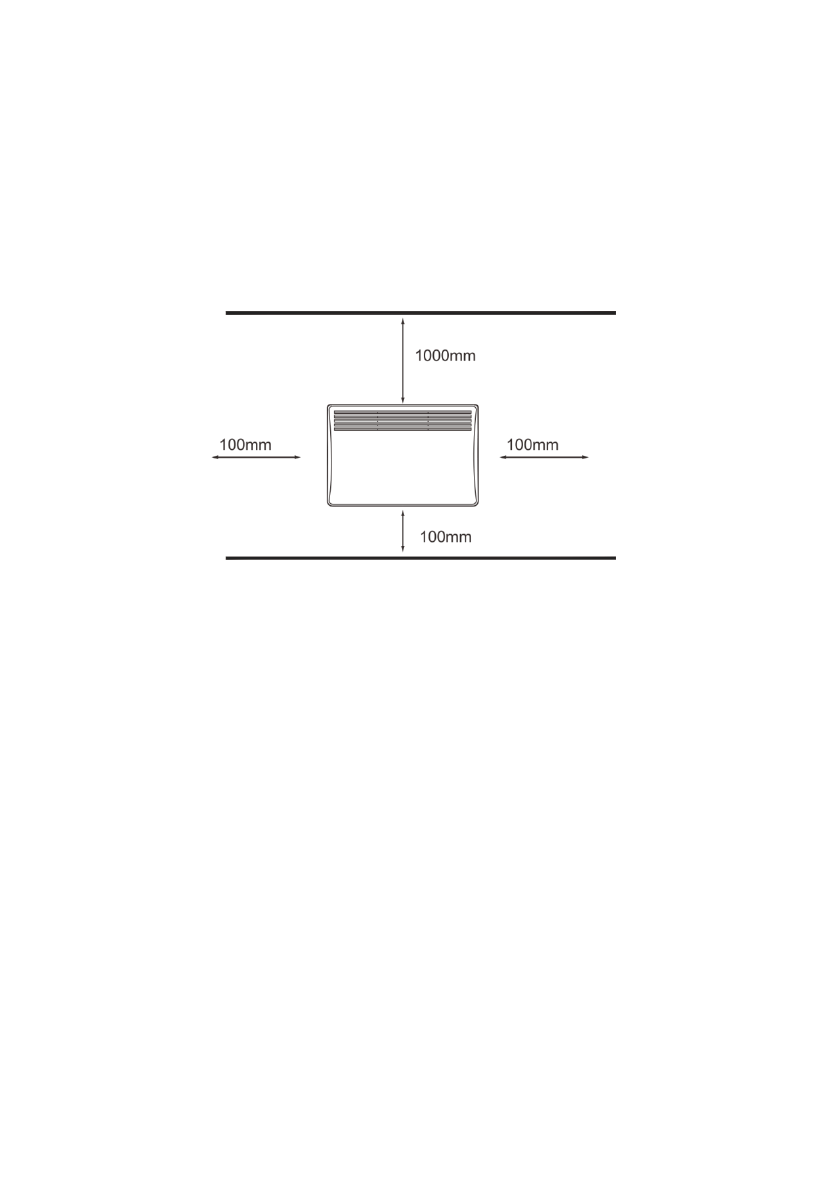

Fig. 3
The dimensions are in mm
3. According to Fig. 3 choose the location for the installation of the device in
compliance with the minimal distances from other objects and floor.
4. Mark the height at which you want to install the convector and put visible
marks on the wall.
5. Drill holes in the wall of the required diameter according to the marks, insert
the dowels*, and tighten the screws*.
6. Attach the mounting brackets to the convector body by inserting them into the
holes in the back panel, and turn them counterclockwise by 90°, then fasten
with screws. Also screw the rubber stop to the bottom center of the conv ector
with a screw (see fig. 4).
7. Mount the convector on the wall, matching the installed mounting screws in the
wall with the holes of the brackets installed on the device.
8. Check that the installation is secure.
*Not included in the delivery set
