www.timberk.com • electric ceiling heater

4

Моdеl

Dimensions, mm

A

B

L

TCH A03 1000

1200

140

1640

TCH A03 2000

1200

250

1620

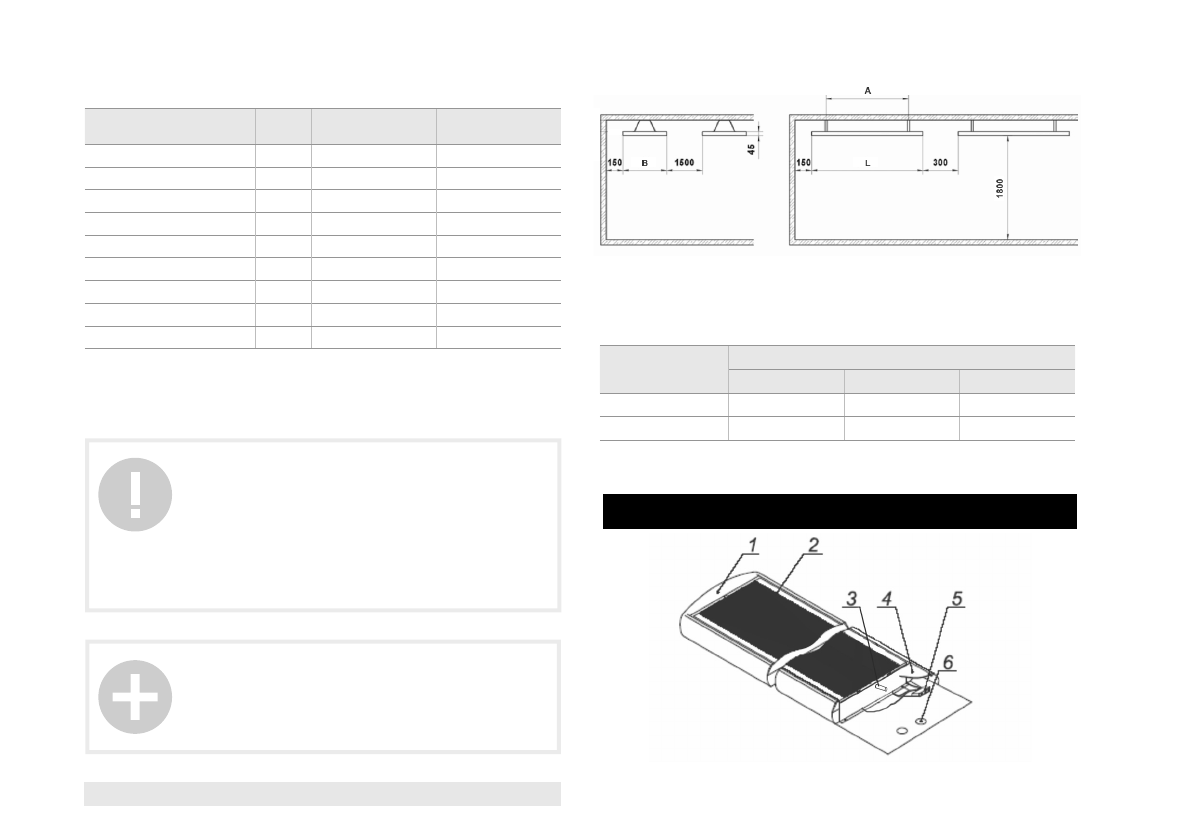

Dimensional characteristics of the heater according to Fig. 1 are given in

Table 2.
Table 2

Dimensional characteristics and minimum distances from heater

to other surfaces

IMPORTANT!

The manufacturer reserves the right to change the set-list of the

device (including liquid and powder components) for different

supplies without prior notice. The changes either in no way influence

the basic technical parameters of the device or may improve them,

and also not violate the legislation or quality standards of the

countries of manufacture, transit and selling.
The changes in the set-list may result in changing of the weight

and dimensions of the device, but not more than by +\- 5-20%

(depending on the product category)

NOTE:

Heated area in the table is indicated for reference, since it

depends both on the heater power, and on room type, ceiling

height, wall/ceiling materials, number and area of glazing,

presence of doors, etc.

Fig.1

Technical specifications

Technical specifications of the TCH A3 infrared heater.

For more detailed description of technical parameters and specifications please refer to our

website www.timberk.com or ask from the official dealers of TIMBERK.

* At long standing in the heated area

Parameter

Meas.

units

TCH A03 1000

TCH A03 2000

Nominal power consumption

W

1000

2000

Rated current

A

4,5

9,1

Rated voltage

V/Hz

220~/50

220~/50

Water protection class

IP20

IP20

Electric protection class

Class I

Class I

Recommended installation height

m

2,5

2,5

Heating area

m

2

10–12

20–22

Weight

kg

6,7

9,6

Dimensions

mm

1640х140х45

1620х250х45

4. INFRARED HEATER DESCRIPTION

Fig.2
