AIR HEATER

9

CLEANING THE FAN

Remove all the impurities found on the nets of the fan
guards. If the fan blades require cleaning, unscrew the
guards. Clean all the elements with compressed air.


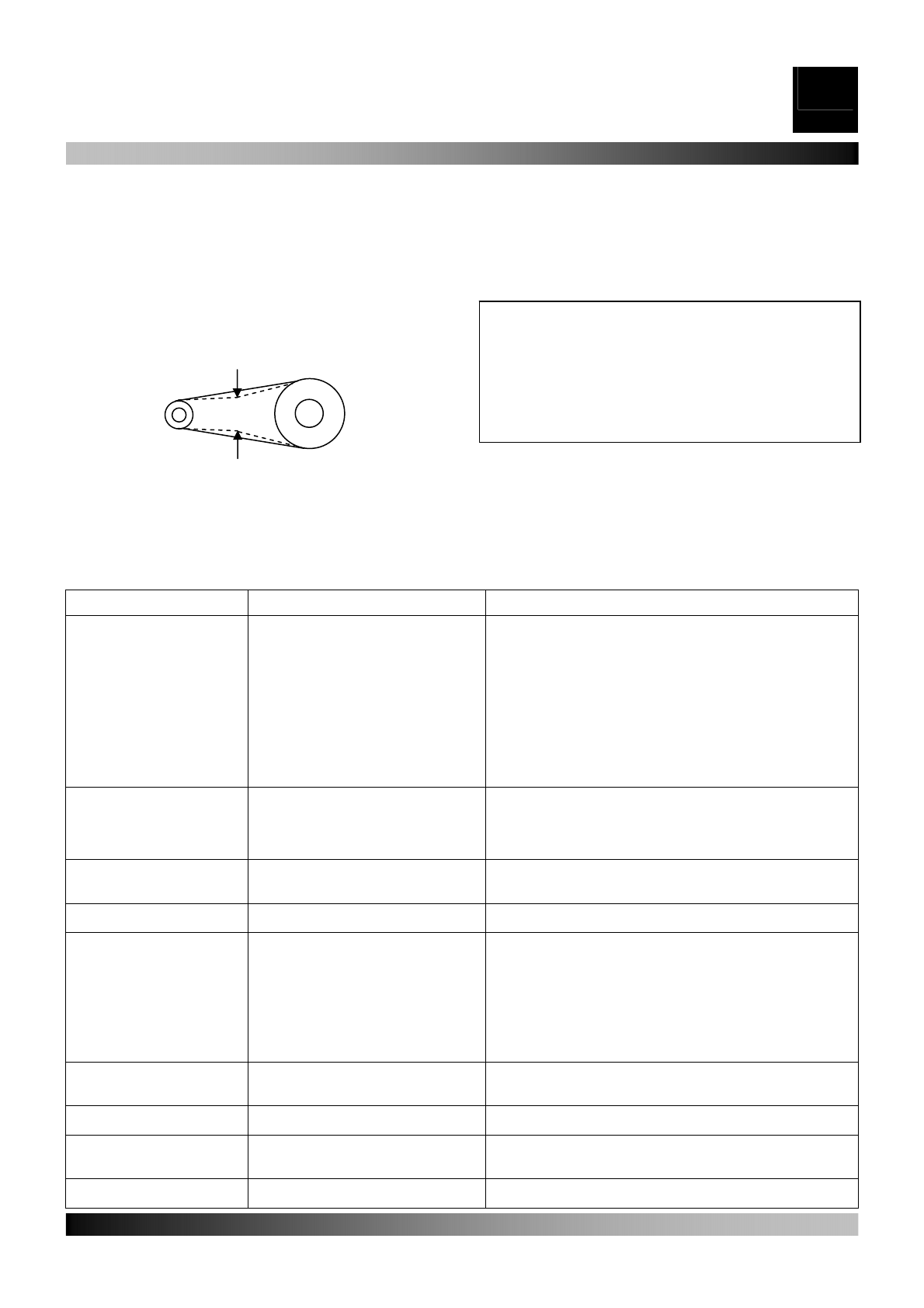

ADJUSTMENT OF THE BELT TRANSMISSION

Minimum once a year, or if needed, check the tension of
the V-belt (8) (Fig.2). The belt must be pressed with one
hand in the middle of its length (Fig.3), and its bending
should amount to 1.5-2 cm. If the bending is significantly
different from the one stated above, adjust it by means of a
screw (7).







CLEANING THE BURNER

The burner may be cleaned and maintained by a qualified
employee of an authorised technical service exclusively.
Therefore, turn to the authorised technical service if help is
needed.

TRANSPORTATION

The heater may be moved by means of a pallet truck or a
forklift truck. The truck must be placed under the heater in
such a way as to distribute the weight of the heater evenly.
Make sure that the device, by means of which the heater is
to be lifted, is adjusted to such weight (the accurate weight
is given in the technical specification).

WARNING

: B

efore the heater is moved, always

disconnect it from power supply, disconnect the fuel
installation discharging the exhaust fumes and
distributing the air. Do not ever touch, transfer or
raise the hot heater. Do not raise the heater manually,
always use appropriate devices and tools for this
purpose.

NOTICED DEFECTS, CAUSES AND METHODS OF REMOVAL

Defects

Causes

Methods of removal

The heater does not start
operation










1. Problem with supply voltage.




2. Thermostat TSS switches off the
burner.



3. Bad settings of the room thermostat
TA.

1. Check whether the change-over switch (2) functions properly.
1. Check the power cable.
1. Check the electrical connections.
1. Check the fuse.
1. Adjust the change-over switch to the correct position.
2. See the manual concerning the operation of the thermostat

TSS.

2. Check the fuel flow and burner settings.
2. Make sure that the air inlet is not blocked.
2. Make sure that the air outlet is not blocked.
3. Check the thermostat TA settings.
3. Check whether the thermostat TA functions properly.

The thermal relay RT is
switched on and the control
lamp (10). is lighted



1. Excessive power consumption by the
fan motor.




1. Remove possible impurities blocking the inlet or the outlet of
air, check the cup or the ducts, check the tension of the V-belt.
1. Check – measure whether the power consumption does not
exceed the permissible maximum value.

Thermostat TS is switched on
and the control lamp (9) is
lighted.

1. The incineration chamber is
overheated.


1. Perform the same activities as in the case of the thermostat
TSS.
1. Replace the thermostat

The burner motor functions,
but there is no ignition.

1. Bad functioning of the burner.


1. Read the burner manual.


The fan does not start
operation or functions with a
delay.




1. No voltage

2. Thermostat TV is broken.
3. Damaged condenser
4. Faulty motor winding.
5. Blocked bearings of the motor, fan.
6. Blocked fan.

1. Perform the same activities as in the case of ”Problems with
voltage“.
1. Check the thermal relay and the contactor.
2. Check the setting of the thermostat TV, or replace it.
3. Replace the condenser
4. Replace the fan motor
5. Replace the bearings.

6. Unblock the fan.

The fan produces noise and
vibration


1. The impurities or foreign matter on the
fan blades.
2. Limited air circulation.

1. Remove the foreign matter and impurities.

2. See previous manuals.

Insufficient heating

1. Defective burner
2. Wrong fuel.

1. Read the burner manual.
2. Read the burner manual.

The burner does not function


1. Improperly mounted burner.
2. The burner is connected to the wrong

socket.

1. Read the burner manual.
2. Check the markings of the control panel in the manual.

The fan does not blow out air

1. Improper connection of the motor.
2. Improper tension of the V-belt.

1. Check the electrical diagram in the manual.
2. Adjust the belt transmission.

1.5-2 cm

Fig.3
