– 3

–

Check the contents of the pack before
unpacking.

–

In case of transport damage inform ven-
dor immediately



Read the oil level display when the de-
vice is not running. The oil level must be
above the two pointers.



Unscrew the fastening screws of the
device hood; remove the device hood.



Cut off tip of oil container cover



Fasten the device hood.



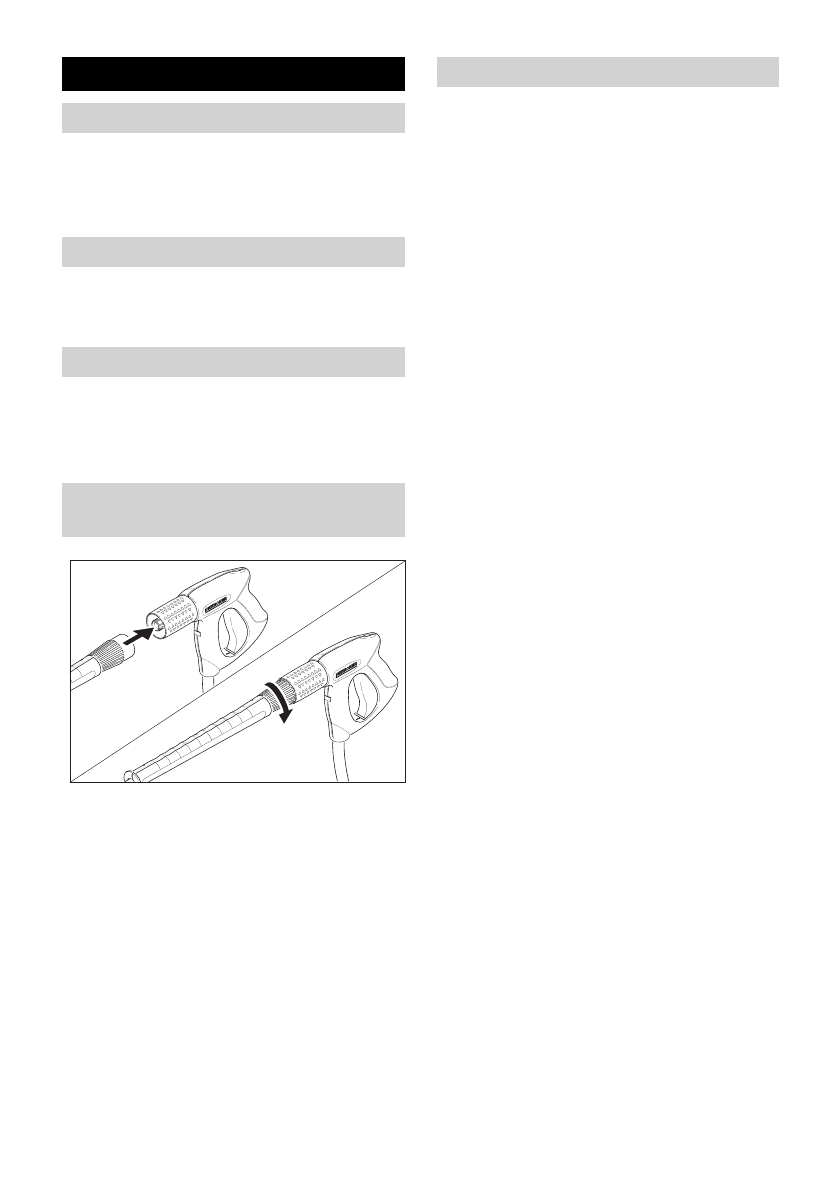

Connect ray tube to hand spray gun



Tighten the screw connection of the
spray lance fingertight.



Mount the nozzle on the spray pipe
(markings on the adjustment ring at the
top).



Insert the crank in the hose drum shaft
and lock it in.



Connect the high pressure hose to the
hand-spray gun.



Lock in the cable hook in the side-hole
on the handle.



Tighten the high-pressure connection
as required.



Lever out the safety clip of the handspray
gun using a screw-driver (Picture A).



Place the hand-spray gun upside down
and insert the end of the high pressure
hose till the end. Ensure that the lose
disc falls right below on the hose end
(Picture B).



Press the safety clip back into the hand-
spray gun. The hose can be pulled out
max. 1 mm if it has been installed cor-
rectly. Otherwise, it means the disc has
been installed wrongly (picture C).



Before rolling up, stretch out the high
pressure hose.



Wind the high pressure hose in uniform
layers on the hose drum by rotating the
crank.  Select the rotation direction in
such a way that the high pressure hose
does not get bent.

Before Startup

Unpacking

Check oil level

Activate deaeration of oil container

Install hand spray gun, spray lance

and nozzle

1.

2.

Attaching the Accessories

In devices without hose drum:

In devices without hose drum:

For hand-spray guns with threaded con-
nection:

For hand-spray guns without threaded
connection:

In devices without hose drum:

17

EN
