安装连接

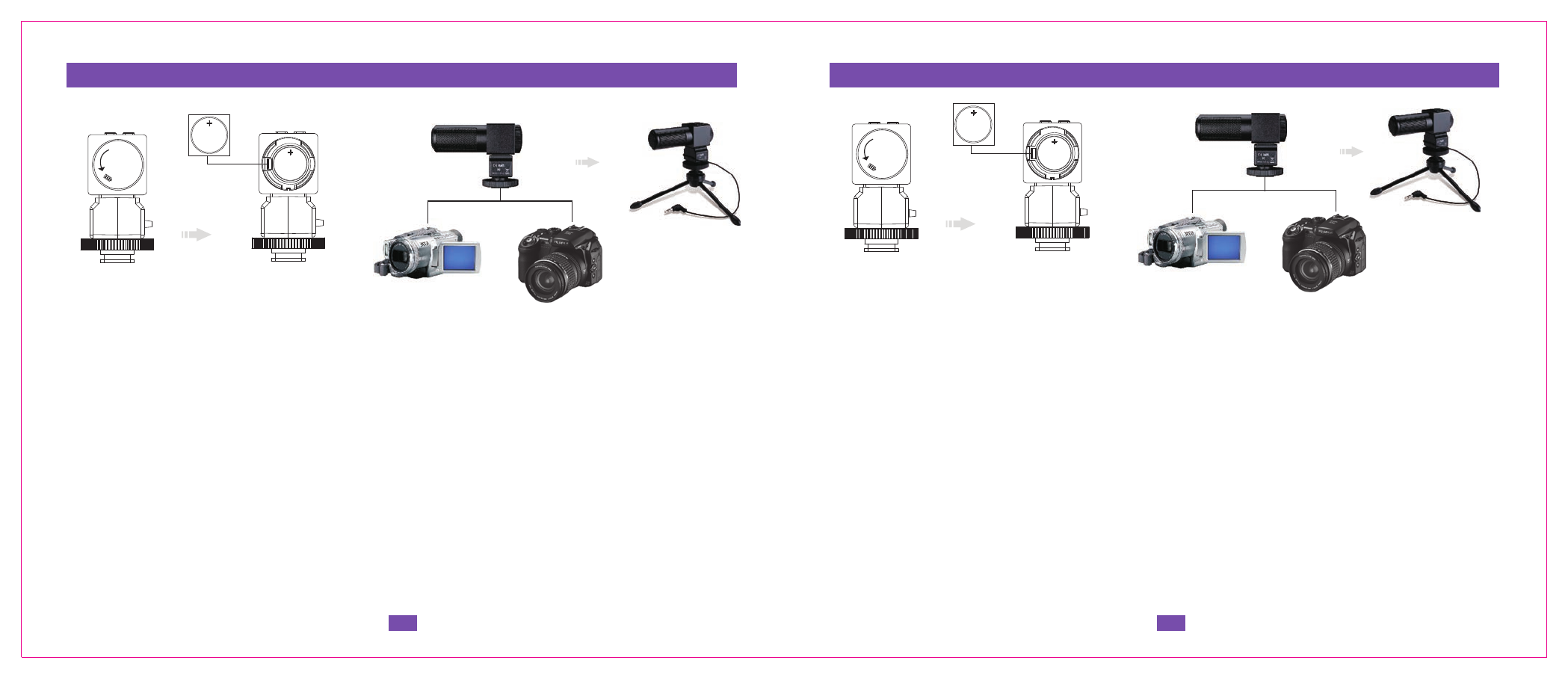

1. 电池安装与拆卸

    如图一：按电池仓盖上Unlock的方向将电池盖旋开，将配置的CR2032型钮扣电池装入电池卡座；安装电池时，将标

                    示 有“+”符号的面朝上，按压电池至装置卡位中，然后以顺时针方向将电池盖旋紧。

                    拆 卸电池时，将电池卡座内的金属卡扣向外推动，电池会自动弹出

2. 麦克风安装

    如图二：当麦克风安装到摄像机或单反相机时，将靴型连接器装入设备的靴型座中，顺时针方向将其紧固，当靴型座被

                   占 用，或应用于其它设备时，可将底部的标准型支架连接螺母安装到支架上

3. 将

Ø

3

.

5插头插入设备的麦克风接口（注意：需插到位）

4. 防风罩，可过滤风流影响，确保拾音质量

0 9

0 4

 Unlock

CR

20

32

3V

C R 2 0 3 2

LITHIUM BATTERY

3 V

C R 2 0 3 2

LITHIUM BATTERY

3 V

图二

图一

Installation Instruction

1

.

Battery Installation and Remove

Pic 1: Unscrew the battery cover according to the “Unlock” direction on the battery cover, put the supplied button battery (CR2032)

     into the battery holder with correct polarity (put the side with symbol

upwards) and press it till it is fixed, then screw up the

     cover clockwise. When removing the battery, push the metal buckle on the compartment outwards, the battery will pop up

    automatically

2. Microphone

     Pic 2: When the microphone is mounted on the camera or DSLR, screw the hot shoe connector to the hot shoe holder

     and fasten it clockwise, when the hot shoe is occupied or used by other device, please mount the bottom standard connecting nut

     on the microphone tripod

3. Plug the

Ф

3.5 connector into the microphone socket (attention: should be inserted completely)

4. Windscreen: filter the impact of airflow to ensure the quality of vocal pick up

“+”

 battery

Installation

of the device

 Unlock

CR

20

32

3V

C R 2 0 3 2

LITHIUM BATTERY

3 V

C R 2 0 3 2

LITHIUM BATTERY

3 V

Pic 2

Pic 1
