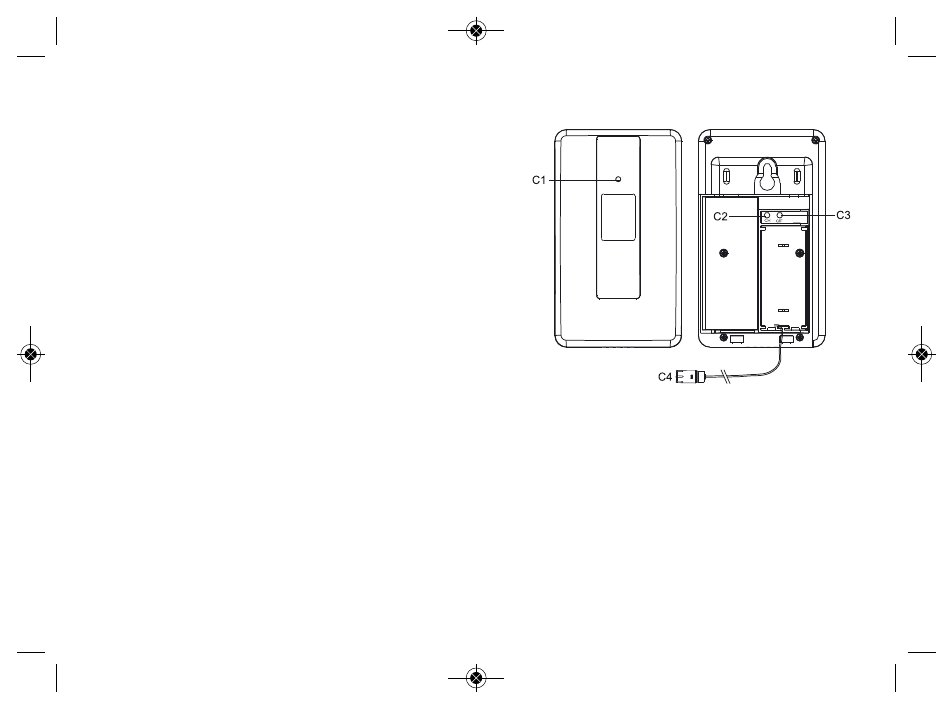

the thermo remote Sensor :

C1: Transmission Indication LED
C2: “Channel” button
C3: “

о

С/

о

F” button

C4:  outdoor thermo and humidity sensor

getting started

Open the battery covers, which stand on the two columns
of the main station, put 4 Pcs AA size battery into the
compartment according to “+”,”-” indicator, then the LCD
will be in full display for 2 seconds, it will begin to meas-
ure the current indoor temperature, humidity and the data
of the air pressure, and enter to search the outside
remote sensor. This searching will last for at best 2 min-
utes. Put 2 AAA size battery into the remote sensor
according to the “+””-” indicator in the compartment, it will be in full display for 2 seconds and dis-
play the current temperature and humidity. Then you can see the blink of the channel numbers, press
the backside “CH” button to choose the required channel number, after confirmed the channel num-
ber for 8 seconds, the indicator light will flash one time. It means that it had begin to send the sig-
nal of temperature and humidity, at the same time, the outside temperature and humidity on the main
station had received the signal of remote sensor in the display zone. Once the indicate light of the
remote sensor flash one time, it means that it sends the data of the temperature and humidity, the
main station will display the temperature and humidity of the remote sensor after receiving the sig-
nals successfully. The number inside the left circle is the channel number of the remote sensor. After
