Appendix
5-2-1 Configuring 2/4/5.1/7.1-Channel Audio

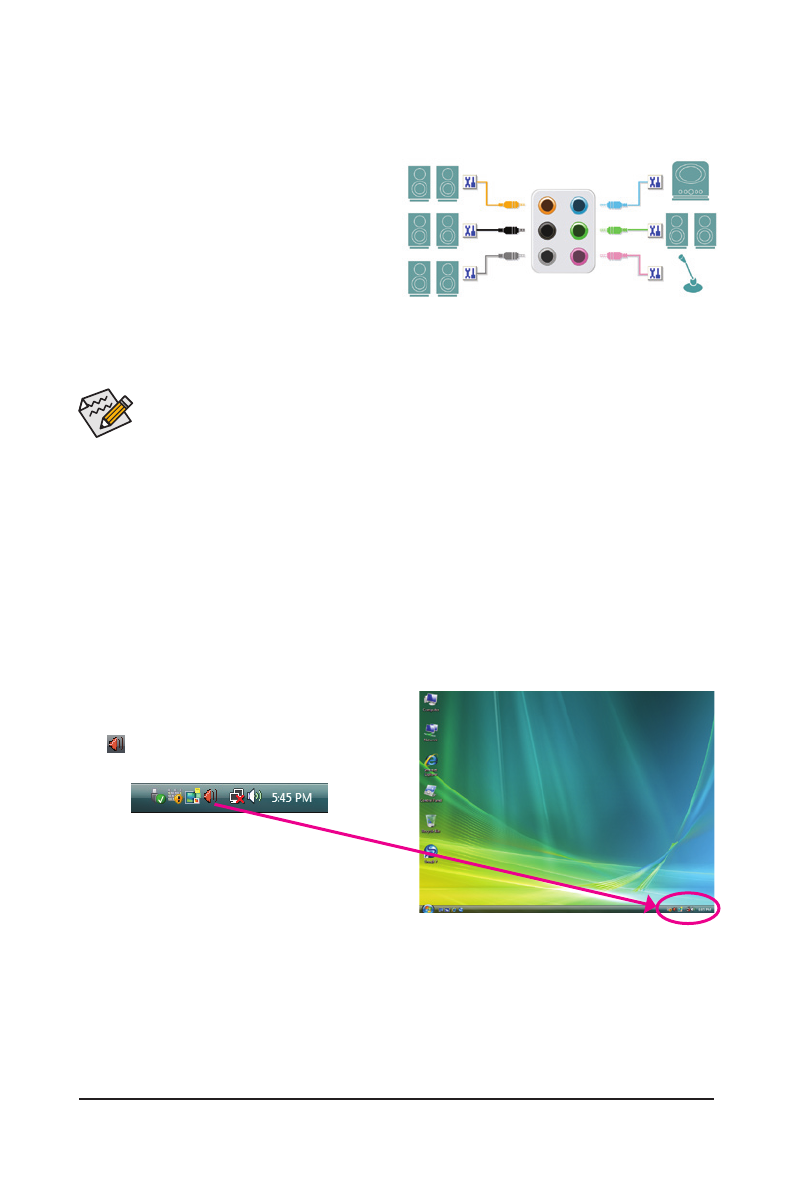

The motherboard provides six audio jacks on the
back panel which support 2/4/5.1/7.1-channel
(Note)
audio. The picture to the right shows the default audio
jack assignments.
The integrated HD (High Definition) audio provides
jack retasking capability that allows the user to change
the function for each jack through the audio driver.
For example, in a 4-channel audio configuration, if a Side speaker
j
/Rear speaker
k
is plugged into the
default Center/Subwoofer speaker out jack, you can retask the Center/Subwoofer speaker out jack to be Side
speaker
j
/Rear speaker
k
out.
5-2 Configuring Audio Input and Output
High Definition Audio (HD Audio)
HD Audio includes multiple high quality digital-to-analog converters (DACs) that support 44.1KHz/48KHz/
96KHz/192KHz sampling rate. HD Audio features multistreaming capabilities that allow multiple audio
streams (in and out) to be simultaneously processed. For example, users can listen to MP3 music, have an
Internet chat, make a telephone call over the Internet, and etc. all at the same time.
A. Configuring Speakers
(The following instructions use Windows Vista as the example operating system.)
•
To install a microphone, connect your microphone to the Mic in jack and manually configure the
jack for microphone functionality.
•
Audio signals will be present on both of the front and back panel audio connections simultane-
ously. If you want to mute the back panel audio (only supported when using an HD front panel
audio module), refer to instructions on the next page.
Step 1:
After installing the audio driver, the
HD Audio Manager
icon
will appear in the notification area. Double-click
the icon to access the
HD Audio Manager
.
Center/Subwoofer
Speaker Out
Line In
Rear Speaker Out
Front Speaker Out
Mic In
Side
Speaker Out
(Note) 2/4/5.1/7.1-Channel Audio Configurations:
Refer to the following for multi-channel speaker configurations.
•
2-channel audio: Headphone or Line out.
•
4-channel audio: Front speaker out and Side
j
/Rear
k
speaker out.
•
5.1-channel audio: Front speaker out, Side
j
/Rear
k
speaker out, and Center/Subwoofer speaker out.
•
7.1-channel audio: Front speaker out, Rear speaker out, Center/Subwoofer speaker out, and Side speaker out.
j
Only for GA-P55-UD4P.
k
Only for GA-P55-UD4.
