Hardware Installation

- 16 -

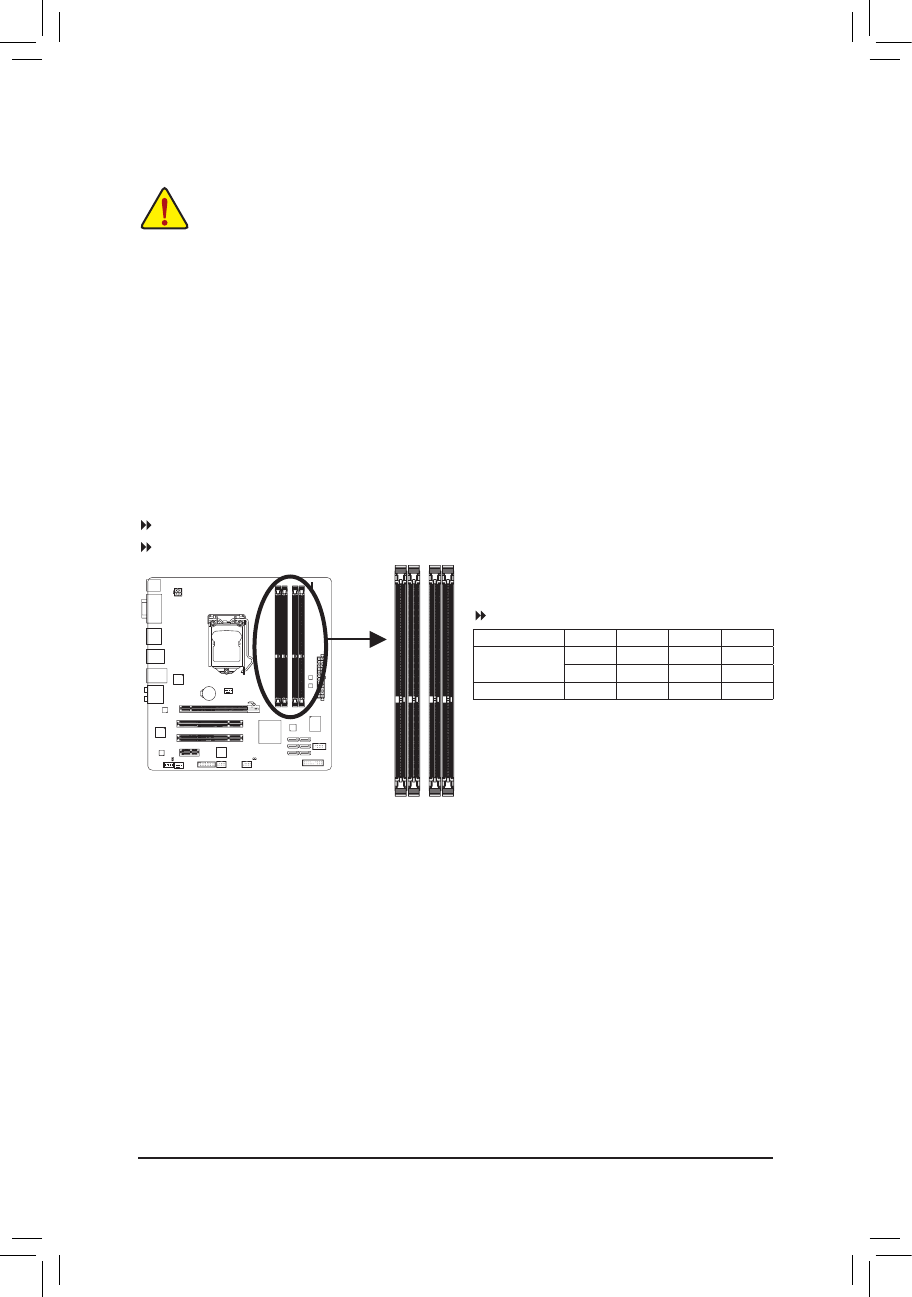

1-4  Installing the Memory

Dual Channel Memory Configurations Table

Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode.

Dual Channel mode cannot be enabled if only one DDR3 memory module is installed.

1.

When  enabling  Dual  Channel  mode  with  two  or  four  memory  modules,  it  is  recommended  that

2.

memory of the same capacity, brand, speed, and chips be used for optimum performance.

1-4-1  Dual Channel Memory Configuration

This  motherboard  provides  four  DDR3  memory  sockets  and  supports  Dual  Channel  Technology.  After  the

memory  is  installed,  the  BIOS  will  automatically  detect  the  specifications  and  capacity  of  the  memory.  En

-

abling Dual Channel memory mode will double the original memory bandwidth.
The four DDR3 memory sockets are divided into two channels and each channel has two memory sockets as
following:

Channel 0: DDR3_1, DDR3_2
Channel 1: DDR3_3, DDR3_4

(SS=Single-Sided, DS=Double-Sided, "- -"=No Memory)

Read the following guidelines before you begin to install the memory:

Make sure that the motherboard supports the memory. It is recommended that memory of the

•

same capacity, brand, speed, and chips be used.
(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
Always turn off the computer and unplug the power cord from the power outlet before installing

•

the memory to prevent hardware damage.
Memory modules have a foolproof design. A memory module can be installed in only one direc-

•

tion. If you are unable to insert the memory, switch the direction.

DDR3_1 DDR3_2 DDR3_3 DDR3_4

Two Modules

DS/SS

- -

DS/SS

- -

- -

DS

- -

DS

Four Modules

SS

SS

SS

SS

DDR3_1 DDR3_2

DDR3_3 DDR3_4
