GA-73PVM-S2 Motherboard

- 18 -

1-6

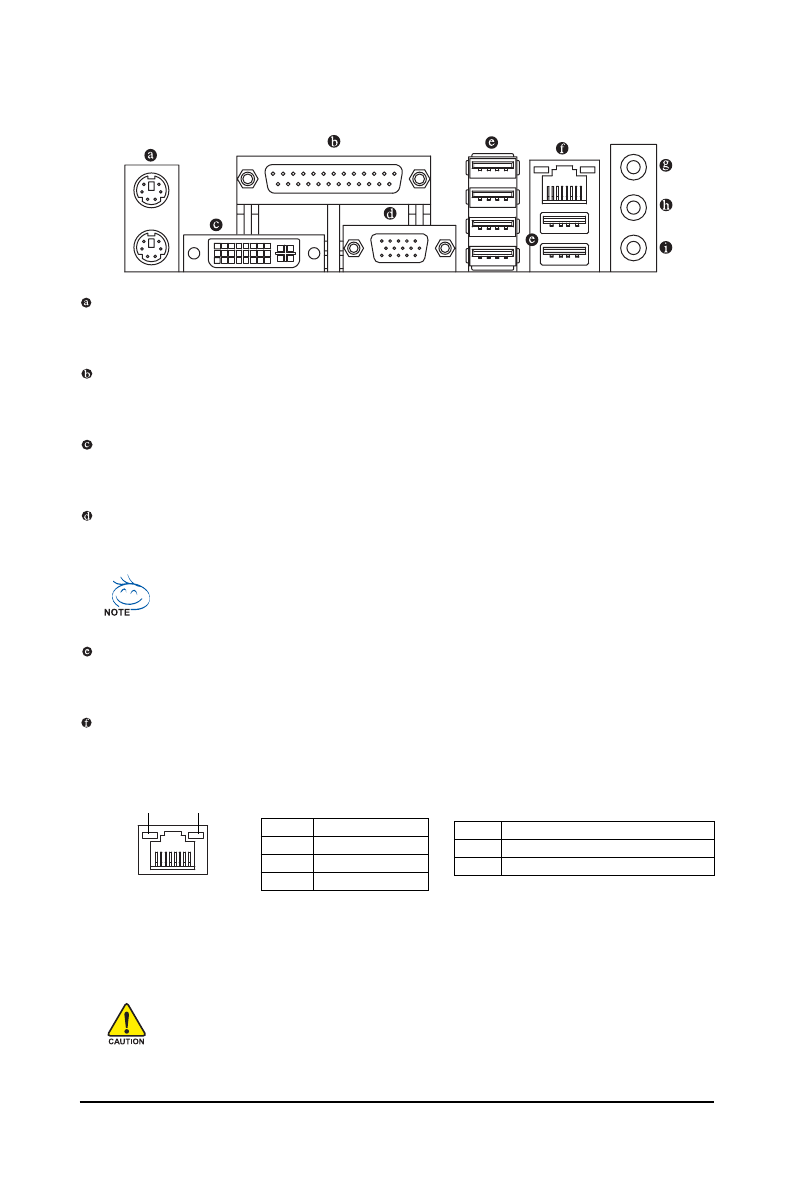

Back Panel Connectors

PS/2 Keyboard and PS/2 Mouse Port

Use the upper port (green) to connect a PS/2 mouse and the lower port (purple) to connect a PS/2
keyboard.

Parallel Port

Use the parallel port to connect devices such as a printer, scanner and etc. The parallel port is also
called a printer port.

DVI-D Port

The DVI-D port supports DVI-D specifictation. Connect a monitor that supports DVI-D connection to
this port.

D-Sub Port

The D-Sub port supports a 15-pin D-Sub connector. Connect a monitor that supports D-Sub
connection to this port.

•

When removing the cable connected to a back panel connector, first remove the cable
from your device and then remove it from the motherboard.

•

When removing the cable, pull it straight out from the connector. Do not rock it side to side
to prevent an electrical short inside the cable connector.

Activity LED

Connection/
Speed LED

LAN Port

Activity LED:

State

Description

Blinking

Data transmission or receiving is occurring

Off

No data transmission or receiving is occurring

Connection/Speed LED:

State

Description

Orange

1  Gpbs data rate

Green

100 Mpbs data rate

Off

10 Mpbs data rate

USB Port

The USB port supports the USB 2.0/1.1 specification. Use this port for USB devices such as an
USB keyboard/mouse, USB printer, USB flash drive and etc.

RJ-45 LAN Port

The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following
describes the states of the LAN port LEDs.

This motherboard provides two ports for video output,  DVI-D and D-Sub, and supports dual
view function.
