Chapter 2: Hardware installation

 | 9

FX9830M

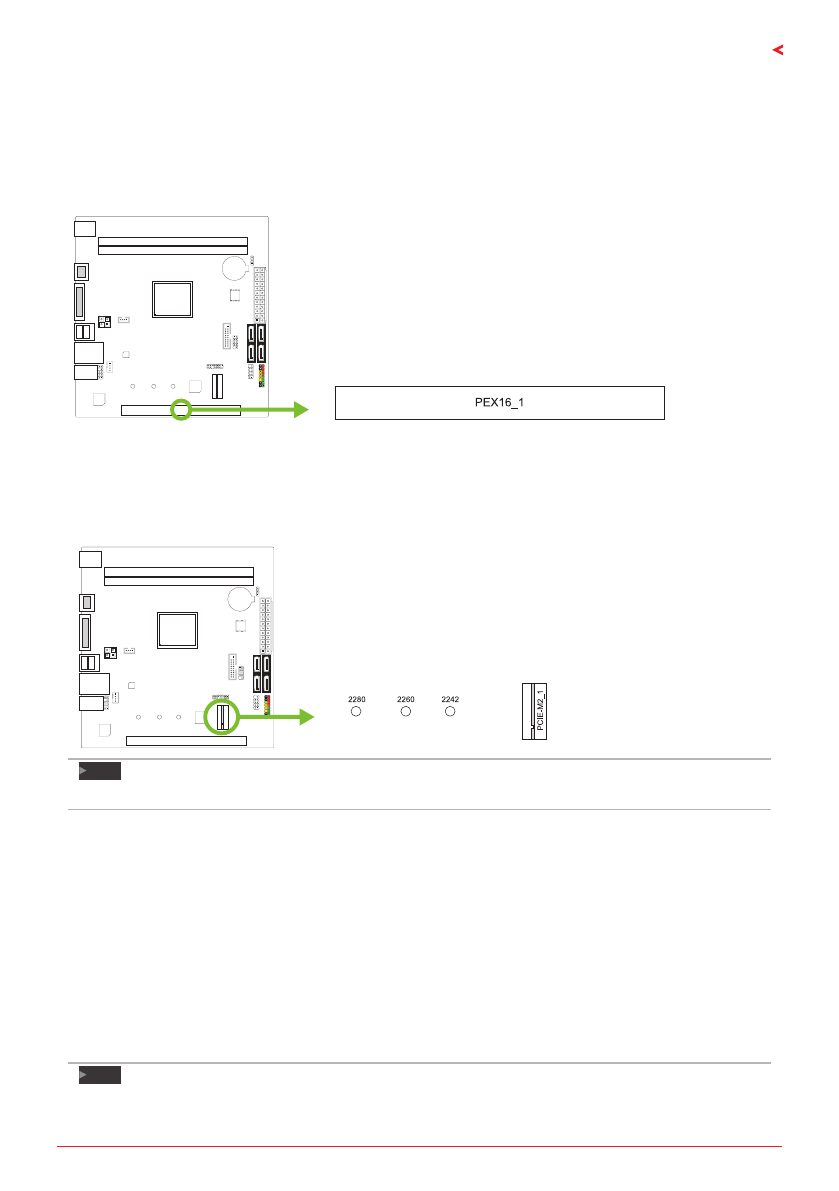

2.3 Expansion Slots

PEX16_1: PCI-Express Gen3 x16 Slot (x8 speed)

•   PCI-Express 3.0 compliant.

•   Theoretical maximum bandwidth using two slots simultaneously is 8GB/s for each slot, a

total of 16GB/s.

PCIE-M2_1: M.2 (M Key) Slot

• 

The M.2 slot supports M.2 Type 2242/2260/2280 SSD module. When installing M.2 SSD

module, please place the screw and hex pillar to correct position.

•   The M.2 slot supports M.2 SATA III (6.0 Gb/s) module and M.2 PCI Express module up to

Gen3 x2 (16Gb/s).

Note

»

When PCIE-M2_1 slot is occupied, the SATA2 connector will be disabled.

Install an Expansion Card

You can install your expansion card by following steps:

•   Read the related expansion card’s instruction document before install the expansion

card into the computer.

•   Remove your computer’s chassis cover, screws and slot bracket from the computer.

•   Place a card in the expansion slot and press down on the card until it is completely

seated in the slot.

•   Secure the card’s metal bracket to the chassis back panel with a screw (This step is only

for installing a VGA card.).

•   Replace your computer’s chassis cover.

•   Power on the computer, if necessary, change BIOS settings for the expansion card.

•   Install related driver for the expansion card.

Note

»

Please be note that you will need to use M2 type screwdriver if you want to install or uninstall the

screw. It is recommended not to use a screwdriver that does not meet the specifications, otherwise

the screw may be damaged.
