English

19

H310CM-HDV/M.2

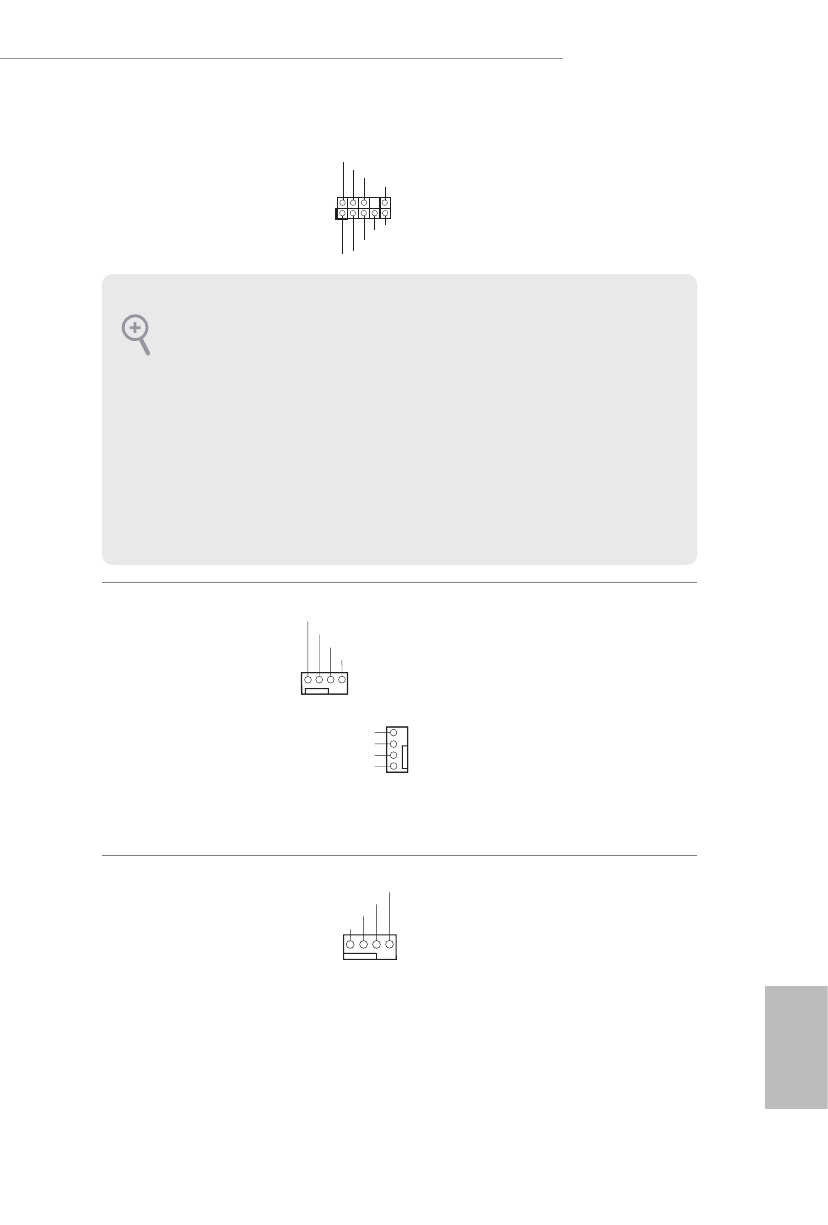

Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.1, No. 20)

This header is for
connecting audio devices
to the front audio panel.

Chassis/Water Pump Fan
Connectors
(4-pin CHA_FAN1/WP)
(see p.1, No. 4)

(4-pin CHA_FAN2/WP)
(see p.1, No. 13)

This motherboard
provides two 4-Pin water
cooling chassis fan
connectors. If you plan to
connect a 3-Pin chassis
water cooler fan, please
connect it to Pin 1-3.

CPU Fan Connector
(4-pin CPU_FAN1)
(see p.1, No. 2)

This motherboard
provides a 4-Pin CPU fan
(Quiet Fan) connector.
If you plan to connect a
3-Pin CPU fan, please
connect it to Pin 1-3.

J _ S E N S E

O U T 2 _ L

1

M I C _ R E T

P R E S E N C E #

G N D

O U T 2 _ R

M I C 2 _ R

M I C 2 _ L

O U T _ R E T

1.  High Definition Audio supports Jack Sensing, but the panel wire on the chassis

must support HDA to function correctly. Please follow the instructions in our
manual and chassis manual to install your system.

2.  If you use an AC’97 audio panel, please install it to the front panel audio header by

the steps below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for the HD audio panel only. You don’t need to
connect them for the AC’97 audio panel.
E. To activate the front mic, go to the “FrontMic” Tab in the Realtek Control panel
and adjust “Recording Volume”.

GN D

FAN_VOLTAGE

CHA_FAN_SPEED

FAN_SPEED_CONTRO L

4
3
2
1

FAN_VOLTAGE

GND

CPU_FAN_SPEED

FAN_SPEED_CONTROL

1     2     3    4

GN D

FAN_SPEED

FAN_SPEED_CONTRO L

FAN_VOLTAGE

1     2     3    4
