Connector Function Guide

Pin Numbers for

ISO Connectors

Cable Color

Functions

External Power
Connector

A–4
A–5
A–7
A–8

Speaker
Connector

B–1
B–2
B–3
B–4
B–5
B–6
B–7
B–8

Yellow
Blue/White
Red
Black

Purple
Purple/Black
Gray
Gray/Black
White
White/Black
Green
Green/Black

Battery
Power Control
Ignition (ACC)
Earth (Ground)
Connection

Rear Right (+)
Rear Right (–)
Front Right (+)
Front Right (–)
Front Left (+)
Front Left (–)
Rear Left (+)
Rear Left (–)

Battery wire (Yellow)

6

Ignition wire (Red)

7

FM/AM antenna
input

3

Antenna Cord (ISO)

1

Antenna Conversion Adaptor (ISO–JASO)
(Accessory

3

)

2

Wiring harness
(Accessory

1

)

16

If no connections are
made, do not let the wire
come out from the tab.

18

A–7 Pin (Red)

8

A–4 Pin (Yellow)

9

Connector A

Connector B

Fuse (10A)

13

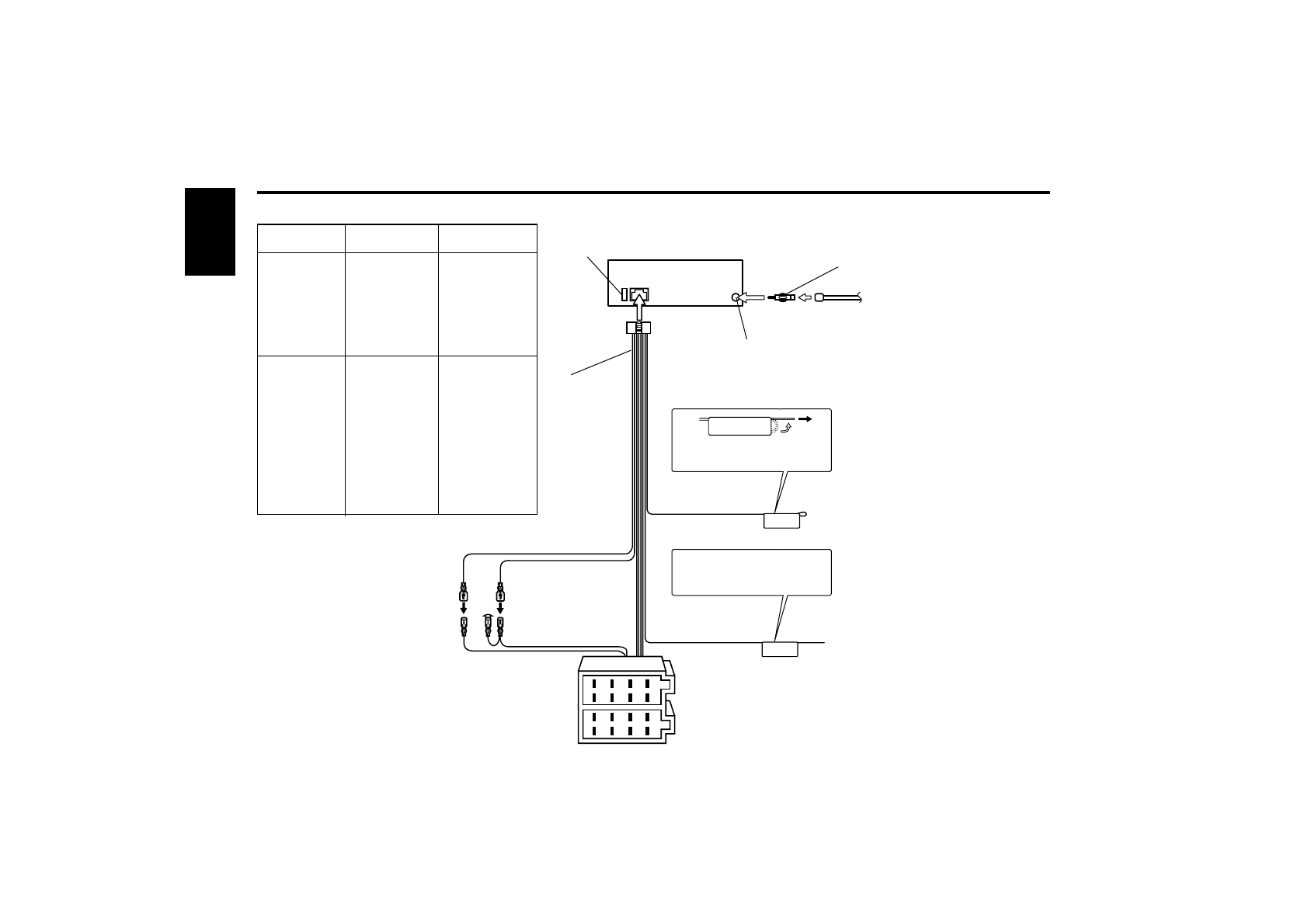

Connecting Wires to Terminals

Motor antenna control wire (Blue)

Depending on what antenna you are using,
connect either to the control terminal of the
motor antenna, or to the power terminal for
the booster amplifier of the film-type
antenna.

Do not let the wire come out
from the tab.

Not Used
