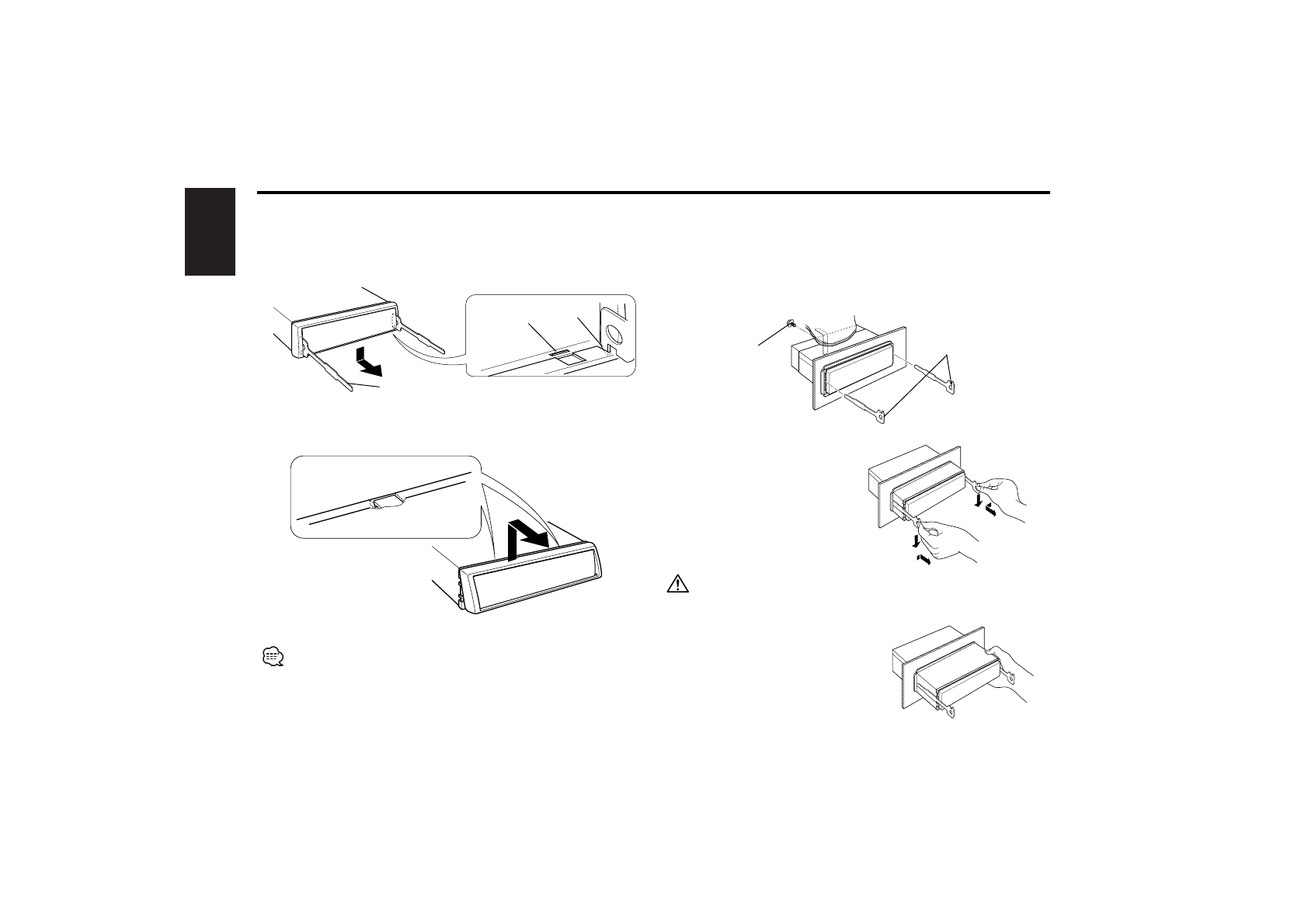

Removing the hard rubber frame

2

When the lower level is removed, remove the upper two
locations.

The frame can be removed from the top side in the same manner.

Catch

Lock

1

Engage the catch pins on the removal tool and remove the
two locks on the lower level.
Lower the frame and pull it forward as shown in the figure.

■

Removing the Unit

4

Lower the removal tool
toward the bottom, and
pull out the unit halfway
while pressing towards the
inside.

5

Pull the unit all the way out
with your hands, being
careful not to drop it.

Be careful to avoid injury from the catch pins on the removal tool.

1

Refer to the section <Removing the hard rubber frame> and
then remove the hard rubber frame.

2

Remove the screw (M4

×

8) on the back panel.

3

Insert the two removal tools deeply into the slots on each
side, as shown.

Accessory

2

Removal tool

Accessory

2

Removal tool

Screw (M4X8)
(commercially
available)

Installation
