4. APPLIANCE DESCRIPTION

5. DELIVERY SET

6. APPLIANCE CONTROL

The conditioner consists of indoor and outdoor units connected by

pipelines. The conditioner may be controlled from a remote control board

or from an indoor unit control panel. In the air conditioner of this series is

built Nano silver filter, Plazma filter, which can removed by opening front

panel of the indoor unit

Complete set of air conditioner (split system) includes:
Conditioner unit for indoor installation -1 piece
Conditioner unit for outdoor installation -1 piece

1. Conditioner unit for indoor installation.
2. Front panel.
3. Air-intake grille of the indoor unit.
4.  Сontrol panel of the indoor unit.
5. Blinds (deflectors) for distribution of treated air.
6. Air outlet of the indoor unit.
7. Copper tube for gas (freon), connection line*.
8. Tube for condensate removal*.
9. Air-outlet grille of the outdoor unit.
10. Conditioner unit for outdoor installation.
11. Air-intake grilles of the outdoor unit.

Remote control board -1 piece
Batteries for remote control board - 2 pcs.
User manual -1 piece
Guarantee slip -1 piece
Packing of indoor-installation unit -1 piece
Packing of outdoor-installation unit -1 piece

* not supplied

1. Button POWER. With this button, you can turn on and off the air

conditioner
2. Power indicator
3. Indicator night operation
4. Timer indicator
5. Indicator compressor
6. Temperature Indicator

The conditioner may be controlled from a remote control board or from an

indoor unit control panel.

Description of indoor unit control panel

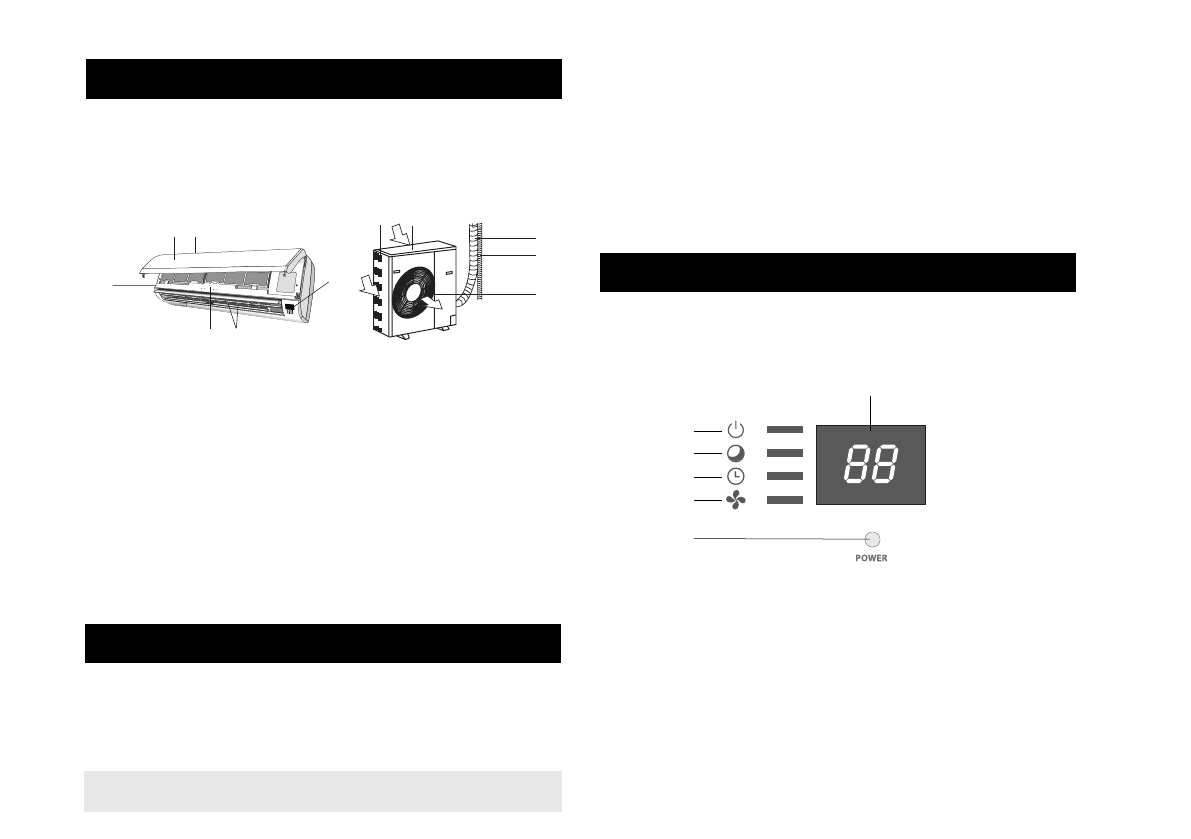

Fig. 2

Fig. 1

11

10

8

7

9

3

4

2

5

6

1

6

1

2

3
4
5
