6.

EN

Electric air conditioner

portable type

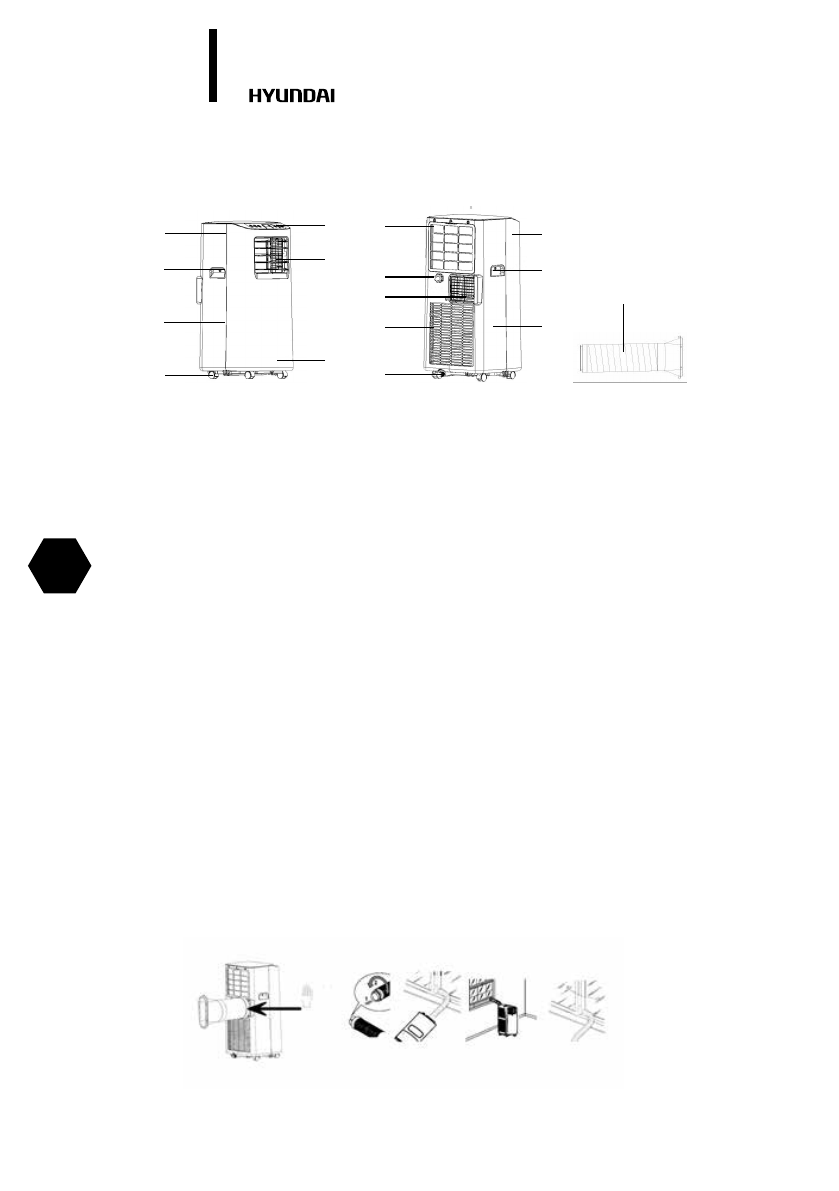

4. NAME OF THE PARTS

5. APPLIANCE CONTROL

Fig. 3

Fig. 4

Fig. 5

1

2

8

10

13

15

9

11

14

16

12

4

6

7

5

3

1. Top cover
2.Panel control
3.Handle
4. Air outlet grille
5.Rear side body

6. Front side body

7. Castors
8. Ventilation grille
9. Rear side body
10. The opening for the drain hose
11.Handle
12. The opening for the heat air
13. Air outlet grille
14. Rear side body
15. Castors
16.Air exhaust hose

AIR-CONDITIONING WITHOUT INSTALLATION

Just a few simple steps and your comfort is ensured: Install the air exhaust hose in the housing
at the back unit (Fig. 1). Install the air conditioner near a window and put an end to hose outlet
window (Fig. 2,3,4).

Adjust the length of the hose to reach the window. Make sure the air exhaust hose does not
interfere with anything.

Fig. 6

Fig. 7

Fig. 8

Fig. 9

Fig.10
