REMOTE CONTROL

12.

Button «DISPLAY». Using this button you can may to clear the display on the indoor unit.

Press it again to light the display.

Work with remote control board

Mounting and replacement of batteries: mount two LR03 alkaline batteries, according to polarity
indicated on the remote control board.
In order to avoid malfunction of the remote control board do not insert used batteries or batter-
ies of various types.
If the conditioner is not used for a long time, remove batteries from the board or else electrolyte
may leak and damage the board.
In normal operation of the conditioner average service life of batteries will be about a half-year.

Replace batteries, if command receiving is not conirmed with an audio signal, or if the display

does not show a sign of command transfer. When generating commands from the remote con-
trol board, point an IR-radiator at a remote-control signal receiver situated on the indoor unit.
Hold the remote control board at the distance of no more than 8 m from the indoor unit. The re-
mote control board will not work, if there are any curtains, doors or other things between it and
the indoor unit. Protect the board from water and exposure to direct sunlight and heat sources.

7. OPERATING MODES

AUTO mode (SMART)

The auto mode is turned on and of with the use of the button «MODE» on the remote control

board.
1. While working in the Auto mode the temperature is maintained 25 ºC. Microcompressor will

automatically select Cool, Fan, Heat or Dry mode.

2. If the AUTO mode does not provide comfort conditions, select the mode manually. In auto

-

matic mode, depending on air temperature in the room, the conditioner will select needed
temperature parameters of its operation in the following order:

COOL, HEAT and FAN

1.  Turn the conditioner on pressing the «

ON/OFF»

 button.

2.  Pressing the

«MODE» button, select COOL, HEAT or FAN mode manually.

3.  Pressing the «

TEMP»

 button (up-down), set the desired air temperature indoors (except for

FAN mode).

4.  Pressing the «

FAN SPEED»

 button on the remote control board, select the fan rotation speed:

AUTO, LOW, MIDDLE, HIGH, and the conditioner will start working in accordance with the

selected setting.

5.

To turn the conditioner of, press the

«

ON/OFF»

 button once again.

In the FAN mode air temperature indoors is not set.

DRY

Turn the conditioner on pressing the «

ON/OFF»

 button. Pressing the

«MODE»

 button, select the

DRY mode. The conditioner will start working in the set mode. To turn the conditioner of, press

the «

ON/OFF»

 button once again.

Temperature in this mode is not set.

«MAXI» mode (TURBO)

When pressing the «MAXI» button on the remote control board, the conditioner will start working

in turbo mode – for maximum cooling (in cool mode) or for maximum heating (in heat mode).

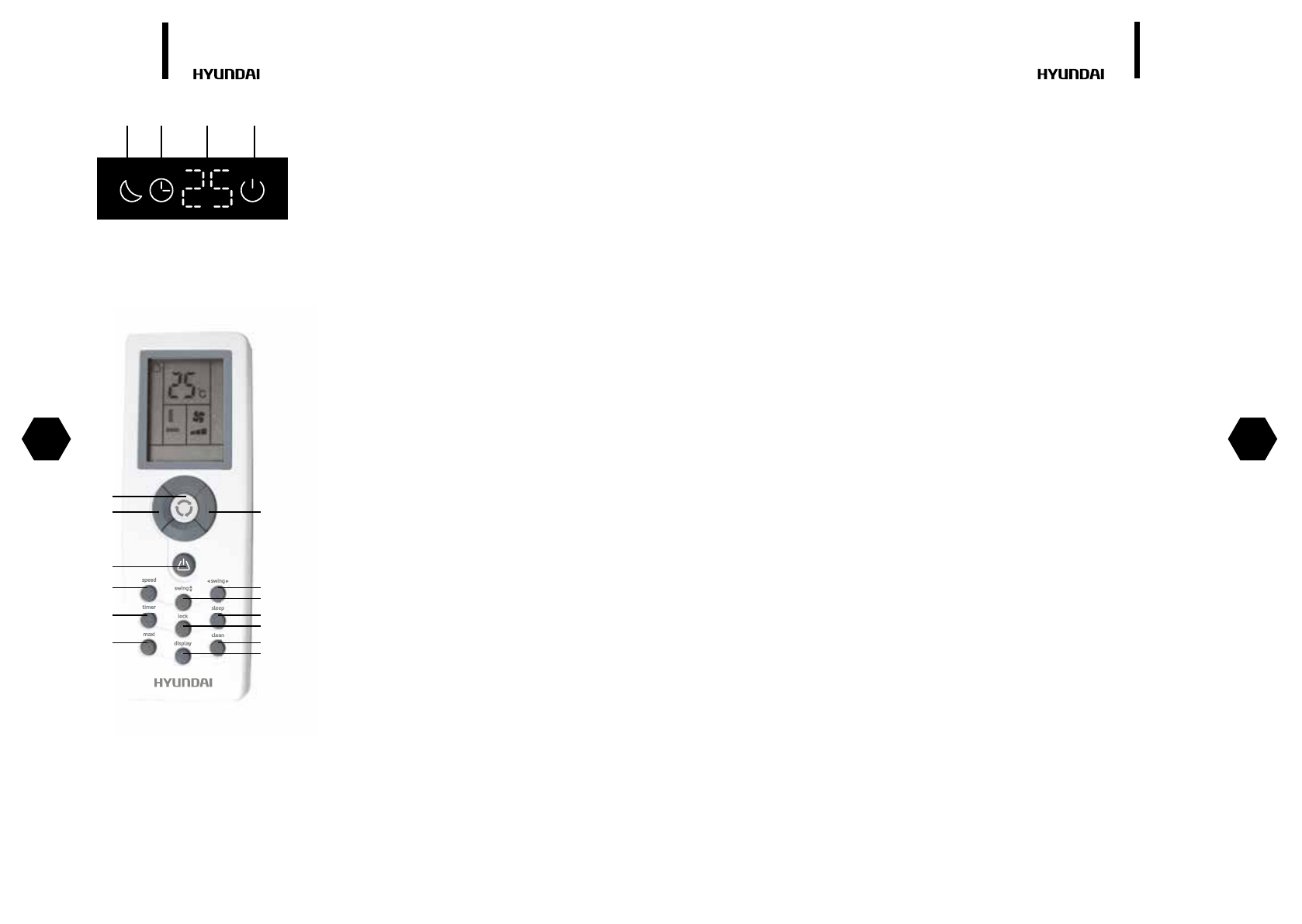

Fig. 3

Рис. 4

a

b

c

d

а) Sleep mode indicator

b) Timer indicator
c) Temperature indicator
d) Power indicator

* use of particular indicators depends on model and
series.

** design of indicator symbols may difer depending on

model and series.

1.

Button «ON/OFF» (Power). Using this button, you

may turn the conditioner on or of.

2.

Button for selection of operating mode – «MODE».

Using this button, you may select a needed operat-

ing mode: AUTO, COOL, DRY, HEAT, FAN.

3.

Buttons «TEMP» (increase/decrease). Using this

button, you may set needed air temperature
indoors.

4.

Button «SPEED». Using this button, you may select

rotation speed of the indoor unit fan: «Auto»,

«High», «Middle», «Low».

5.

Button «TIMER». This button sets the automatic

switch-on (set the desired time by pressing the

«TEMP» up-down or as a button «TIMER»). The

device automatically turns on ater a selected

period of time.

6.

Button «MAXI». Using this button you may turn on

and of Maxi mode.

7.

Button «SWING». Using this button, you may

regulate position of air-outlet blinds and forward
treated air up and down.

8.

Button «SWING». Using this button, you may

regulate position of air-outlet blinds and forward

treated air let and right.

9.

Button “SLEEP”. Using this button, you may turn

the sleep mode on and of. In this mode the fan

speed will be low.

10.

Button «Lock». Using using this button (if you press

for more than 3 seconds) can be switched on and

of key lock.

11.

Button “CLEAN“. Using this button you cat turon

On/Of the function drying of the evoparator of

indoor unit. It prevents mold formation on the

heat exchanger. Ater deactivation of the cooling

function, the air conditioner is switched to the fan
mode, then to the heating mode, again to the fan

mode, and switched of in order to dry the heat

exchanger of the internal module and prevent mold
formation on it.

Indication of the control board display
shall correspond to selected modes.
