6.

Electric air conditioner

portable type

EN

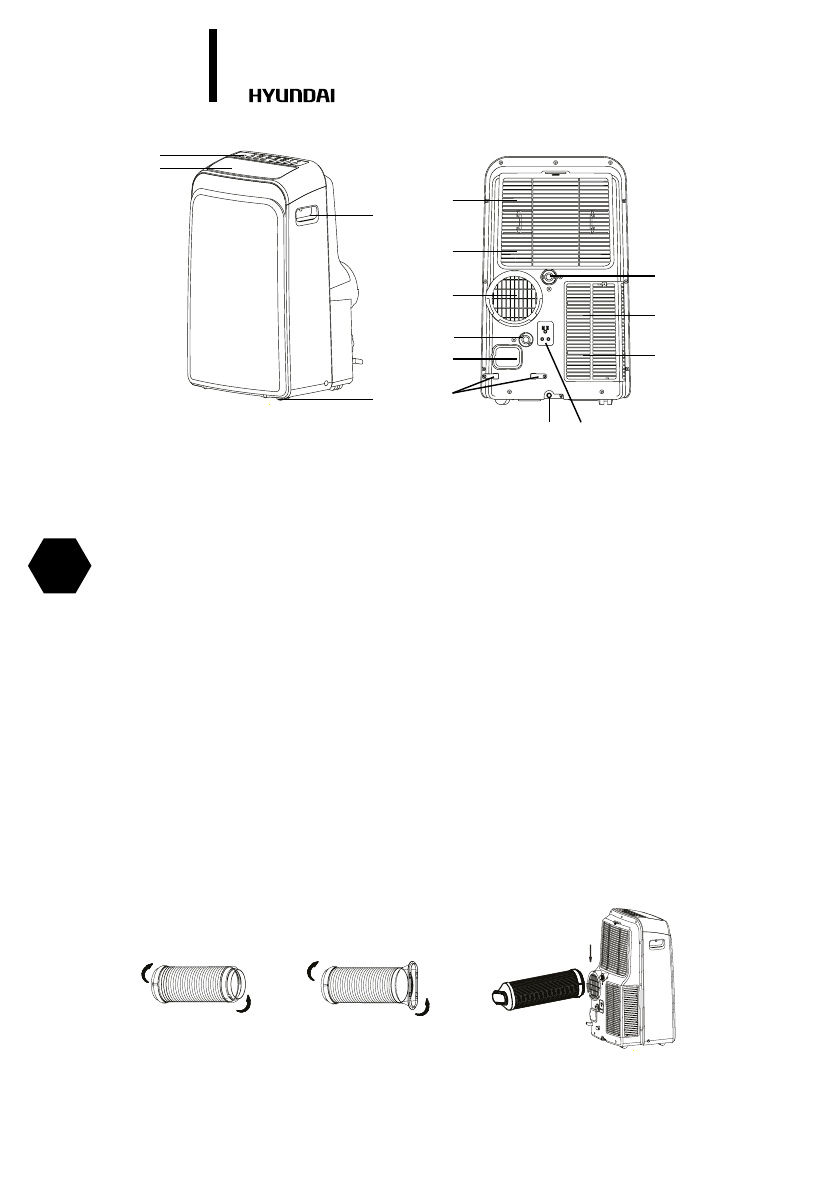

4. DEVICE DESCRIPTION (Fig. 2 and 3)

1.  Control panel
2.  Horizontal louver
3.  Rollers
4.  Handle for transportation
5.

Air ilter

6.  Air Inlet grille
7.  Air outlet grille
8.   Condensation drain hole
9.  Power cord
10. Power cord  buckle
11. Condensation drain hole
12. Power plug socket
13.

Air ilter

14. Air intake grill
15. Condensation drain hole

Installation of air outlet hose (Fig. 4)

1. Before using  install the adapter on hose for air outlet (Fig. 4-2)
2. Install hose for air outlet  into the hole ( Fig. 4-3).

Fig. 2

Fig. 4-2

Fig. 4-1

Fig. 4-3

Fig. 3

3

13

14

15

4

1
2

5

6

7

9

10

11

12

8
