Switch box

 (Field supplied parts)

Machine screws (M4 x 16)

For the field supplied switch box,
use optional accessories
KJB1111A or KJB2121A.

KJB2121A

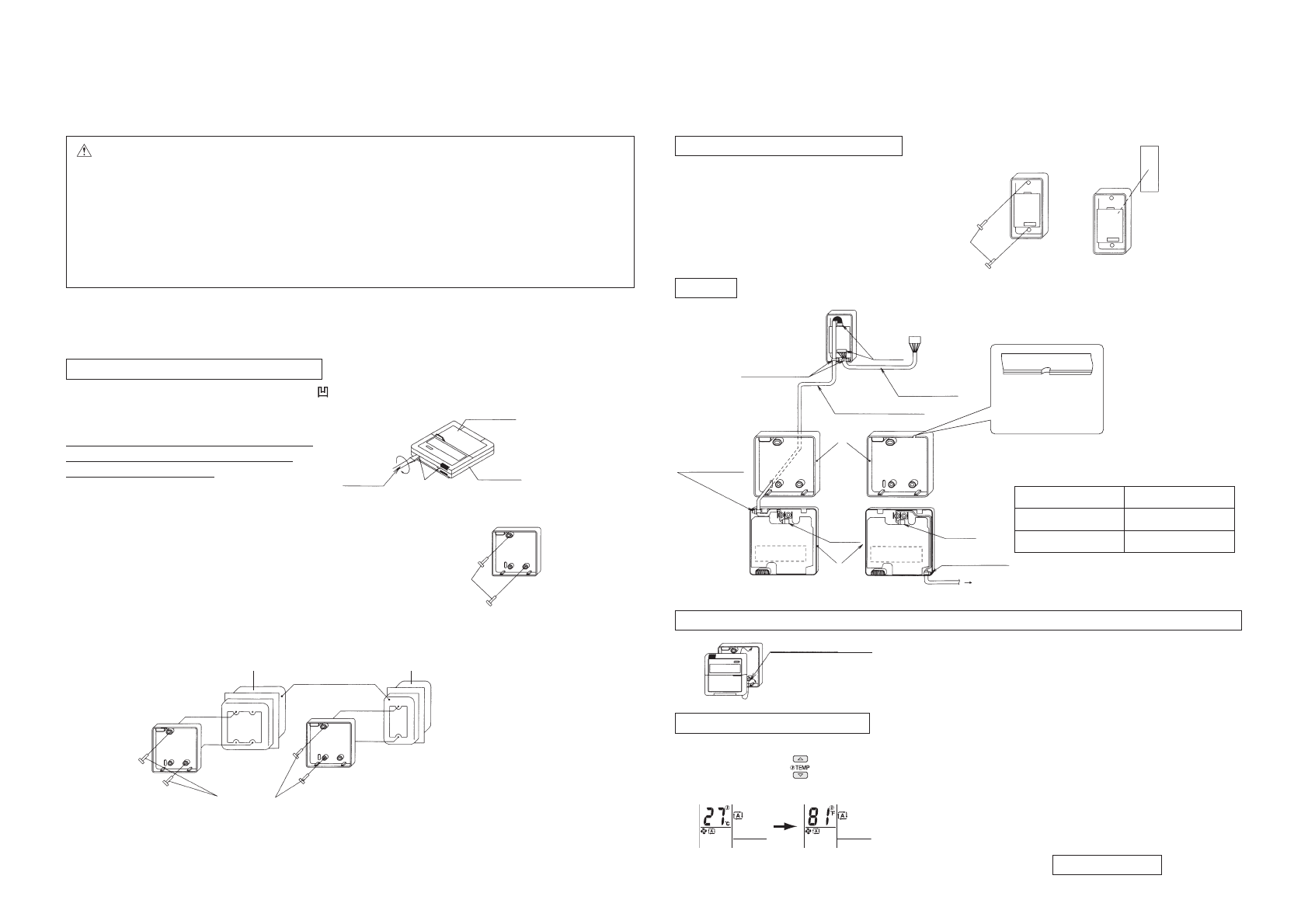

Remote Controller Setup Instructions

CAUTION

1. No switch box or staple is supplied.  Prepare them locally.
2. No remote controller cord is supplied.  Prepare the optional remote controller cord 4 wire.
3. Be sure to turn off the power to any apparatus connected prior to mounting.
4. Prior to mounting equipment, touch something metallic such as a doorknob to remove static

electricity from your body. Never touch the remote controller board or the adapter board.

5. Keep the wiring away from any other power source lines to avoid electric noise (external noise).
6. Select a flat surface, wherever possible, to mount the remote controller.  To prevent deformation

of the cases, do not overtighten the mounting screws.

Insert a bladed screwdriver into the concave (    ) in the remote controller lower case to remove the
upper case assembly (two locations).

(1) Exposed mounting

Secure the remote controller lower case with the
two supplied wood screws.

(2) Embedded mounting

Secure the remote controller lower case with the
two supplied machine screws.

The remote controller board is located on the
upper case.  Take care not to scratch the
board with the screwdriver.

1. Securing the remote controller lower case

Remove the upper case of the remote control adapter
and secure the lower case assembly.

During mounting of the remote
controller cord, be careful not to pinch
or otherwise damage the wires.
(Remote controller cord 4 wire)

2. Securing the remote control adapter

3. Wiring

4. Placing the upper case assembly of the remote controller and the upper case of the remote controller adapter back into their original positions

5. Temperature indication change

Upper case

Wood screws (

φ

3.5mm x 16mm)

(Mounting with supplied wood screws)

Remote control adapter (attached)

(Mounting with supplied double-face adhesive tape)

Lower case

Screwdriver

To remove, insert and twist
the screwdriver slightly.

Wood screws (

φ

3.5mm x 16mm)

Double-face
adhesive tape

Attached
five-wire cord

Remote controller cord
(Note 1)

Connector

Connector

Connector

Tie-band
(to secure the cord)

Tie-band
(to secure the cord)

Tie-band
(to secure the cord)

Upper case

assembly

Lower case

(Cord drawn out on the back)

Catch the lower hook first.

(Cord drawn out on the top)

To remote control adapter

Remote controller

board

Remote controller

board

3P202923-2B

M08B097

Note 1) Ground the both ends of the shielded wire.

KJB1111A

Using wire cutters, make
a notch for wiring and
then seal the notch to
ensure it is waterproof.

To indoor unit S21-HA connector

Remote controller cord 4 wire

Item No.

BRCW901A03

BRCW901A08

Length

Approx. 3m (10ft)

Approx. 8m (26ft)

To change from Celsius temperature indication to Fahrenheit one

Press and hold down           at the

same time for 5 seconds while the
Celsius temperature is indicated.

 See Operation Manual
