JetStream L2/L2+ Managed Switch

19

Connection

3.5  Power On

Plug the female connector of the provided power cord into the power socket of the device and plug

the positive connector into a power outlet as the following figure shows. Make sure that the voltage

of the power supply meets the requirement of the input voltage (100-240 V~ 50/60 Hz).

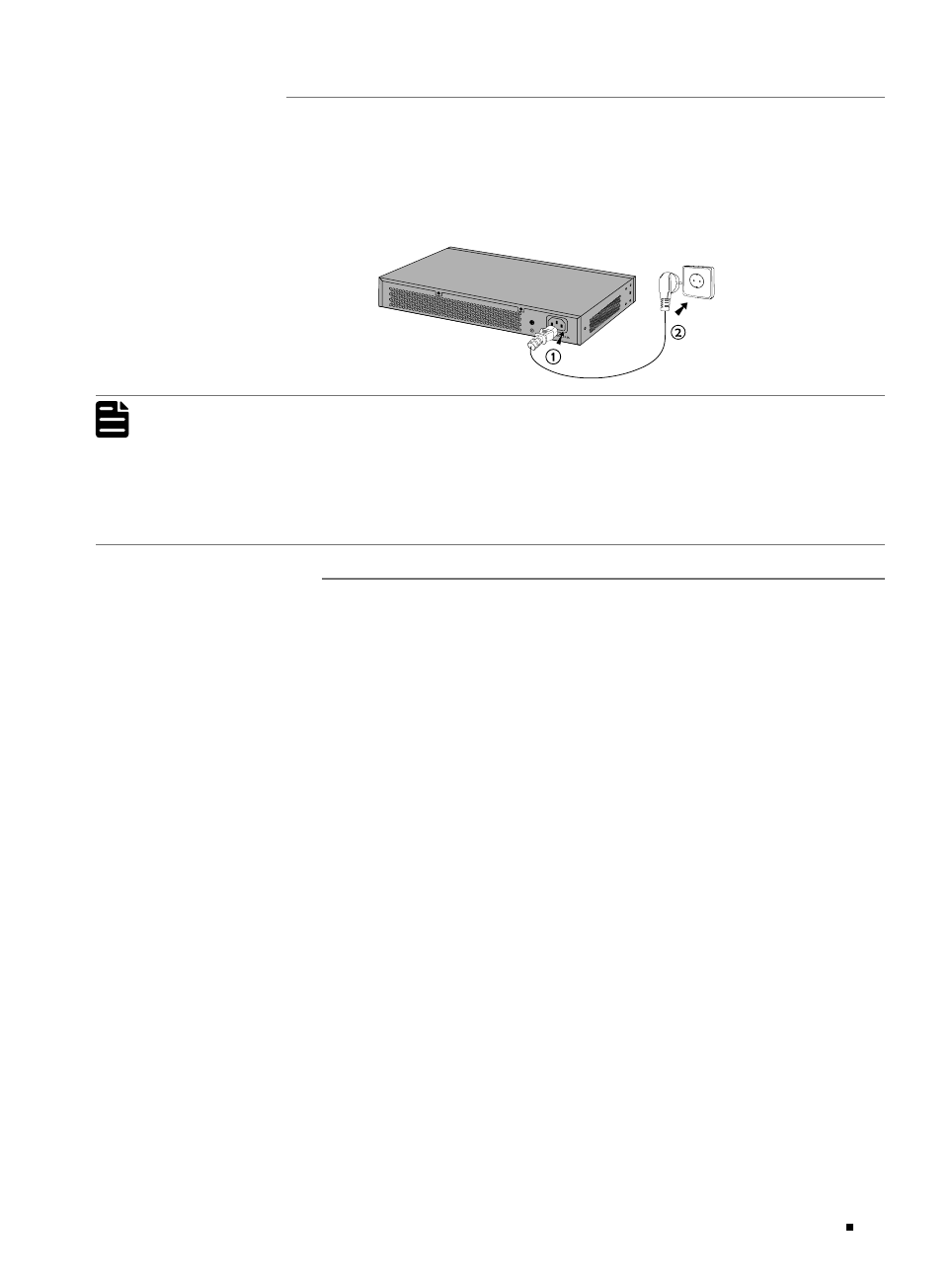

Figure 3-5

Connecting to Power Supply

Note:

1.  The  figure  is  to  illustrate  the  application  and  principle.  The  provided  plug  and  the  socket  in

your region may differ from the figures above.

2. For TL-SG3428X-UPS, you can connect an external 12 V DC lead-acid battery as a redundant

power supply for the switch. The minimum required capacity is 4.5 AH. Battery is automatically

used  to  supply  power  when  the  AC  power  is  turned  off.  When  the  AC  power  is  working,  it  will

automatically charge the battery.

3.6  Initialization

After the device is powered on, it begins the Power-On Self-Test. A series of tests  run automatically

to ensure the device functions properly. During this time, its LED indicators will respond in the

following order:

1.  The PWR LED indicator lights on all the time. The SYS LED and the LED indicators of all the ports

keep off.

2.  After about one minute, the SYS LED and LED indicators of all the ports will flash momentarily and

then turn off.

3.  Several seconds later, the SYS LED indicator will flash, which represents a successful initialization.
