NETGEAR, Inc.
350 East Plumeria Drive
San Jose, CA 95134, USA
NETGEAR INTERNATIONAL LTD
Floor 1, Building 3
University Technology Centre
Curraheen Road, Cork,
T12EF21, Ireland

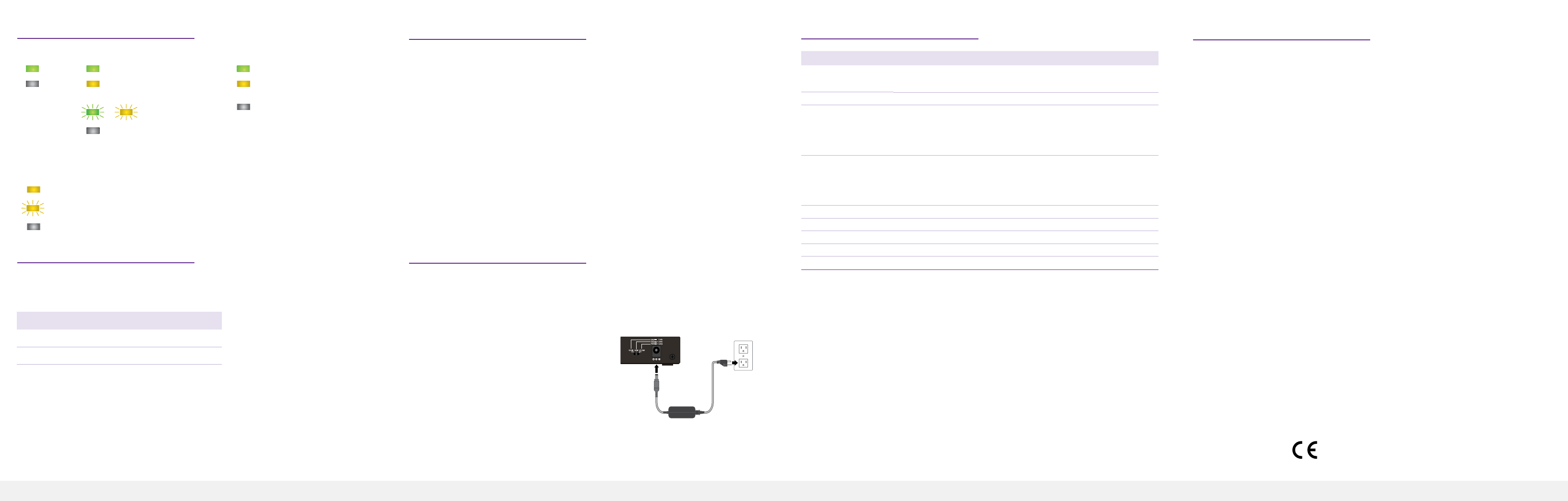

Cables and speeds
The following table describes the network cables that you can use for the switch
connections and the speeds that thesse cables can support, up to 328 feet (100
meters).
Speed
Cable Type
100 Mbps
Category 5 (Cat 5) or higher
1 Gbps
Category 5e (Cat 5e) or higher
Check the PoE status
Power LED
Left Port LEDs
Right PoE LEDs
On
1000 Mbps link
PoE in use
Off
100 or 10 Mbps link
)
Activity (blinking)
No PoE use (off)
No link (off)
The switch can supply up to 30W PoE+ (IEEE 802.3at) to each port, with a maximum PoE power
budget of 76W total with a 90W power adapter, a 115W total with a 130W power adapter and a
183W total with a 200W power adapter across all active PoE+ ports.
The PoE Max LED indicates the status of the PoE budget on the switch:
Solid yellow
. Less than 7W of PoE power is available on the switch.
Blinking yellow
. The PoE Max LED was lit solid in the previous two minutes.
Sufficient (more than 7W of) PoE power is available on the switch (the LED is off).
Specifications
Specification
Description
Network interfaces
16 Gigabit Ethernet RJ-45 ports that support 1G, 100 M, and 10 M
16 PoE/PoE+ ports
Power adapter input
Power adapter varies by region.
Power adapter output
The switch supports three power adapters:
200W: 54V @ 3.7A
130W: 54V @ 2.4A
90W: 54V @ 1.66A
Max PoE budget
The maximum budget for each power adapter is as follows:
200W: 183W PoE
130W: 115W PoE
90W: 76W PoE
Dimensions (W x D x H)
11.26 x 4.02 x 1.06 in. (286 x 102 x 27 mm)
Weight
1.94 lb (0.88 kg)
Operating temperature
32–104°F (0–40°C)
Operating humidity
10%–90% relative humidity, noncondensing
Compliance
FCC class A, CB, CE class A, VCCI class A, RCM class A, KC, BSMI
Attach the switch to a wall
To attach the switch to a wall, you need the wall-mount screws that are supplied
with the switch.
To attach the switch to a wall:
1.
Locate the two mount holes on the bottom panel of the switch.
2. Mark and drill two mounting holes in the wall where you want to mount the
switch.
The two mounting holes must be at a precise distance of 4.27 in. (108.4 mm)
from each other.
3. Insert the supplied anchors into the wall and tighten the supplied screws with
a No. 2 Phillips screwdriver.
Note:
Leave about 0.125 in. (4 mm) of each screw protruding from the wall so
that you can insert the screws into the holes on the bottom panel.
Change the switch’s PoE budget
You can move the slider on the back of the switch to increase or decrease the
PoE budget. You can increase the PoE budget if you buy a higher wattage power
supply. You also can move the slider to a PoE budget that is lower than the power
supply wattage. This reduces your switch’s power consumption. However, we
recommend using the slider setting that matches your power supply.
1. Power down the switch and disconnect the
power cord.
2. Move the slider to the setting that
corresponds to the wattage of the new
power adapter.
3. Connect the power cord and power on the
switch.
Support
Thank you for purchasing this NETGEAR product. You can visit
https://www.netgear.com/support/
to register your product, get help, access the
latest downloads and user manuals, and join our community. We recommend that
you use only official NETGEAR support resources.
Si ce produit est vendu au Canada, vous pouvez accéder à ce document en
français canadien à
https://www.netgear.com/support/download/
.
(If this product is sold in Canada, you can access this document in Canadian
French at
https://www.netgear.com/support/download/
.)
For regulatory compliance information including the EU Declaration of
Conformity, visit
https://www.netgear.com/about/regulatory/
.
See the regulatory compliance document before connecting the power supply.
Do not use this device outdoors. The PoE source is intended for intra building
connection only.
