CONDTROL NEO X1-360/ X2-360

CONDTROL NEO X1-360/ X2-360

C ROS S

L INE L A SER

C ROS S

L INE L A SER

CARE AND MAINTENANCE
Attention!

 The product is an accurate optical mechanic device and

requires careful handling. Check the accuracy before using.

To increase the operating time and avoid the risk of unintentional

blindness switch the laser on only when you are ready to make

measurements.

If operated near objects or air streams with different from the

environment temperature the laser line may tremble due to

heterogeneity of the atmosphere. The longer is the distance, the more

trembling can be observed

The width of the laser line increases with the increasing of the

operating distance. The layout should be made along the axis of the

laser line. For maximum accuracy, use the middle portion of the laser

line.

It should be noted that the shape of the laser line on the object’s

surface (e.g., walls, ceilings, etc.) depends on the curvature and tilt of

the surface relative to the laser plane.

Maintenance of the following recommendations will extend the life

of the device:

- Transport and carry the product only with locked compensator.

- Keep the product clean and protected from any bumps, dust and

dampness; do not allow getting moisture, dust or other dirt inside of

the product.

- In case if any moisture goes into the product, remove the batteries

and take it to the service center.

- Do not keep or use the device for a long time at high humidity

conditions.

- Keep the instrument clean and wipe it with a clean and soft cloth.

Mishandling of the following rules can cause electrolite leakage

from the batteries or other damages:

- Remove the batteries from the product if you do not use it for a long

time.

- Do not use different battery types with different charge levels.

- Do not leave discharged batteries in the product.

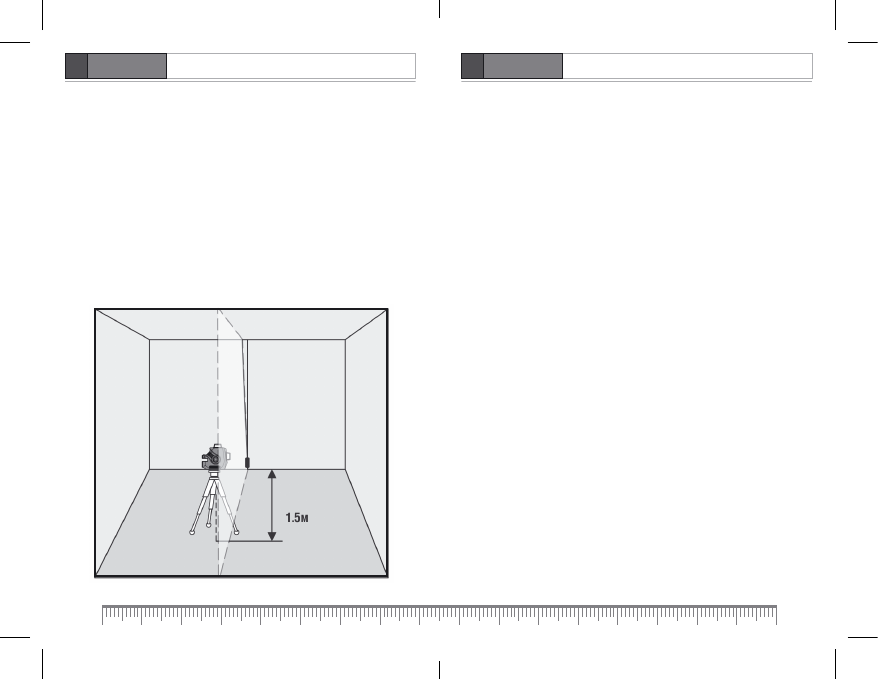

C HEC K OF VERT IC AL L INE

Use a plumb bob as a reference of a vertical line. Place the instrument

at distance of 1,5m from the plumb bob.

1. Unlock the compensator, switch on the vertical laser line and align it

with the low point of plumb bob.

2. If deviation between the laser line and the plumb bob line exceeds

±0.3 mm per 1m of the plumb bob length (for a 2.5m plumb bob

deviation shouldn’t exceed 0.75 mm) please contact service center.

3. Turn the instrument by 180° and align the vertical laser line with the

low point of plumb bob once again*.

* NEO X2-360 only.
