English |
15
Bosch Power Tools
1 609 92A 0KL | (12.5.14)

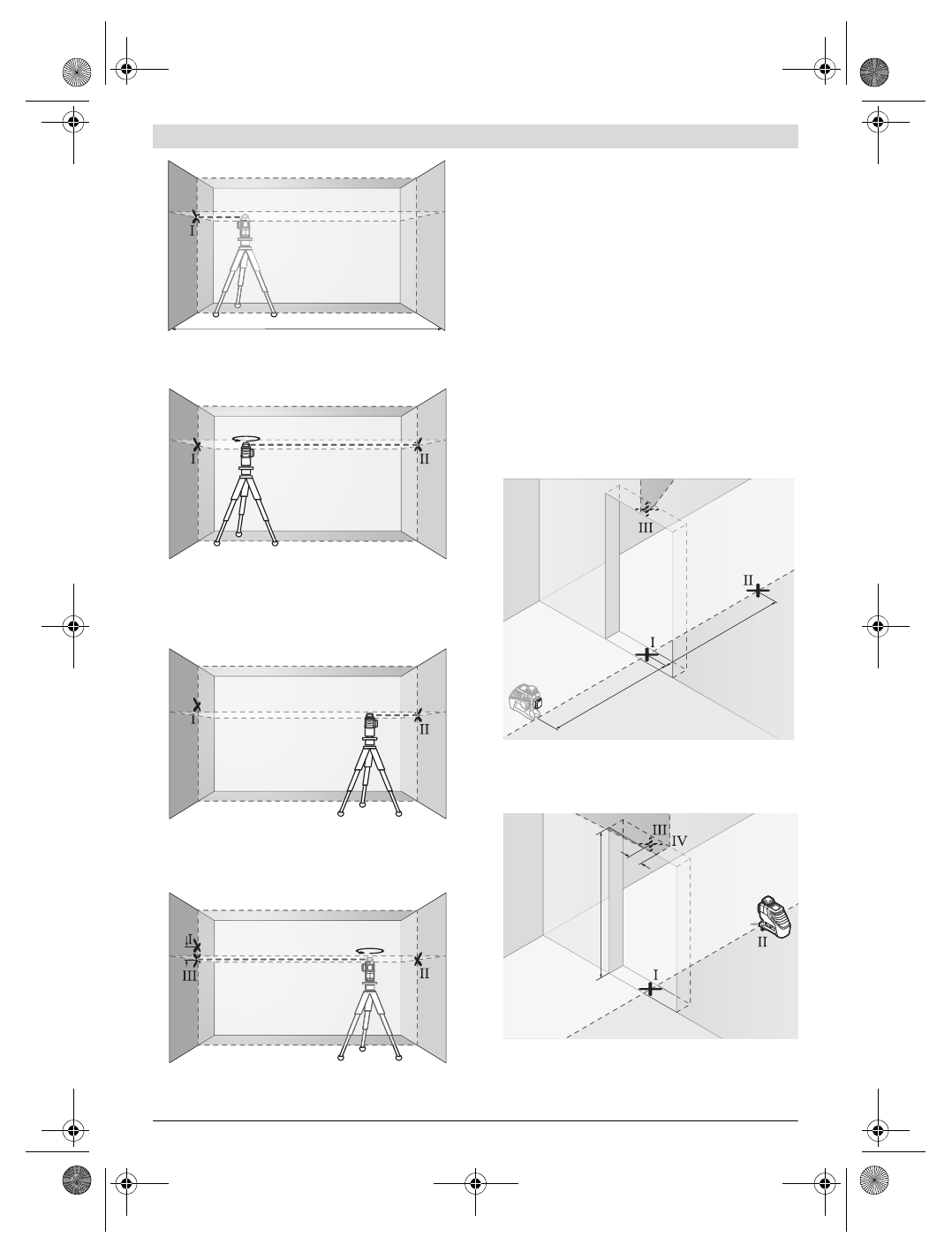

– Direct the laser against the close wall A and allow the meas-
uring tool to level in. Mark the centre of the point where the
laser lines cross each other at wall A (point
I
).
– Turn the measuring tool by 180 °, allow it to level in and
mark the cross point of the laser lines on the opposite wall
B (point
II
).
– Without turning the measuring tool, position it close to wall
B. Switch the measuring tool on and allow it to level in.
– Align the height of the measuring tool (using a tripod or by
underlaying, if required) in such a manner that the cross
point of the laser lines is projected against the previously
marked point
II
on the wall B.
– Without changing the height, turn around the measuring
tool by 180 °. Direct it against the wall A in such a manner
that the vertical laser line runs through the already marked
point
I
. Allow the measuring tool to level in and mark the
cross point of the laser lines on the wall A (point
III
).
– The difference
d
of both marked points
I
and
III
on wall A
results in the actual height deviation of the measuring tool
alongside the lateral axis.
On the measuring distance of 2 x 5 m = 10 m, the maximum
allowable deviation is:
10 m x ± 0.2 mm/m = ± 2 mm.
Thus, the difference
d
between points
I
and
III
must not ex-
ceed 2 mm (max.).
Checking the Levelling Accuracy of the Vertical Lines
For this check, a door opening is required with at least 2.5 m
of space (on a firm surface) to each side of the door.
– Position the measuring tool on a firm, level surface (not on
a tripod) 2.5 m away from the door opening. Switch on the
measuring tool to operation with automatic levelling. Se-
lect an operating mode in which a vertical laser plane is
generated in front of the measuring tool.
– Mark the centre of the vertical laser line at the floor of the
door opening (point
I
), at a distance of 5 m beyond the
other side of the door opening (point
II
) and at the upper
edge of the door opening (point
III
).
– Rotate the measuring tool by 180 ° and position it on the
other side of the door opening directly behind point
II
. Al-
low the measuring tool to level in and align the vertical laser
A
B
5 m
A
B
180°
A
B
A
B
d
d
180°
2,5 m
2,5 m
2 m
d
OBJ_DOKU-32907-002.fm Page 15 Monday, May 12, 2014 12:52 PM
