InSinkErator ISE M 66 - Инструкция по эксплуатации

English only (Australia, New Zealand, UK, Hong Kong, and Ireland )

www.insinkerator.com
©2009 InSinkErator, a division of Emerson
Electric Co. All Rights Reserved.

1b

1a

2

3

4

5

6

7

8

12

11

10

13

14

15

19

20

21

22

16

17

18

23

24

25

22

26
27
28
29
30

9

Food waste disposers provide an environmentally responsible alternative to transporting food waste to landfills. And they can help reduce
greenhouse gas emissions. At capable wastewater treatment plants, food waste can be converted to biosolids and used as fertilizer. Capable
plants can also capture methane gas and recycle it as an energy source. (Check the plant in your area.)
Read through the entire Installation, Care & Use manual before installing the disposer. Determine which of the tools, materials, and
accessories you will need before you begin. Make sure you have all necessary disposer parts before installing the disposer.
NOTE : The Evolution models grind much finer than any other disposer. For this reason you may notice that it takes a little longer to grind

some food waste. Due to the Evolution 200 model’s microprocessor, users will experience a fractional second delay when starting on all
Evolution 200 models. This is completely normal.
NOTE : In Australia, all plumbing and electrical work must be completed by a qualified tradesperson. This product may require approval of the

relevant regulator and /or the sewerage system operator. Disposer must be installed to AS/NZS 3500.2 standard requirements.
NOTE : Make sure that the installation of this appliance is allowed by the authorities.
TOOLS & MATERIALS YOU WILL NEED :

Slotted Screwdriver, Adjustable Pliers, Safety Glasses
TOOLS, MATERIALS, AND ACCESSORIES YOU MAY NEED :

Phillips Screwdriver, Drain Auger, 9.5 mm Electrical Clamp, Wire Nuts (2), 38 mm Drain Trap, 33 mm Hole Drill, Hammer, Hacksaw, Water Hose
Clamp, Pipe Wrench, Copper Earth Wire, Dishwasher Drain Connection Kit, Electrical On /Off Switch, Drain Tube Extension

MOUNTING ASSEMBLY

1a. Strainer Basket and Plug


( Evolution models)

1b. Stopper ( Models 65, 55, 45, LC-50 )
2.  Sink Flange
3.  Rubber Gaskets (2)
4.  Fiber Gasket (optional)
5.  Backup Ring
6.  Mounting Ring
7.  Screws ( 3)
8.  Snap Ring
DISPOSER

9.  Sound Baffle ( Evolution models,


Model 65)

10. Mounting Gasket/Splash Baffle
11.  Lugs
12. Lower Mounting Ring
13. Dishwasher Inlet
14. Discharge Outlet
15. Wrenchette

DISCHARGE ASSEMBLY #4

(Australia Model LC-50 connected to
Caroma Connector not supplied)
26. Bolt (1) 19 mm 1/4-20 UNC
27. Metal Flange (Use to connect


to proper Caroma Connector)

28. Metal Washers (2)
29. Nuts (2)
30. Rubber Gasket
DISCHARGE ASSEMBLY # 5

(Australia Models 65, 55, 45; connected to
Caroma Connector not supplied)
26. Bolts (2) 19 mm 1/4-20 UNC
28. Metal Washers (2)
30. Rubber Gasket

DISCHARGE ASSEMBLY #1

( Evolution models)
16. Hose Clamp
17.  Black Elbow Discharge Tube


( 38 mm diameter/Evolution flange)

18. Straight Discharge Tube 40.3 mm OD


(Australia installation only)

DISCHARGE ASSEMBLY # 2

( Models 65, 55, 45)
19. Bolts (2) 13 mm 1/4-20 UNC
20. Rubber Gasket
21. Metal Flange
22. White Elbow Discharge Tube


( 38 mm diameter/non-Evolution flange)

DISCHARGE ASSEMBLY # 3

( LC-50 for household installation)
23. Bolt (1) 19 mm 1/4-20 UNC
24. Rubber Gasket
25. Metal Flange
22. White Elbow Discharge Tube


( 38 mm diameter/non-Evolution flange)

230-240V, 50Hz

for Australia and New Zealand

220-240V, 50Hz

 for UK /Hong Kong /Ireland

P

ar

t N

o. 7

59

78 R

E

V. A

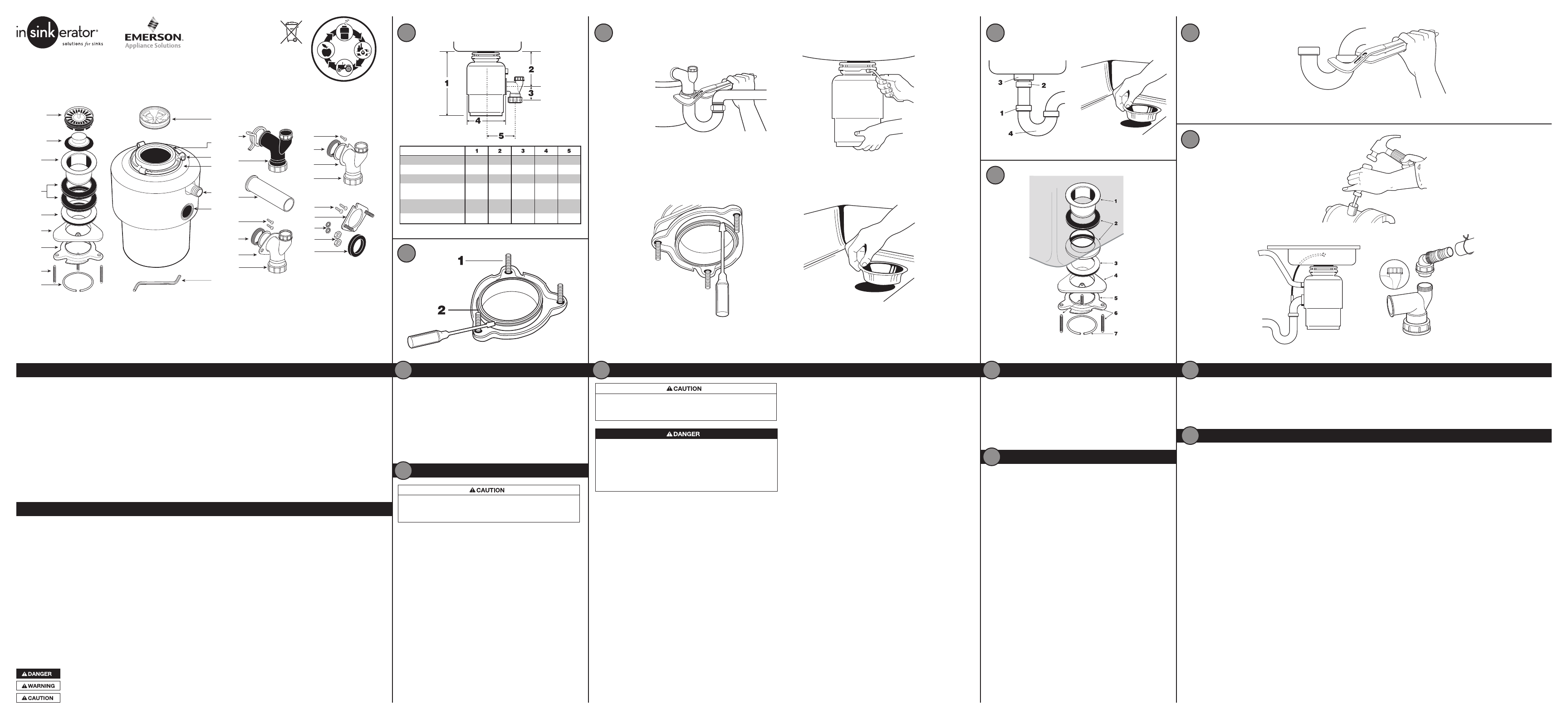

FOOD WASTE DISPOSER INSTALLATION, CARE & USE MANUAL

PARTS LIST ( May vary depending on model)

Danger indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

Warning indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Caution indicated a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.

31.8 cm 16.8 cm

6.4 cm

18.5 cm 13.1 cm

31.8 cm 16.8 cm

6.4 cm

17.3 cm 13.1 cm

31.8 cm 16.8 cm

6.4 cm

15.9 cm 13.1 cm

36.9 cm 19.3 cm

6.4 cm

20.6 cm 14.9 cm

34.4 cm 18.5 cm 6.4 cm

23.4 cm 16.8 cm

31.2 cm 17.1 cm

6.4 cm

20.5 cm 16.8 cm

(Evolution) 200-1, -3
(Evolution) 100-1, -3

Model 65 -1B, -3B

Model 55-1B,

-1B A/S, -3B, -3B A/S

Model 45 -1B,

-1B A /S, -3B

LC50 -12, -13

CHECK INSTALLATION DIMENSIONS

1.  Disposer Height
2. Distance from bottom of sink bowl to centerline of discharge outlet.
  (Add 12 mm when stainless steel sink is used.)
3. Distance from centerline of the discharge outlet to end of
  discharge tube.
4. Disposer Width
5. Distance from disposer vertical centerline to centerline of
  trap connection.
To properly drain and prevent standing water in the disposer, the waste
pipe entering the wall must be lower than the disposer discharge outlet.

DISCONNECT SINK DRAIN

1.  Loosen nut (1) at top of trap (4) with pipe wrench (see Figure 4.1).
2. Loosen nut (2) at top of extension pipe. Remove extension pipe.
3. Loosen nut ( 3) at base of sink flange.
4. Push sink flange up through sink hole and remove it (see Figure 4.2).
5. Clean sink flange area of any putty or other debris.


NOTE : The sink hole may have to be enlarged to accept the disposer

  sink flange. Sink hole enlargement tools are available from your
  InSinkErator Dealer.

1

2

1

2

2.1

3

4

.

3

3

.

3

2

.

3

1

.

3

2

.

4

1

.

4

5.1

1.  Turn mounting assembly over (see Figure 2.1) and loosen three
  mounting screws (1) until you can access snap ring (2).
2. Use screwdriver to pry snap ring off of sink flange. Mounting
  assembly will now come apart.
3. Set mounting assembly aside. This will be used in Instruction 5.

IF REPLACING AN EXISTING DISPOSER,

CONTINUE WITH INSTRUCTION 3.

IF THIS IS A FIRST TIME INSTALLATION,

SKIP AHEAD TO INSTRUCTION 4.

DISASSEMBLE NEW DISPOSER

MOUNTING ASSEMBLY

Reference Figure 5.1.
1.  Place one of two rubber gaskets (2) under sink flange (1). Ensure sink
  hole area is clear of debris and place sink flange /gasket into sink hole.
  You may wish to place a weighted object in the sink to hold the sink
  flange in place. (Place a towel under object to prevent scratching.)
2. Working from under the sink, slip second rubber gasket (2), fiber
  gasket (optional) ( 3) and metal backup ring (4) (flat side up) over the
  sink flange.
3. Holding second rubber gasket, fiber gasket (optional) and metal
  backup ring in place, slip mounting ring ( 5) over sink flange so it seats
  against backup ring.
4. With the rubber gasket, fiber gasket (optional), backup ring, and
  mounting ring tight against sink bottom, slide snap ring (7) onto sink
  flange until it pops into groove on flange.
5. Tighten three mounting screws ( 6 ) up to sink until mounting assembly
  is seated tightly and evenly against sink.

ATTACH UPPER MOUNTING ASSEMBLY TO SINK

4

5

4

5

REMOVE EXISTING DISPOSER

3

PERSONAL INJURY

To avoid personal injury, do not position your head or body under
disposer; the unit could fall during installation.

ELECTRICAL SHOCK

• To avoid electrical shock, disconnect power before installing or
  servicing disposer. Turn off electrical power at fuse box or circuit
  breaker or if equipped unplug disposer electrical power plug from
  wall outlet.
• Improper connection of equipment earth (grounded) conductor
  can result in electric shock.

1.  If your disposer is equipped with an electric plug and cord
  connection, unplug power plug from electrical wall outlet.
  If your disposer is not equipped with an electrical plug and
  cord connection, contact an electrician to disconnect the old
  disposer plus install an earth (grounded) electrical wall outlet for
  the new disposer connection that must be compliant to all local
  electrical codes.
2. Disconnect drain trap from disposer waste discharge tube with
  adjustable pliers (see Figure 3.1). Also disconnect dishwasher drain
  connection, if applicable.
3. Support disposer with one hand and insert end of wrenchette or
  screwdriver into right side of one mounting lug on lower mounting
  ring (see Figure 3.2). Lift disposer slightly and remove from mounting
  by pushing or pulling wrenchette or screwdriver to left (disposer may
  be heavy; provide support).
4. Loosen three mounting screws, pry snap ring off with screwdriver,
  and remove old mounting assembly (see Figure 3.3). Some mounting
  assembly removal requires additional tools.
5. Push old sink flange up through sink hole (see Figure 3.4). Skip ahead
  to Instruction 5.

7.1

7.3

7.2

Failure to clean sink waste pipe line may result in waste pipe blockage.
1.  Remove trap. (See Figure 6.1)
2. With drain auger, clear away all hardened waste material in horizontal drain line running from drain trap to main pipe.

IF YOU ARE NOT CONNECTING A DISHWASHER TO DISPOSER, SKIP AHEAD TO INSTRUCTION 8.

DOES NOT APPLY TO AUSTRALIA /NEW ZEALAND

 In Australia, it is

suggested that the dishwasher units be connected to IPLEX / COROMA
dishwasher spigot for maximum efficiency.
Wastewater from a dishwasher can be plumbed into the disposer
through the inlet access on the upper part of the disposer. There is a
plug on the inside of the inlet tube on all models. Once removed, the
knockout plug cannot be replaced.
NOTE : If the dishwasher connection is made without removing the plug,

the dishwasher may overflow. (Connections must comply with local
plumbing codes.)
REMOVE KNOCKOUT PLUG

1.  Lay disposer on its side and insert screwdriver into dishwasher inlet so
  tip rests on outer edge of knockout plug.
2. Tap end of screwdriver handle with hammer until molded plug breaks
  loose (see Figure 7.1).
3. Remove loose knockout plug from inside disposer.

DISHWASHER ATTACHMENT AND OVERFLOW CONNECTION

CLEAN SINK WASTE PIPE

6

7

THE SINK OVERFLOW

The sink overflow may be connected to the overflow tube on the
tailpipe (see Figure 7.2). Remove the overflow connector cap and
blue plastic seal from the end of the overflow tube (see Figure 7.3).
Utilizing the nut, connect the overflow hose to the tailpipe.
NOTE : The straight discharge tube for use in Australia does not

have an overflow connection tube. In the UK, waste trap kit, which
does not include the sink overflow kit, is available from your local
InSinkErator dealer.

6

7

6.1

(installation continued on reverse)

InSinkErator Division
Suite 6, Building 6
Hatters Lane,
Croxley Green Business Park
Watford HERTS WD18 8YH
United Kingdom
Sales Tel: ( 0 ) 1 923 297 880
Service Tel: ( 0 ) 800 389 3715
www.insinkerator.co.uk

Parex Industries Ltd.
5 Tolich Place, Henderson
P.O. Box 21-102
Auckland, New Zealand 0610
Sales Tel: 64 9 836 6566
Service Tel: 0800 200 510
www.parex.co.nz

InSinkErator Division
471 Mountain Highway
Bayswater Vic 3153, Australia
Sales Tel: 61 03 9720 5599
Service Tel: 1 300 136 205
www.insinkerator.com.au

InSinkErator Division
Emerson Electric Co.
4700 21st Street
Racine, WI 53406-5093
USA
Sales /Service Tel:
262-554-3652
www.insinkerator.com /
worldmap.html

K AL Group
4078 Kingswood Road,
Citywest Business Park
Dublin, Ireland
Tel: 01 413 6481,
       01 413 6400
Fax: 01 413 6464
Email: info @ kal.ie

PERSONAL INJURY

Wearing safety glasses is recommended during the installation of
the food waste disposer.

Evolution 100: Australia Pat. No. 307603, 307769, 308385, and other foreign patents pending
Evolution 200: Australia Pat. No. 307601, 307769, 308695, 308385, and other foreign patents pending
