Positioning and installing the appliance

EN

1773

1070

70

3

1780

560

560

540

548

3c

3

3d

3g

3e

3i

3h

A

3f

3b

B

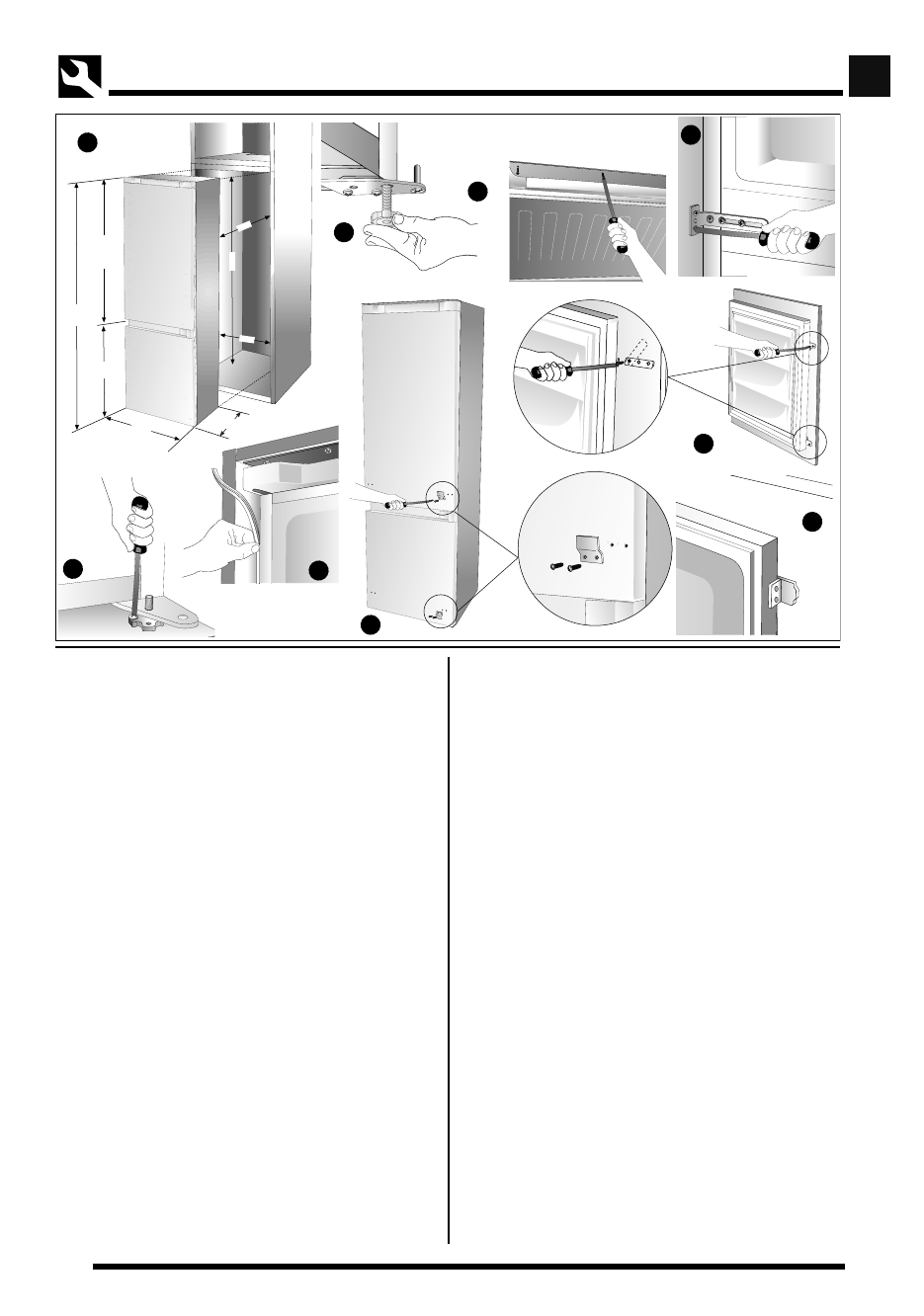

INSTALLATION IN THE TALL UNIT

HOUSING

The dimensions of the tall unit housing must correspond

to those reported in the figure.

3a   Insert the appliance in the housing against the side

panel adjacent to the opening. Check that the side

of the appliance is inset 53 mm in the unit.

3b   Adjust the foot until the top panel is not in contact

with the unit.

3c   Anchor the upper part of the appliance, using the

screws supplied, in the pre-drilled panel over the

front fascia.

3d   Anchor the centre of the appliance to the wall of the

unit using the special brackets.

3e   Fix the two bottom feet in the holes in the base of

the unit.

3f   Where provided, apply the plastic joint gasket.
3g   Check that the guides of door opener “A” are po-

sitioned opposite the opening, otherwise remove

them and replace on the other side.

3h  Fix guides “B”, supplied, on the fridge unit door

in the first hole to allow the guide to rotate until it

engages fridge door opener “A”.

3i   Then screw in the other two fixing screws to fix

opener “B”, such that the guide is blocked and that

the door moves together with that of the unit.

CONNECTING THE APPLIANCE TO THE
MAINS SUPPLY

Check that the mains voltage corresponds to that indi-

cated on the appliance’s rating plate and that the mains

socket is equipped with an earth connection. Do not use

adapters that might generate overheating.
