u

Slightly tip the appliance back-

wards  again  and  reinsert  the

bearing pin

 Fig. 4 (2) together

with the hinge bush

 Fig. 4 (3).

The  notch  on  the  bearing  pin

must face forward.

u

Place the cover

 Fig. 4 (13) on

the opposite side.*

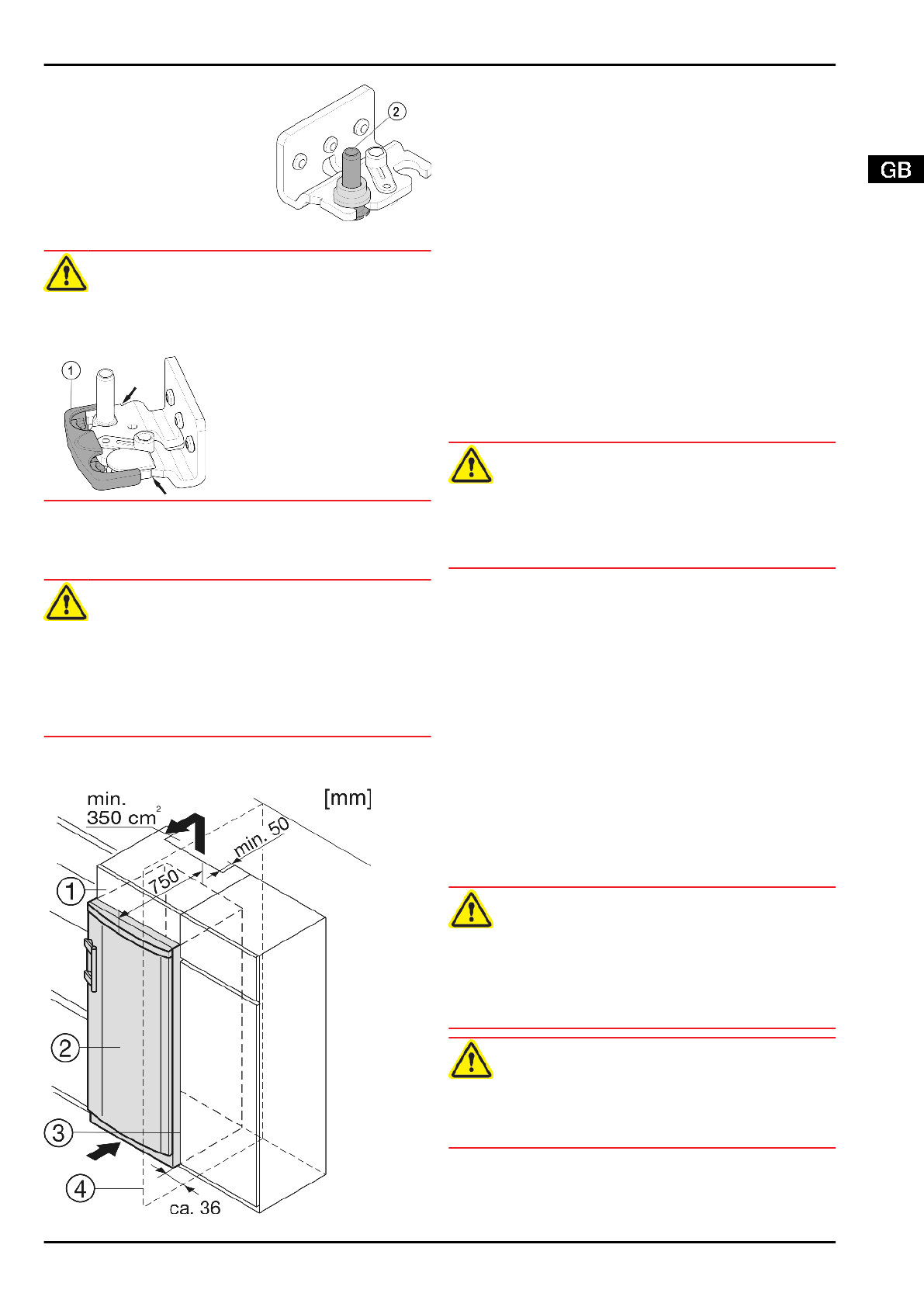

Fig. 7

CAUTION

Risk of injury if the door tips!

u

The  safety  lock

  (1)  has  to  engage  with  the  turn  hinge  at  the

side  so  that  the  bearing  pin  and  therefore  the  door  are

secured.

u

u

Snap the safety lock

 (1) onto the turn hinge again.

u

If necessary, align the door to the appliance housing by way

of the two oblong holes in the turn hinge

 Fig. 4 (4). To do so,

unscrew the middle screw.

WARNING

Risk of injury if the door tips!

If the bearing parts have not been sufficiently tightened the door

can  tip  outwards.  In  addition  the  door  may  not  close,  meaning

that the appliance does not cool properly.

u

Screw on the bearing brackets/bearing pins tightly to at least

4 Nm.

u

Check all of the screws and retighten if necessary.

4.2 Insertion into a row of kitchen units

Fig. 8

(1) Stack cabinet

(3) Kitchen cabinet

(2) Appliance

(4) Wall

The  appliance  can  be  inserted  into  a  row  of  kitchen  units.  To

match the appliance

 Fig. 8 (2) to the height of the row of units, a

suitable stack cabinet

 Fig. 8 (1) can be fitted above the appliance.

When inserting the appliance into a row of standard kitchen units

(max. depth  580 mm), the appliance can be installed directly next

to  the  kitchen  unit  .  The  appliance  door  projects  relative  to  the

front of the kitchen unit by 34 mm at the side and by 170 mm in

the middle of the appliance. It can be opened and closed perfectly

as a result.

-

The  ventilation  space  under  the  ceiling  has  to  be  at  least

350 cm

2

.

-

The larger the ventilation space, the more energy-saving the

appliance is in operation.

If  the  appliance  is  installed  with  the  hinges  next  to  a  wall

Fig. 8 (4), the distance between appliance and wall has to be at

least  36  mm.  This  corresponds  to  the  projection  of  the  handle

when the door is open.

4.3 Transporting the appliance

CAUTION

Risk of injury and danger of damage as a result of incorrect trans-

port!

u

Transport the appliance in a packed condition.

u

Transport the appliance upright.

u

Do not transport the appliance without assistance.

4.4 Installing the appliance

In the event that the appliance is damaged, contact the supplier

immediately before connecting to the mains.
The floor at the site must be flat and level.
Do not install the appliance in a location where it is exposed to

direct radiation of the sun, next to a cooker, heater and similar.
The ideal installation site is a dry, well ventilated room.
Always install the appliance directly against the wall.
Do not install the appliance without assistance.
Standard EN 378 specifies that the room in which you install your

appliance must have a volume of 1 m

2

 per 8 g of R 600a refrig-

erant used in the appliance. If the room in which the appliance is

installed is too small, a flammable gas-air mixture may form in the

event  of  a  leakage  in  the  refrigeration  circuit.  The  quantity  of

refrigerant used in your appliance is indicated on the type plate

on the inside of the appliance.

WARNING

Fire hazard due to dampness!

If live parts or the mains lead become damp this may cause short

circuits.

u

The appliance is designed for use in enclosed areas. Do not

operate the appliance outdoors or in areas where it is exposed

to splash water or damp conditions.

WARNING

Fire hazard due to refrigerant!

The refrigerant R 600a is environmentally friendly but flammable.

Escaping refrigerant may ignite.

u

Do not damage the piping of the refrigeration circuit.
