Note

identifies useful information and tips.

3 Controls and displays

3.1 Operating and control elements

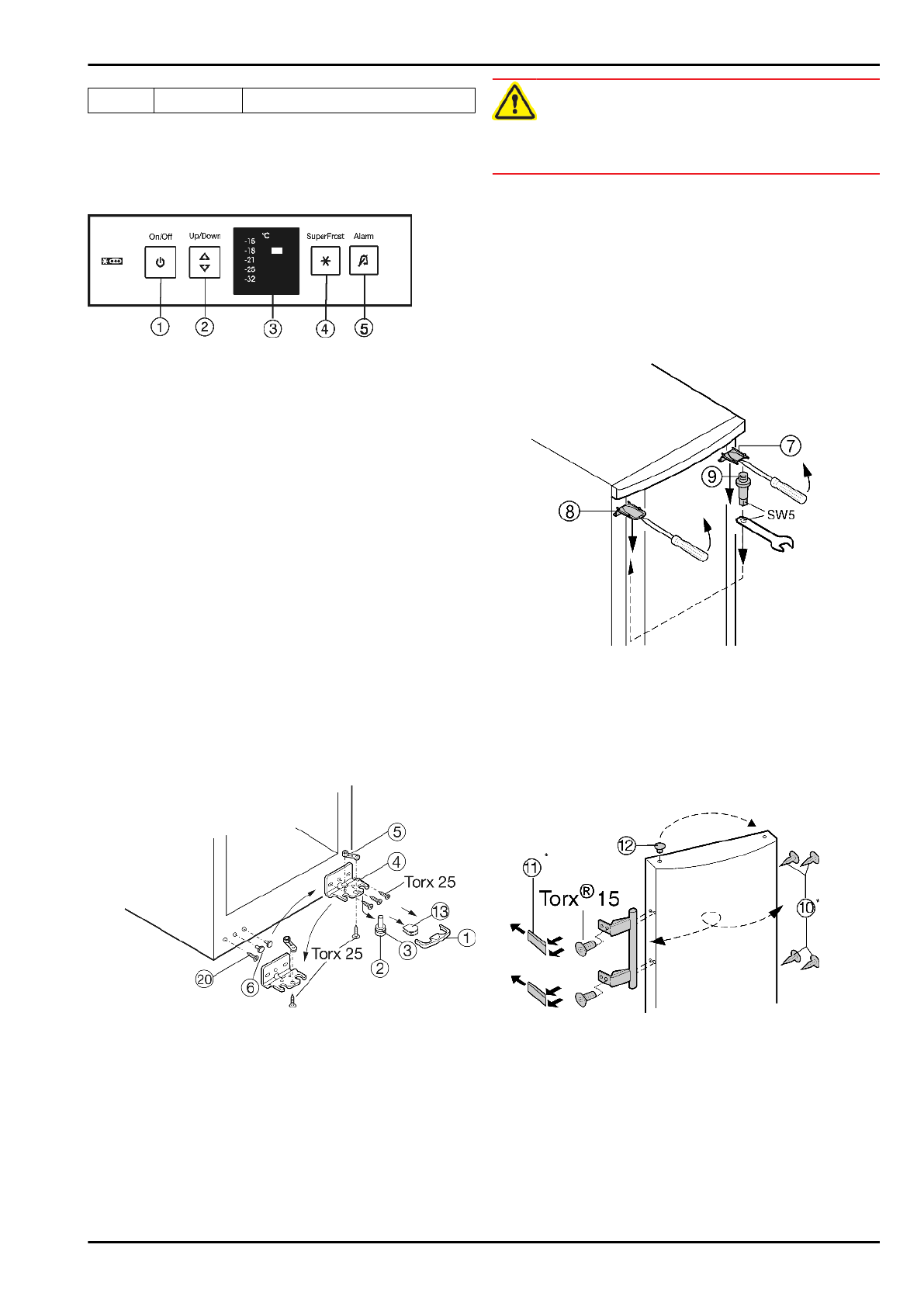

Fig. 3

(1) On/Off button

(4) SuperFrost button

(2) Setting button

(5) Alarm button

(3) Temperature display

3.2 Temperature display

The following are displayed in normal operation:

-

the set freezing temperature

The temperature display flashes:

-

the temperature setting is being changed

-

after switch-on the temperature is not yet cold enough

-

the temperature has risen several degrees

4 Putting into operation

4.1 Changing over the door hinges

You can change over the door hinges if necessary.

Ensure that the following tools are to hand:

q

Torx 25

q

Torx 15

q

Screwdriver

q

Accompanying open-end spanner

q

Second person for fitting work, if needed

Fig. 4

u

Draw safety lock

 Fig. 4 (1) forwards for removal.

u

Remove the cover

 Fig. 4 (13).*

u

If necessary, tip the appliance back a little with the assistance

of a second person for removal of the bearing pin.

u

Pull out the bearing pin

 Fig. 4 (2) downwards and forwards. In

so doing, pay attention to the hinge bush

 Fig. 4 (3).

CAUTION

Risk of injury if the door tips!

u

Take good hold of the door.

u

Set down the door carefully.

u

Open the door, tip it at the bottom for removal and detach it.

u

Unscrew the turn hinge

 Fig. 4 (4).

u

Unscrew the bearing part

 Fig. 4 (5), transfer it to the opposite

hole in the turn hinge and screw it down again.

u

Carefully lift out the plugs

 Fig. 4 (6) and insert them into the

opposite side.

u

Unscrew the screw

 Fig. 4 (20) and insert it into the opposite

side.

u

Screw the bearing bracket

 Fig. 4 (4) onto the new hinge side

tightly to at least 4 Nm or retighten with the aid of a cordless

screwdriver if necessary.

Fig. 5

u

Disengage  the  top  cover

  Fig.  5  (7)  and  cover  Fig.  5  (8)  in  a

forward direction using a screwdriver and remove them down-

wards at an angle.

u

Unscrew the bearing pin

 Fig. 5 (9) and screw it into the oppo-

site side tightly to at least 4 Nm. To do this, use the Allen

screw on the spanner wrench provided.

u

To re-fit the cover

 Fig. 5 (7) to the side where the bearing pin

is located: insert it at the back and engage it at the front.

u

To re-fit the cover

 Fig. 5 (8) at the opposite side: insert it at the

back and engage it at the front.

Fig. 6

u

Lift the stopper

 Fig. 6 (12) out of the door bearing bush and

transfer it.

u

Detach  door  handle,  stoppers

  Fig.  6  (10)  and  pressure

plates

 Fig. 6 (11) and transfer to the opposite side.

u

When  fitting  the  pressure  plates,  pay  attention  that  they

engage properly.

u

Attach the door to the bearing pin

 Fig. 5 (9) and close the door.
