Malfunctions

You  may  be  able  to  rectify  the  following  faults  by  checking

the possible causes yourself:

•

Appliance does not function:

– Is the appliance switched on?

– Is the plug correctly fitted in the mains socket?

– Is the fuse intact?

•

Loud running noise:

– Is the appliance set up firmly on the floor?

– Does the appliance cause nearby items of furniture or objects to

vibrate? Please note that noises caused by the refrigerant circuit

cannot be avoided.

•

The temperature is not low enough:

– Is the temperature setting correct (see "Setting the temperature")?

– Have excessive amounts of fresh food been placed in the appli-

ance?

–  Does the separately installed thermometer show the correct read-

ing?

–  Is the ventilation system working properly?

–  Is the appliance set up too close to a heat source?

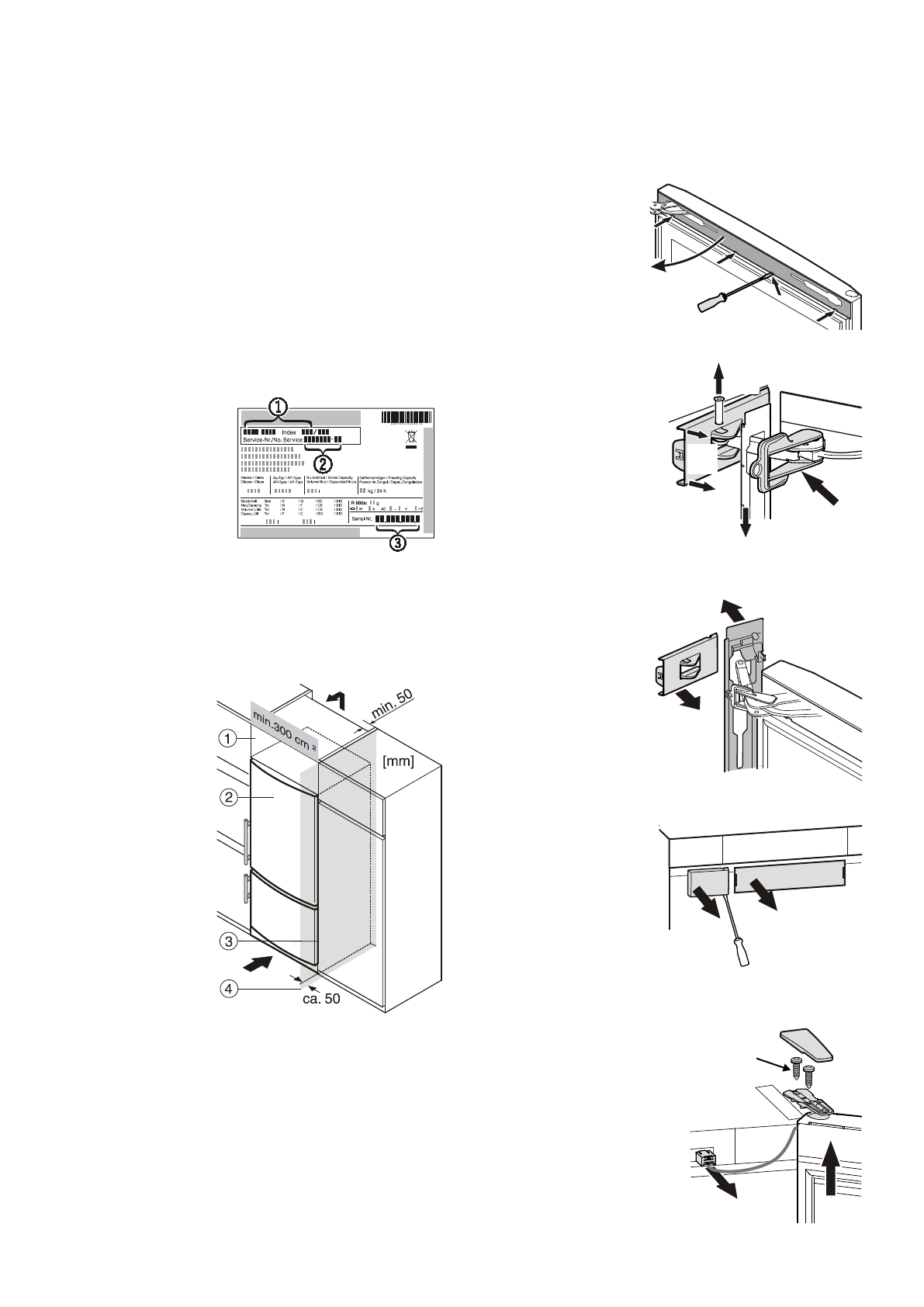

If none of the above causes apply and you cannot rectify the fault

yourself,  contact  the  nearest

customer  service  department

stating the type designation

1

,

service  number

2

  and  appli-

ance  number

3

as  indicated

on the type plate. The type plate

is located inside the appliance

on the left-hand side.

Installing appliance in a row of kitchen units

To adapt the height of the appliance to the surrounding furniture a

top unit

1

 can be added.

A  gap  of  at  least  50 mm

depth  must  be  provided

behind and along the entire

width  of  this  unit  so  as  to

ensure sufficient ventilation.

The  area  of  ventilation  un-

derneath the ceiling should

be at least 300 cm

2

.

When setting up the appli-

ance  next  to  a  wall

4

,  a

distance of approx. 50 mm

must  be  provided  on  the

hinge  side  between  the

appliance and the wall (for

the  handle  when  the  door

is open).

1

 top unit

2

 refrigerator-freezer

3

 kitchen unit side panel

4

 wall

Changing over door hinges

Door hinges should only be changed by a trained expert.

Changing the door hinges must be done by two people.

Caution! Before changing over door hinges,

disconnect the appliance from the mains.

1.

2.

3.

4.

5.

6.

7.

8.

9.

1.

  Open top door, prise off

door cover and pivot to the

left.

Top right
2.

  Let door cover hang down.

3.

  Slide red safety bracket over

the hinge.

4.

  Pull the left-hand side of the

cover approx. 5 mm towards

you.

5.

  Remove pin.

6.

  Open top door wide and

remove covers.

7.

  Prise off covers on the left

and in the centre.

Top right
8.

  Disconnect the connector and

pull the cable out of the guide.

9.

  Remove cover from upper door

mounting and unscrew door.

Shutting your appliance down

If your appliance is to be shut down for any length of time, switch

it  off  and  disconnect  the  plug  or  switch  off  or  unscrew  the  fuse.

Clean the appliance and leave the door open in order to prevent

unpleasant smells.

The  appliance  complies  with  the  relevant  safety  regulations  and

EC Directives 2004/108/EC and 2006/95/EC.

All types and models are subject to continuous improvement and

the manufacturer therefore reserves the right to make modifica tions

to the shape, equipment and technology.
