15

ENGLISH

USER GUIDE MANUAL

Refrigerators NSFD 17793..

H OW TO  I N S TA L L WAT E R  L I N E

(DISPENSER  MODELS ONLY)

1.  The water pressure should be 2.0~12.5 kgf/cm² (1.96 ~12.26

Bar) or more to run the automatic icemaker. Check your tap

water pressure; if a cup of 180cc is full within 10 seconds, the

pressure is OK.

2. When installing the water tubes, ensure they are not close to

any hot surfaces.

3.  The  water  filter  only  filters  water;  it  does  not  eliminate  any

bacteria or microbes.

4. If the water pressure is not sufficient to run the icemaker, call the

local plumber to get an additional water pressure pump.

5. The filter life depends on the amount of use. We recommend you

to replace the filter at least once every 6 months.

6. After installation of refrigerator and water line system, select

[WATER] on your control panel and press it for 2~3 minutes to

supply water into the water tank and dispense water.

7. Use plumbers thread sealing tape on every connection of pipes/

tubes to ensure there is no water leaks.

8. The water tube should be connected to the cold water line.

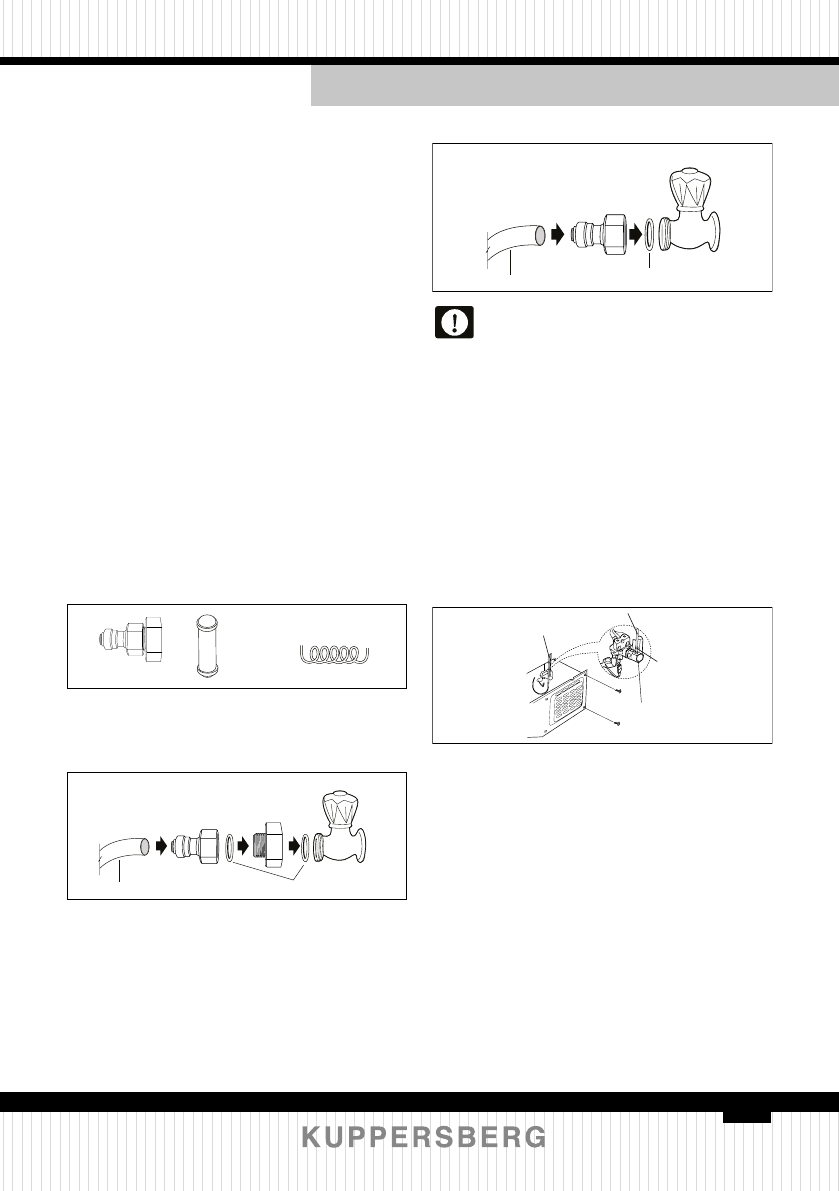

WATER SUPPLY KIT

Ú

 Check the parts below for installing water supply. Some

other necessary parts are available at your local service

agents.

Connector

Filter Box

Water tube

Installation Procedure (Dispenser models only)

1.  Join connector to the tap water line

Figure A

Water Tube

Connector А

Connector B

Tap

Rubber Packing

Figure B

Water Tube

Connector А

Tap

Rubber Packing

Place the rubber washer inside the tap connector and

screw onto the water tap.

2. Connect the Water Tube to the refrigerator.

1)  Remove the rear cover at the bottom back of the refrigerator.

2)  Insert the fastening ring into the Water tube. (Be careful to

follow the direction of the nut.)

3)  Insert the Water Tube into the top of the Water Valve, turn the

nut clockwise to fasten it. (The Water valve is to the right of the

motors.)

4)  Check for any bent tubes or water leaks; if so, reckeck installation

procedure.

5) Replace the rear cover. (The Water Tube should be placed

between the groove of the refrigerator back and motor cover.)

Ú

Set the tube upright as the figure shows.

Water
Tube

Water Tube

Nut

Water Valve

3. After installation of Water Supply System

1)  Plug in the refrigerator, press the [WATER] button on the control

panel for 2~3 minutes to remove any air (bubble) in the pipes

and drain out the initial water.

2) Check for the water leaks again through the water supply

system(tubes, connectors and pipes). Rearrange the tubes again

and do not move the refrigerator.
