ХОЛОДИЛЬНИК

REFRIGERATOR FREEZER

ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ • USER GUIDE

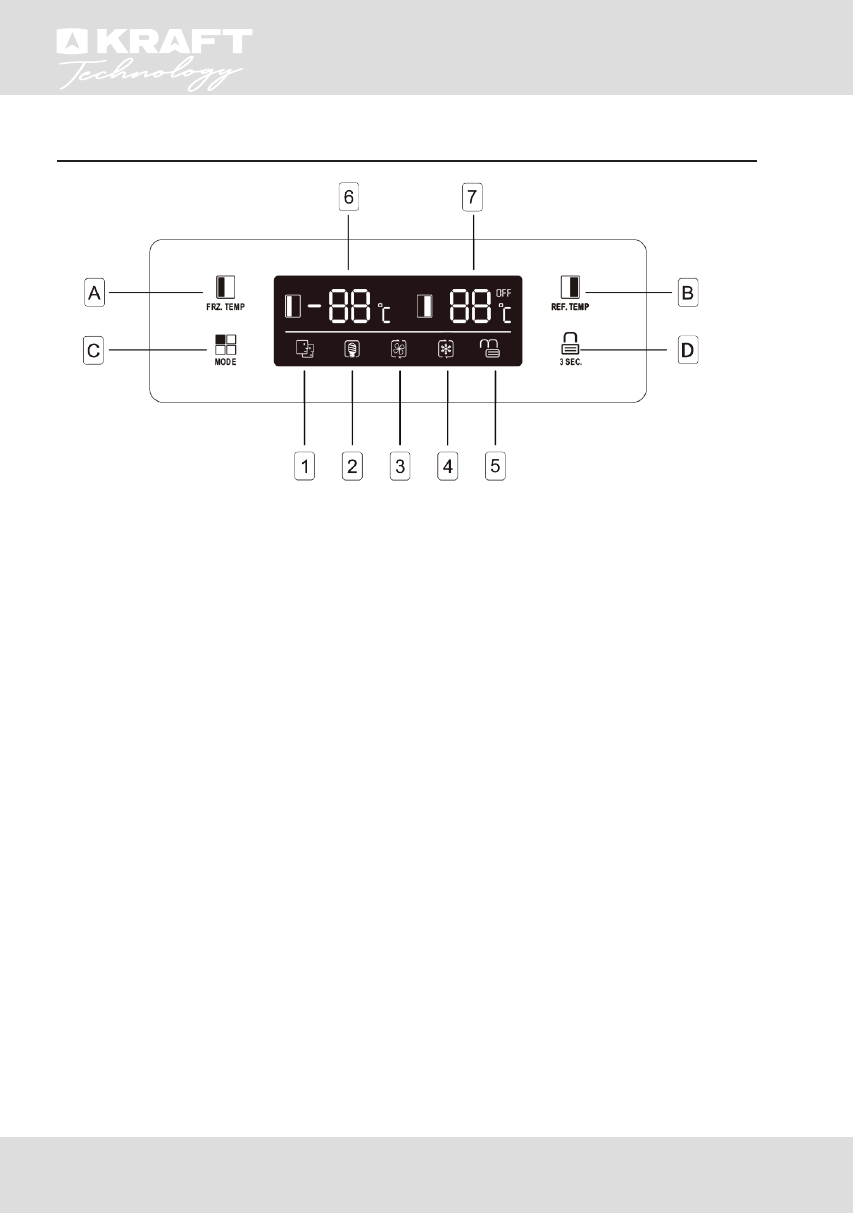

CONTROL PANEL

KEY OPERATION

A.Temperature Control of Freezer Compartment

      Press to adjust temperature of freezer compartment (left side) from -14

⁰

C to -22

⁰

C.

B.Temperature Control of Fridge Compartment

      Press to adjust temperature of fridge compartment (right side) from +2

⁰

C to +8

⁰

C and “OFF”. If

select “OFF”, fridge compartment will be turned off.

C. Mode

      Press to select running mode from SMART, ECO, SUPERCOOLING, SUPER FREEZING and

USER’S SETTING (no symbol in display).

D. Locking / Unlocking

      Press 3 SEC. button and hold for 3 seconds to lock other three bottons.
      Press it and hold for 1 second to unlock otherthree bottons.

LED DISPLAY

1.Temperature of Fridge Comparment

2.Temperature of Freezer Comparment

3.ECO Mode

4.Holiday Mode

5.Super Mode

6.Locking / Unlocking

OPERATING CONDITION

The  control  panel  is  100%  lit  up  for  3  seconds,  which  operates  exactly  as  per  the

setting  (mode  and  temperature)  before  the  poweroff.  The  system  will  be  automatically
locked 25 seconds after the last key operation. After locking, the light of the panel would
