6. Fasten the Water Tube.

5. Connect the Water Tube to the refrigerator.

1) Remove the rear cover at the bottom back of the refrigerator.

2) Insert the fastening ring into the Water tube.

(Be careful to follow the direction of the nut.)

3) Insert the Water Tube into the top of the Water Valve, turn the nut

clockwise to fasten it. (The Water valve is to the right of the motors.)

4) Check for any bent tubes or water leaks; if so, re-ckeck instalation

procedure.

5) Replace the rear cover. (The Water Tube should be placed

between the groove of the refrigerator back and motor cover.)

Water
Tube

Water Tube

Nut

1) Fasten the Water Tube with the [Fastener A] .

2) Check if the tube is bent or sqeezed.  If so, set it right to

prevent any water leak.

Fastener A

Water Tube

3. Remove any substances in the filter.

1) Open the main tap water valve and check if water comes out of

the Water Tube.

2) Check if the Water Valve is open in case water does not come out.
3) Leave the valve open until clean water is coming out.

Initial water may contain some substances out of filter

(manufacturing process).

Set the tube upright as the figure shows.

7.  After installation of Water Supply System

1) Plug in the refrigerator, press the [WATER] button on the control

panel for 2~3 minutes to remove any air (bubble) in the pipes and
drain out the initial water.

2) Check for the water leaks again through the water supply system

(tubes, connectors and pipes) Rearrange the tubes again and do
not move the refrigerator.

Water Tube

Connector

Tap

4. Attach the Filter Box

1) Screw and fasten the filter holder to the left/right side of the back

of refrigerator.

In case the holder is not fastened well, remove the back paper
of the tape on the filter holder and attach it."

2) Insert the filter box into the holder.

Water Valve

20

80

Leave a sufficient distance when cutting the tubes.

2. Get ready to install the Water Filter

1) Measure an approximate distance between the filter and the Water

Tube and cut the tube off filter vertically.

2) Connect the tubes to the filter as the figure shows.

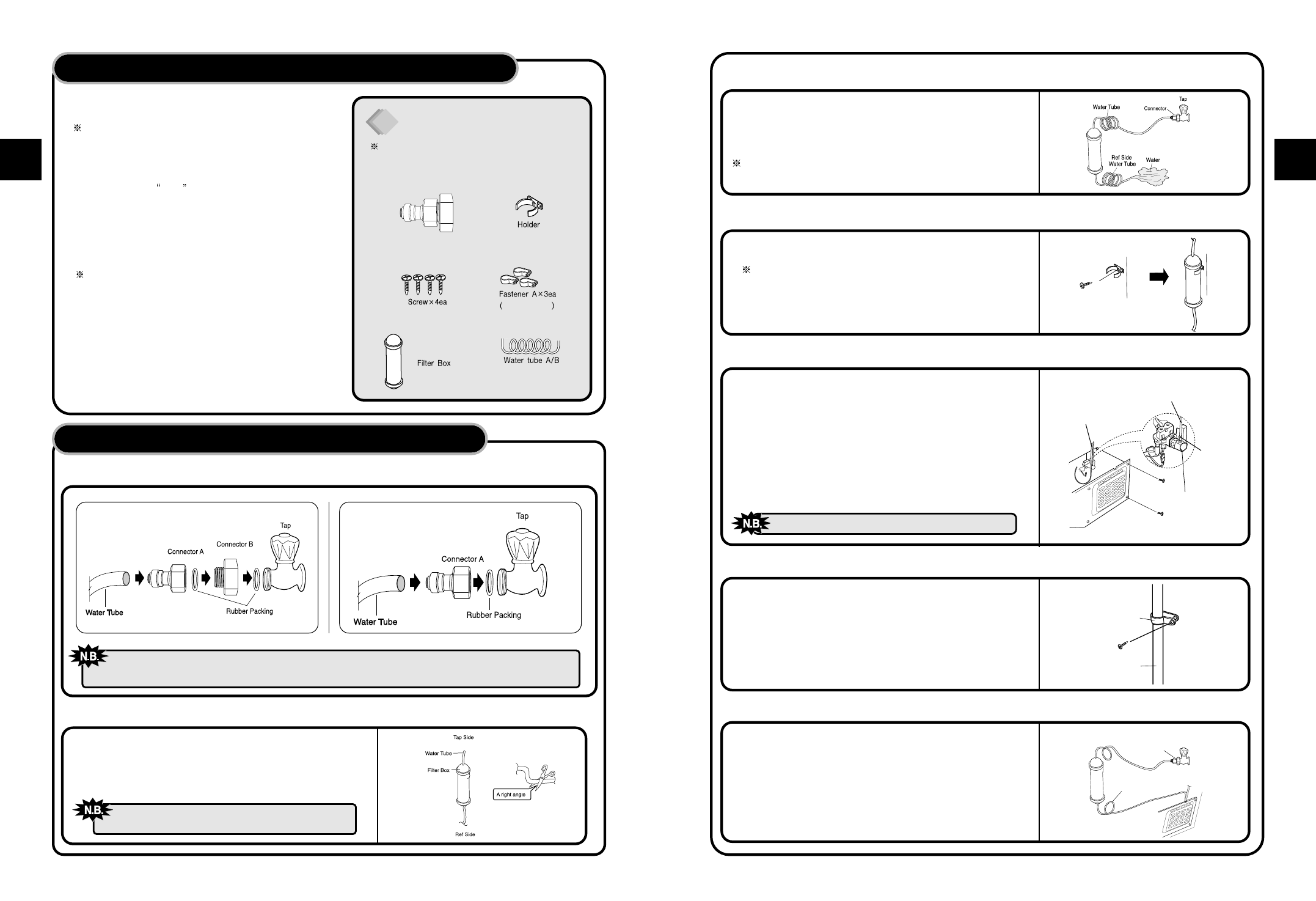

How to install Water Line

(Dispenser Models Only)

WATER SUPPLY KIT

1. The water pressure should be 2.0~12.5 kgf/cm

2

or more to run

the automatic icemaker.

Checkup your tap water pressure ; if a cup of 180cc is full
within 10 seconds, the pressure is OK.

2. When installing the water tubes, ensure they are not close to any

hot surfaces.

3. The water filter only  filters water ;  it does not eliminate any

bacteria or microbes.

4. If the water pressure is not so high to run the icemaker,  call the

local plumber to get an additional water pressure pump.

5. The filter life depends on the amount of use. We recommend

you replace the filter at least once every 6months.

When attaching the filter, place it for easy access (removing &
replacing)

6. After installation of refrigerator and water line system, select

[WATER] on your control panel and press it for 2~3 minutes to
supply water into the water tank and dispense water.

7. Use sealing tape to every connection of pipes/tubes to ensure

there is no water leak.

8. The water tube should be connected to the cold water line.

Check the parts below for installing water supply.
Some other necessary parts are available at your
local service agents.

Installation Procedure

(Dispenser Models Only)

1. Join Connector to the tap water line

3011202000

(3019974100)

(A:3019503200

B:3019503300)

(3012020700)

(7112401211)

Connector

(3014454520)

Place the rubber washer inside the tap connector and screw onto the water tap.

<Figure A>

<Figure B>
