PR167/1
D
B
t
P R 3 3 / 2
C
A

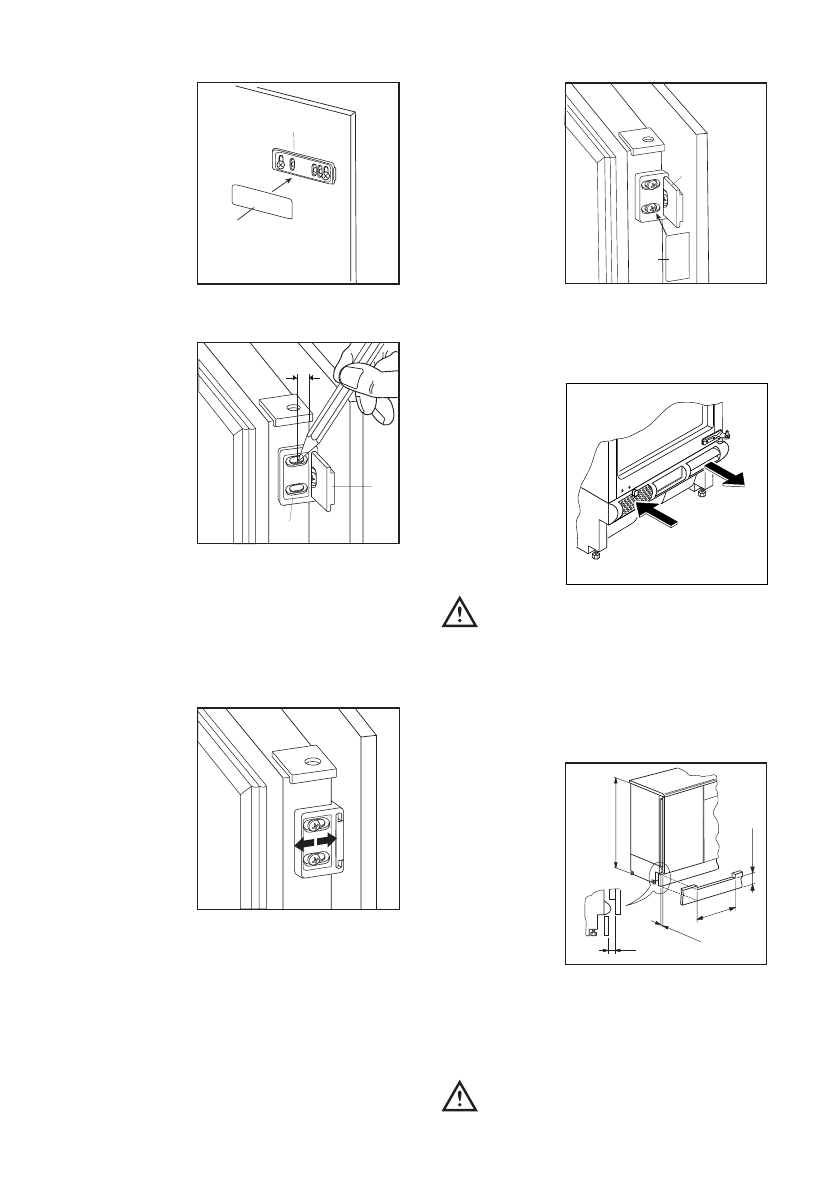

6. Push cover (C) into guide (A) until it clips into
place.
7. Open the appliance door and the furniture door at
90°. Insert the small square (B) into guide (A). Put
together the appliance door and the furniture door
and mark the holes as indicated in the figure.
Remove the squares and drill holes with Ø 2 mm at
8 mm from the outer edge of the door. Place the
small square on the guide again and fix it with the
screws supplied.
8mm
PR167
A
B
PR168
8. Should adjustment of the furniture door be
necessary, use the clearance of slots.
At the end of operations, it is necessary to check if
the door of the furniture closes properly.
9. Push cover (D) into guide (B) until it clips into
place.
Fitting the plinth
Important
For the efficient operation of the appliance,
it is important that the original ventilation
grid is used.
■
For an opening height dimension A=820 mm and a
plinth height dimension a=100 mm, the plinth may
be fitted without adjustments. The same applies to
an opening height dimension B=870 mm and a
plinth height dimension b=150 mm.
■
For plinth
heights greater
than a=100 mm, b=150 mm, a cut should be made
in the plinth, 580 mm wide, in the centre of the
appliance position, leaving a remaining height of
a=100 mm, b=150 mm.
■
Attach plinth to the kitchen units.
Important
The plinth must be positioned at a minimun
distance of 25 mm from the door.
S.I.007
S.I.008
580
a = 100
b = 150
25 - 80
A
= 820
B = 870
25
23
