English

1

MODEL: E57 (Cell starter Type)

Thank you for purchasing HITACHI Generator.
This supplementary Instruction manual has been prepared to introduce the operation for Cell starter type.
Please read and understand this supplementary together with the enclosed owner’s manual before operating
the machine.

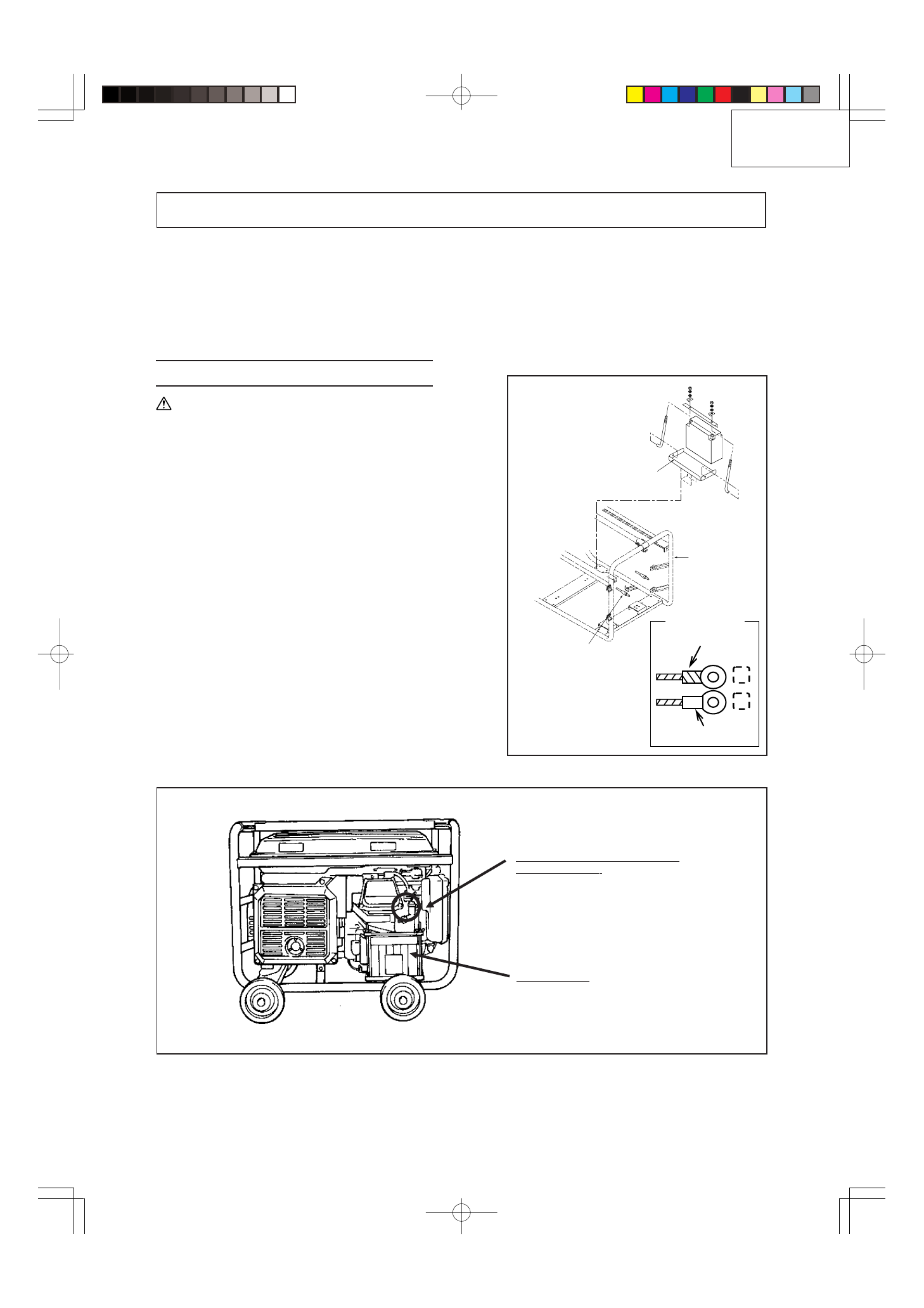

HOW TO INSTALL THE BATTERY

 CAUTION:

䢇

The battery shall be handled in the well ventilated

area avoiding fire or flammable material.

䢇

Special attention shall be paid to the battery fluid not

stuck to the eye or skin.

䢇

The temperature of the battery fluid shall be

maintained to 45˚C or less, because of prevention for
functional deterioration.

䢇

Be sure the battery is installed on the battery base

securely.

䢇

Clamp the wire of red sign to the positive (+) terminal

and the black wire to the negative (-) terminal on the
battery. Take care of the correct wiring.

NOTE: The battery base is assembled into the frame at

the factory.

SUPPLEMENTARY  INSTRUCTION  MANUAL

Red Sign

612

Code No.C99163691
Printed in Japan
Mfg.Code-KN55085AA

Recommended

battery specification:


䡲

12V, 12Ah

Battery Base

Frame

Wire Detail

Black sign (color)

Red sign (color)

The key for the engine switch is put
here at the factory.

Battery position
