9 ENGLISH

Model DTW284

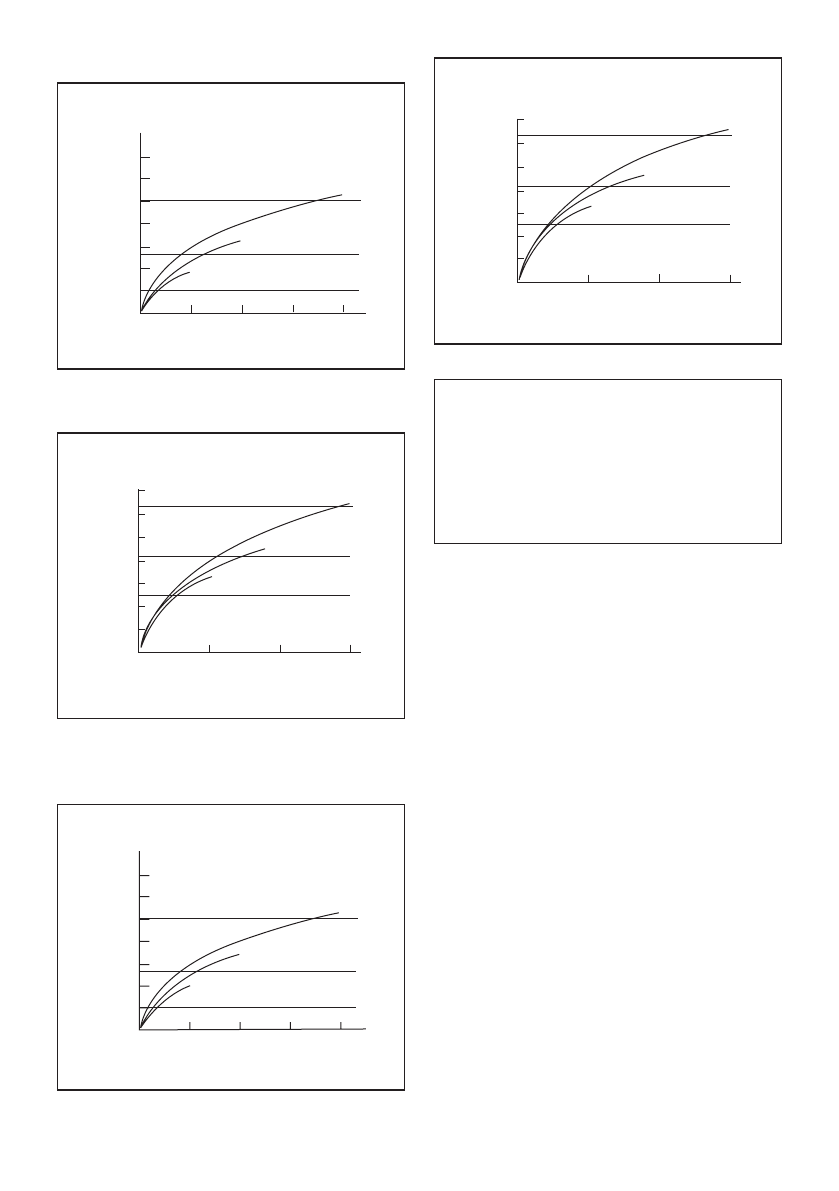

Proper fastening torque for standard bolt

0

M20

M16

M16

M20

M12

M12

1

2

280
240
200

160
120

80

40

1

2

N•m

1.

 Fastening time (second)

2.

 Fastening torque

Proper fastening torque for high tensile bolt

1

2

3

280

240

200

160
120

80

40

1

2

N•m

0

M12H

M14H

M16H

M12H

M14H

M16H

1.

 Fastening time (second)

2.

 Fastening torque

Model DTW285

Proper fastening torque for standard bolt

0

M20

M16

M16

M20

M12

M12

1

2

280
240
200

160

120

80

40

1

2

N•m

1.

 Fastening time (second)

2.

 Fastening torque

Proper fastening torque for high tensile bolt

0

160
120

80

40

200

2

3

1

M12H

280

240

M14H

M16H

M12H

M14H

M16H

1

2

N•m

1.

 Fastening time (second)

2.

 Fastening torque

NOTE:

 Hold the tool pointed straight at the bolt or nut.

NOTE:

 Excessive fastening torque may damage the

bolt/nut or impact socket. Before starting your job,

always perform a test operation to determine the

proper fastening time for your bolt or nut.

NOTE:

 If the tool is operated continuously until the

battery cartridge has discharged, allow the tool to rest

for 15 minutes before proceeding with a fresh battery

cartridge.

The fastening torque is affected by a wide variety of

factors including the following. After fastening, always

check the torque with a torque wrench.

1.  When the battery cartridge is discharged almost

completely, voltage will drop and the fastening

torque will be reduced.

2.

Impact socket

•

Failure to use the correct size impact socket

will cause a reduction in the fastening torque.

•

A worn impact socket (wear on the hex end

or square end) will cause a reduction in the

fastening torque.

3. Bolt

•

Even though the torque coefficient and the

class of bolt are the same, the proper fasten-

ing torque will differ according to the diame-

ter of bolt.

•

Even though the diameters of bolts are the

same, the proper fastening torque will differ

according to the torque coefficient, the class

of bolt and the bolt length.

4.  The use of the universal joint or the extension

bar somewhat reduces the fastening force of the

impact wrench. Compensate by fastening for a

longer period of time.

5.  The manner of holding the tool or the material

of driving position to be fastened will affect the

torque.

6.

Operating the tool at low speed will cause a reduc-

tion in the fastening torque.
